To run this test:
1. From the Diagnostics menu, navigate to:
Output Bin Tests >Feed Tests
2. Select the output bin into which you want the paper to exit. All installed output bins appear.
3. Select one of the following:
- Single—Feeds a single page.
- Continuous—Continuously feeds pages until X is pressed.
Sensor Test
This test verifies that the output bin sensors are working correctly.
To run this test:
1. From the Diagnostics menu, navigate to:
Output Bin Tests > Sensor Test > Standard Bin
Testing... appears while the printer is verifying the state of the sensor.
The control panel displays the current state of the sensor.
2. Manually actuate the sensor to make it toggle between empty and full. If the sensor does not
toggle, then the sensor is malfunctioning.
3. Press X to exit the test.

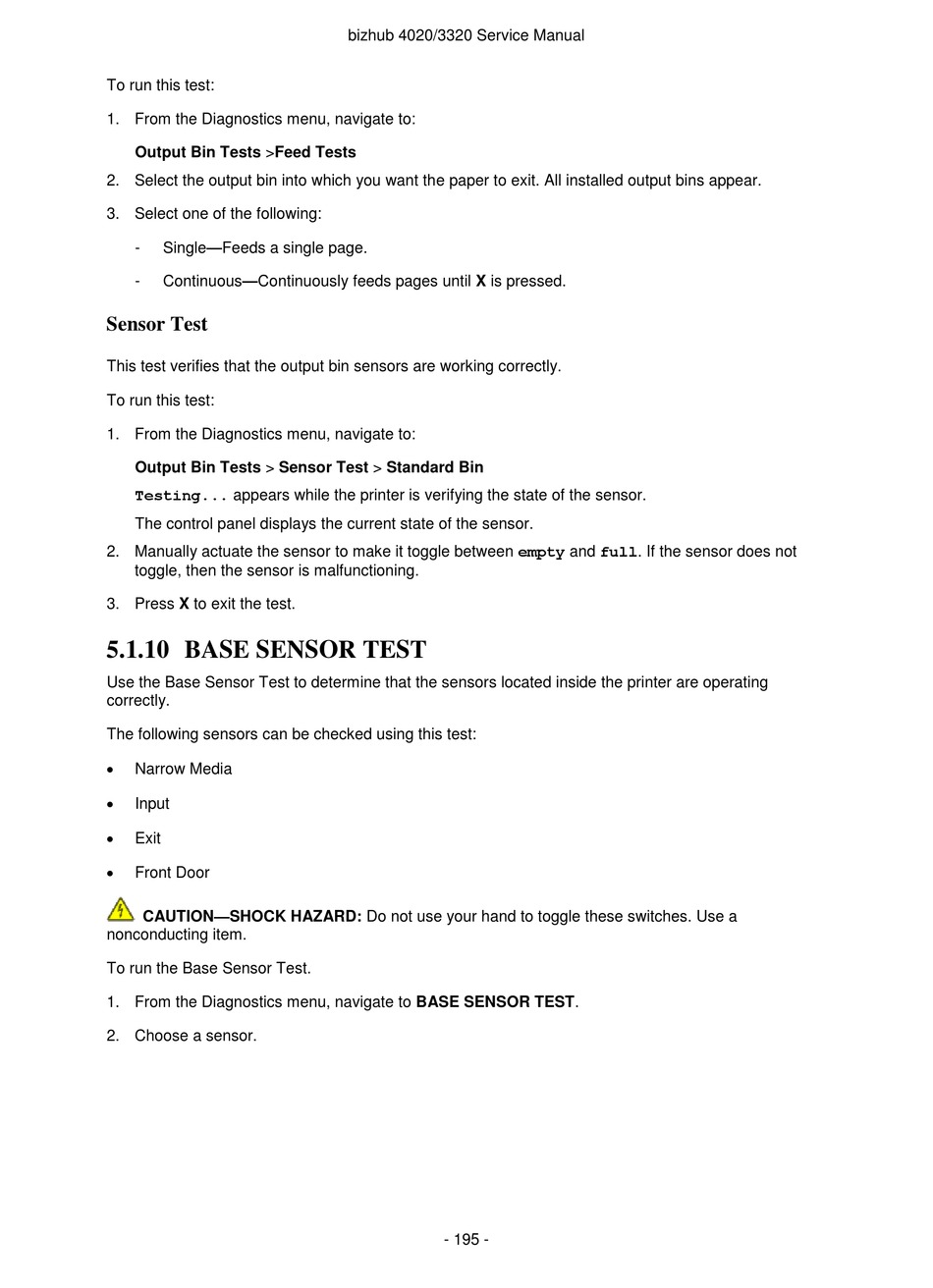

5.1.10 BASE SENSOR TEST

Use the Base Sensor Test to determine that the sensors located inside the printer are operating
correctly.
The following sensors can be checked using this test:

Narrow Media

Input

Exit

Front Door
CAUTION—SHOCK HAZARD: Do not use your hand to toggle these switches. Use a
nonconducting item.
To run the Base Sensor Test.
1. From the Diagnostics menu, navigate to BASE SENSOR TEST.
2. Choose a sensor.
