OptiBean /OptiBean XL

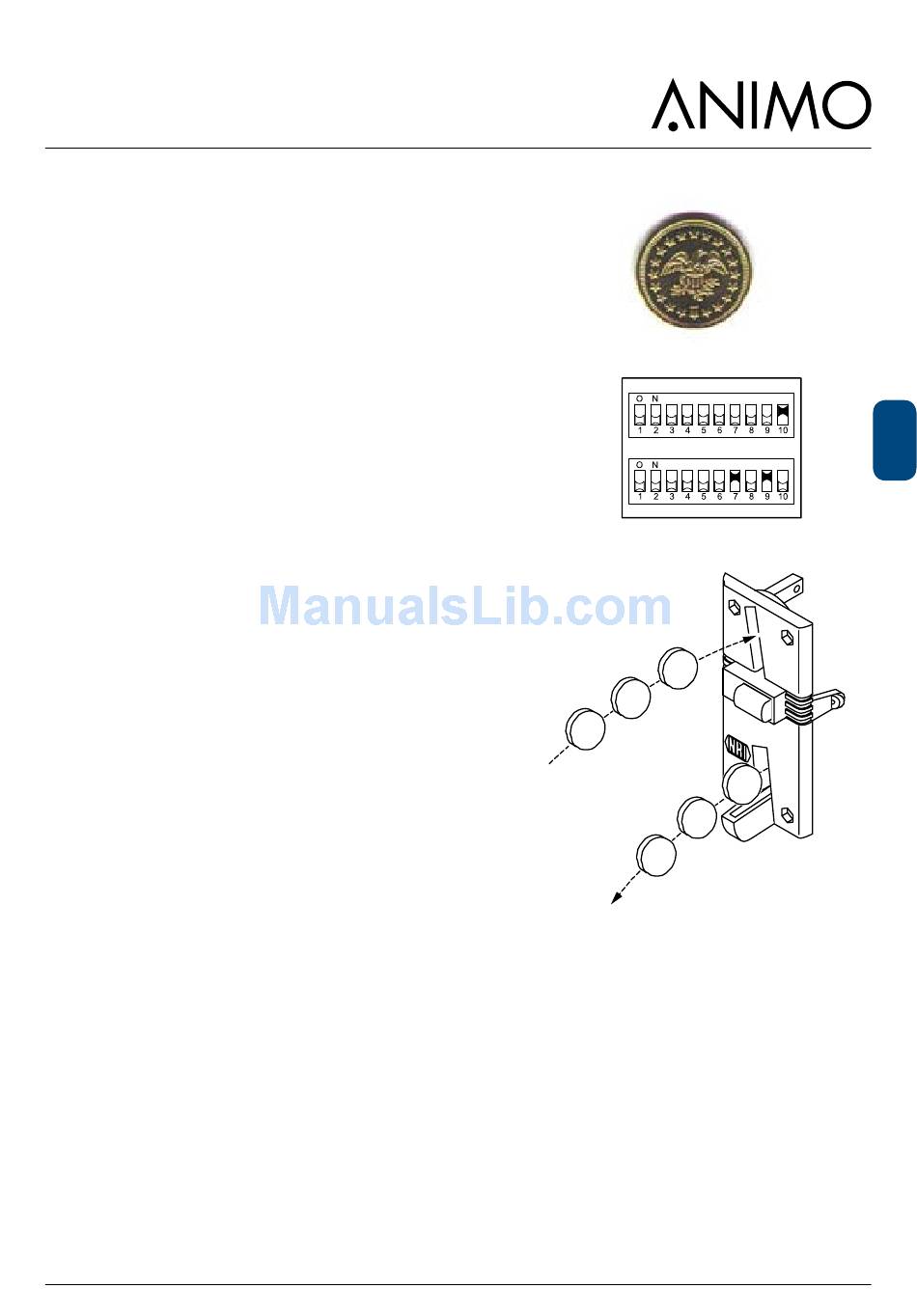

12.1.3 Activate existing token

The token shown opposite is already programmed as
standard in the coin mechanism.
Set the service menu as described in the following
section from step 4.
Art. No. token 03344
12.1.4 Programming a new token
● Required; 10 coffee coins
● Note; remember the DIL switch positions for any
blocked coins. Leave S1.10 set to ON
1. Set the following DIL switches on switch block S2
upwards to ON.
a) first set S2-9 Teach-mode (learn) to ON
b) then set S2-7 coin channel 6 (TM) to ON
2. Insert at least 10 tokens (not the same one 10
times). After inserting 10 coins, the blocking coil
(internal) activates once.
3. Complete the programming by setting DIL switch
S2-9 downwards to OFF. If the storage was
successful, the blocking coil activates once again.
The set S2-7 back to OFF. (To interrupt
programming, first set S2-7 and then S2-9 to OFF).
4. Service menu; change coin channel 6 (menu item
2.5 Payment system from €2.00 to TOKEN.
5. The token will now be accepted by the coin
mechanism as payment.
12.1.5 Accepting euros & tokens
Carry out Section 12.1.3 and 12.1.4 first.
● Open the service menu
● Set a price in menu 2.2 Button settings / Button
1-12) / Price (e.g. € 0.50)
● The recipe keys are released when sufficient euros
or a token is inserted!
12.1.6 Other currencies (no euros)
Are foreign currencies used, your coin system is
adapted. In the software the coin channels need
sometimes special attention! If a new software is loaded
the coin channel settings are euro's. See service menu
/ coin systems / G13 / Coin channel 1-6 .
2015/09 Rev. 1.2
S1
S2
10x
99
10x
EN
