Summary of Contents for Animo OptiVend HS DUO NG

  • Page 1 OptiVend HS DUO NG gebruiksaanwijzing betjeningsvejledning user manual brukerhåndbok betriebsanleitung användarmanual mode d’emploi käyttöohjekirja...

  • Page 2: Copyright

    This also applies to the corresponding diagrams and/or charts. Animo retains the right to alter parts at any given time without prior or immediate announcement to the consumer. The content of this manual can also be changed without any prior warning. This manual is valid for the standard model of the device.

  • Page 3: Table Of Contents

    OptiVend NG TABLE OF CONTENTS Copyright ..........................43 Safety ............................45 Important information ....................... 45 Warning signs ........................45 Intended use ........................46 Modifications ........................46 Safety devices ........................47 Safety precautions ......................48 Users ..........................50 Directives .......................... 51 Guarantee ........................

  • Page 4: Safety

    OptiVend NG Safety Important information This user manual is intended to help you operate this machine safely and effectively. This manual gives information about installation, operation and maintenance of the equipment. Make sure to read and understand the manual before use. It is your responsibility to operate this machine in accordance with all the safety instructions and procedures in this manual, and with all other safety procedures in your workplace.

  • Page 5: Intended Use

    WARNING Make sure the main switch and operating button are freely accessible. Animo is always willing to discuss improving the value of its machines to users by means of modifications or alterations. Refer to ’Further help and information’. 2016/02 Rev. 0.0...

  • Page 6: Safety Devices

    OptiVend NG Safety devices 1.5.1 Temperature safety device The temperature safety device turns off the heating element if the temperature is too high. It prevents the machine from boiling dry. The temperature safety device can be operated manually. Remove the cap (A). Press the reset button (B).

  • Page 7: Safety Precautions

    General safety precautions • Make sure that the environment around the machine is dry, clean and lit sufficiently well. • Keep away from moving parts. • Use Animo replacement parts only. • Use Animo recommended products only. 2016/02 Rev. 0.0...
  • Page 8 OptiVend NG 1.6.2 During installation • Place the machine in horizontal position at work top height on a firm and flat surface. • Keep sufficient space around the machine for ventilation. • Keep the front and back sides of the machine accessible for maintenance and repair purposes. •...

  • Page 9: Users

    If a separate supply cord is delivered with the machine, replace it by a new supply cord in order to avoid a hazard. Use Animo replacement parts only. If the machine is delivered with a fixed supply cord, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  • Page 10: Directives

    1.11 Further help and information Animo is committed to provide the highest level of support to users and operators of its products. Contact the dealer for information regarding settings, maintenance and repair work, which is not included in this document.

  • Page 11: Description

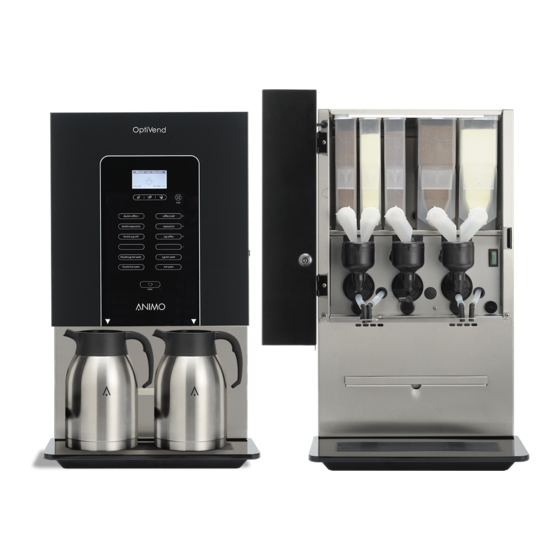

    OptiVend NG Description Overview 2.1.1 Front A: Control panel B: Outlet C: Cup tray D: Drip tray E: Door lock 2016/02 Rev. 0.0...
  • Page 12 OptiVend NG 2.1.2 Back A: Temperature safety device B: Fan C: Power cord D: Water connection 2016/02 Rev. 0.0...
  • Page 13 OptiVend NG 2.1.3 Inside A: Canisters B: On/off switch C: Mixer D: Outlet E: Cleaning instructions sticker F: Control panel 2016/02 Rev. 0.0...

  • Page 14: Working Principle

    OptiVend NG Working principle 2.2.1 Canisters The canisters (A) contain instant products. 2.2.2 Mixer The mixer (A) mixes the instant products with hot water and transfers the product to the outlet. 2016/02 Rev. 0.0...

  • Page 15: Specifications

    OptiVend NG 2.2.3 Outlet The outlet (A) transfers the product into the cup or jug. Specifications 2.3.1 Standard equipment OV TS HS DUO NG OV TL HS DUO NG Item Specification Machine dimensions 520 x 386 x 686 (d x b x h mm) 520 x 386 x 805 Weight: empty/full 23/33 kg...
  • Page 16 OptiVend NG 2.3.3 Capacities - Coffee OV TS HS DUO NG OV TL HS DUO NG Item Specification Hour capacity per cup of 120 ml 2x 450 cups Preparation time per cup of 120 ml 8 sec Preparation time per jug of 12 x 120 ml 63"...

  • Page 17: Display

    OptiVend NG 2.3.6 Type plate ANIMO ........../ ........... V 50-60Hz ....W M A D E I N H O L L A N D A: Model number B: Article number C: Supply voltage [V] D: Machine number...

  • Page 18: Configuration Menu

    OptiVend NG 2.4.2 Display icons Icon Name Description Rinsing The machine is rinsing. The machine must be rinsed. Boiler Heating The boiler is heating up. Boiler Filling The boiler is filling up. Drip Tray Full The drip tray is full. Error The machine generated an error.
  • Page 19 OptiVend NG 2.5.3 Time Screen Item Description 1.1.0 Time To set the time [hour:min] 1.1.1 Date To set the date [dd - mm - yyyy] 2.5.4 Switching times Screen Item Description 1.2.0 Mo-Fri To set the on and off time from Mondays until Fridays [hour:min] 00:00 = not active.

  • Page 20: Canister Configuration

    OptiVend NG 2.5.7 Software and hardware Screen Item Description 1.6.0 Software To show the software version. 1.6.1 Hardware To show the hardware version [main print/interface print. 2.5.8 PIN-code Screen Item Description PIN-code To enter the service menus. 2.5.9 Contrast Screen Item Description Contrast...

  • Page 21: Energy Safe Mode

    OptiVend NG Energy safe mode The machine in energy safe mode uses less energy. The recipe buttons are still active and the boiler cools down in steps of 5 °C. After choosing a recipe the machine needs some time to heat up the boiler. Example: Three set switching times 9.00 - 11.00...
  • Page 22 OptiVend NG Energy safe mode without switching times If the machine is switched on and there is no dispensing, the machine will be in energy safe mode after 30 min. The temperature of the boiler drops every 30 min. with 5 °C. If there is dispensing after 2 hours the machine is reactivated.

  • Page 23: Transport & Installation

    OptiVend NG Transport & Installation Transport 3.1.1 General When the machine and its additional equipment is delivered: • Check the machine for possible transport damage. • Make sure the delivery is complete. Refer to the sales and delivery conditions. Installation Caution •...
  • Page 24 OptiVend NG 3.2.3 Water connection Connect the machine (A) to a tap (B) with air valve. Open the tap and check for leakage. If necessary, connect the machine (A) with the hose (B) to the filter system (C) and connect the filter system with the hose (D) to a tap.
  • Page 25 OptiVend NG 3.2.4 Electrical connection Attach a suitable plug to the power cord, as advised by the dealer or service engineer. 1. Connect the yellow/green coloured core (A) to the terminal marked with ’E’, marked with the earth symbol or colored yellow/green. 2.
  • Page 26 OptiVend NG 3.2.7 Applying the ingredient stickers Open the machine door. Place the stickers as shown (A & B). See ’Canister configuration’ for the order of canisters. 3.2.8 Setting the software for first use Open the machine door. Press the configuration menu button (A). Use the recipe buttons (B) to navigate through the menu.
  • Page 27 OptiVend NG 3.2.9 Using the machine for the first time Plug the machine into an earthed socket. Switch on the machine and follow the instructions on the display. Place a bowl (min. 1.5 l) under the outlet. Select a recipe and press the start dispensing button. Check whether the taste and quantity is as desired.

  • Page 28: Operation

    OptiVend NG Operation WARNING • Inspect the machine for damage before use. • Do not submerge or hose down the machine. • Do not use sharp objects to operate the buttons. • Keep the operating controls free of dirt. • Unplug the machine and unplug the water supply when the machine is not used for a longer period of time.

  • Page 29: Overview Control Panel (Inside)

    OptiVend NG Overview control panel (inside) A: Standby B: Configuration C: Rinsing button D: Counters Opening the door Place the key in the door lock (A). Turn the key and open the machine door. 2016/02 Rev. 0.0...

  • Page 30: Switching On And Off

    OptiVend NG Switching on and off Open the machine door. Press the on/off switch (A) to switch the machine on or off. Start dispensing cups Make sure that the cup tray (A) is pulled out. Place the cup(s) (B) on the cup tray under the outlet(s). Press a recipe selection.

  • Page 31: Stop Dispensing Cups Or Jugs

    OptiVend NG Stop dispensing cups or jugs Press the stop button. Caution Do not pull away a cup or jug. A running cycle will still have to be finished first. Filling the instant canisters See ’Canister configuration’ for the order of canisters. Open the machine door.

  • Page 32: Using The Coin Mechanism (Optional)

    OptiVend NG Using the coin mechanism (optional) Place a cup on the cup tray under the correct outlet. Press a recipe selection. Insert the correct amount of money (A). The dispensing LED starts to flash if sufficient money is inserted. If required, press the strength button to set the strength.

  • Page 33: Maintenance

    Maintenance Cleaning and disinfecting detergents WARNING • Do not use other chemicals unless it is approved by Animo. • Do not put the machine parts in a dishwasher except for the instant canister. • Dry the canister thoroughly before replacing it.
  • Page 34 OptiVend NG 5.2.5 Cleaning the exterior and interior Clean the exterior and interior with a damp cloth. 5.2.6 Cleaning/Emptying the drip trays Remove the drip tray (A) under the machine. If required, remove the drip tray hose. If required, clean the drip tray. If required, replace the drip tray hose.
  • Page 35 OptiVend NG 12 Replace the mounting ring and turn it clockwise to lock the ring into place. 13 Replace the mixer fan. Make sure that the mixer fan locks into place. 14 Replace the mixer housing. 15 Turn the mounting ring clockwise to lock the mixer into place. 16 Replace the outlet hose.
  • Page 36 OptiVend NG Clean the instant canister and its parts. Dry the parts thoroughly. Replace the cover. Replace the canister into the socket. Turn the canister’s outlet (A) downwards. 10 Make sure the canister locks into place with the pin in the hole.

  • Page 37: Troubleshooting

    OptiVend NG Troubleshooting Error messages Problem Possible cause Correction E1 Level error Sensor level problem. Contact the dealer or service engineer. E2 Level error Boiler is filling up too slowly. Check the water pressure. Turn There is no water pressure or the the water supply tap completely water tank is empty.

  • Page 38: Display Messages

    OptiVend NG Problem Possible cause Correction E11 Ingr. m. error Ingredient motor overload/stuck. Clean the canisters. Refer to Ingredient motor outlet overload. 5.2.8. The prime mover of one of the out- Switch the machine off and on lets is not running smoothly. again.
  • Page 39 OptiVend NG Problem Possible cause Correction Out of order boiler filling Boiler is not filling up or is filling up Check the water pressure. Turn too slowly. After 60 seconds the the water supply tap completely display will show "E3 Fill error". open.

  • Page 40: Malfunctions

    OptiVend NG Malfunctions Problem Possible cause Correction The machine does not work. Broken fuse. Check the fuses. The machine is switched off. Switch on the machine. Broken cable. Check the power cable. The machine does not The machine is in stand-by. Switch off the stand-by mode.
  • Page 41 OptiVend NG 2016/02 Rev. 0.0...
  • Page 42 OptiVend NG 2016/02 Rev. 0.0...
  • Page 43 OptiVend NG 2016/02 Rev. 0.0...
  • Page 44 Animo B.V. Dr. A. F. Philipsweg 47 P.O. Box 71 9400 AB Assen The Netherlands Tel: +31 (0) 592 376376 Fax: +31 (0) 592 341751 E-mail: info@animo.nl www.animo.eu 2016/02 Rev. 0.0 1005328...
