OptiBean /OptiBean XL

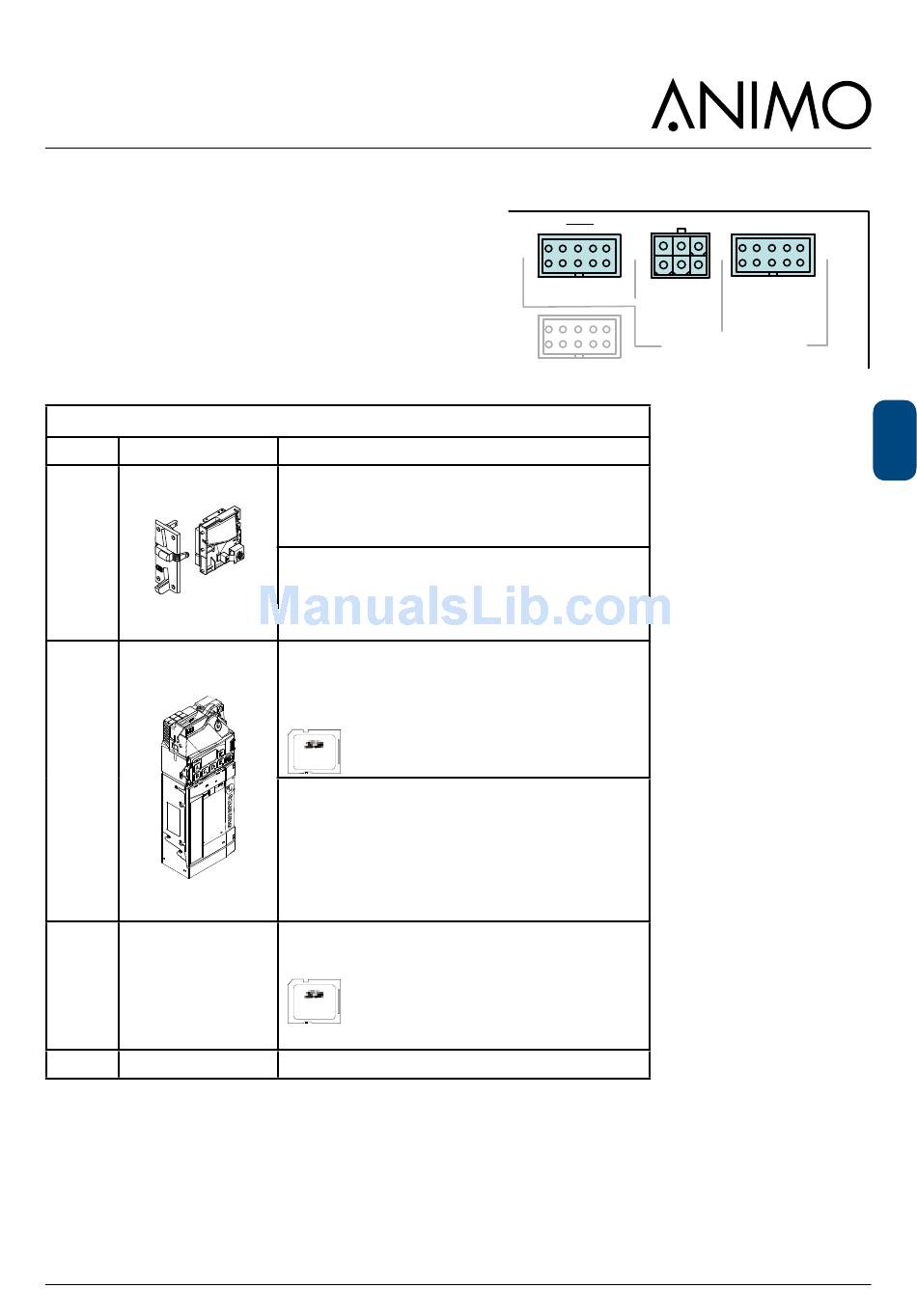

9.1.3 Main circuit board communication

The machine has standardized vending machine con-
nections for connecting coin mechanism, coin changer
or cashless payment systems.
These connectors meet the MDB protocol for vending
machines.
For further information or advice please contact our
support department.
Communication
Conn Protocol
G13 Parallel interface
art. no. 04025 03267
MDB Serial interface
MDB (Multi Drop Bus)
art. no. 03433
RS232-2 Serieel interface
DEX UCS
new from sept 2015
RS232
2015/09 Rev. 1.2
Notes
- Coin acceptor NRI G13
- External release contact*
*the machine can be released by using a potential-free
contact (pulse).
- G13 Kabel 1 meter art. no. 03392
- Extern vrijgave contact; kabel 1004237
- Coin changer NRI C
2
- Cashless payment system
- Telemetry EVA DTS (SD card needed)
Memory Card
Memory Card
- MDB cable 1 meter art. no. 03479
- MDB cable 1 meter art. no. 1004564 (2x male connector)
- MDB Y-kabel art.no. 1002008
- Telemetry EVA DTS / DEX UCS (SD card needed)
Memory Card
Memory Card
not used
CSI
RS232-2
RS232
85
MDB G13
COMMUNICATION
EN
