3.7.1 Dispensing valves

The dispensing valves [2] used in the OptiBean are all the same and are so called 3-way valves.
Brewer valve DV1, mixer valve DV2 and hot water valve DV4 are used as N.C. valve (Normally
Closed). The connection P [2.1] is connected to the pressurised side. At a de-energized valve, outlet A
[2.7] is in open connection with the outlet R [2.2], so the tubes towards the mixer and hotwater outlet
always runs empty. During a drink selection one of the dispensing valves [DV] is ACTIVATED and
opens. Outlet R [2.2] closes and pressurised water flow from connection P to A.
The (expansion) dispensing valve DV6 is build-in as a N.O. valve (Normally Open). Connection A [2.7]
is connected to the pressurised side. Expansion water from the boiler can escape from connection R
[2.2]. The valve DV6 will be closed when a coffee (10 bar) is made.

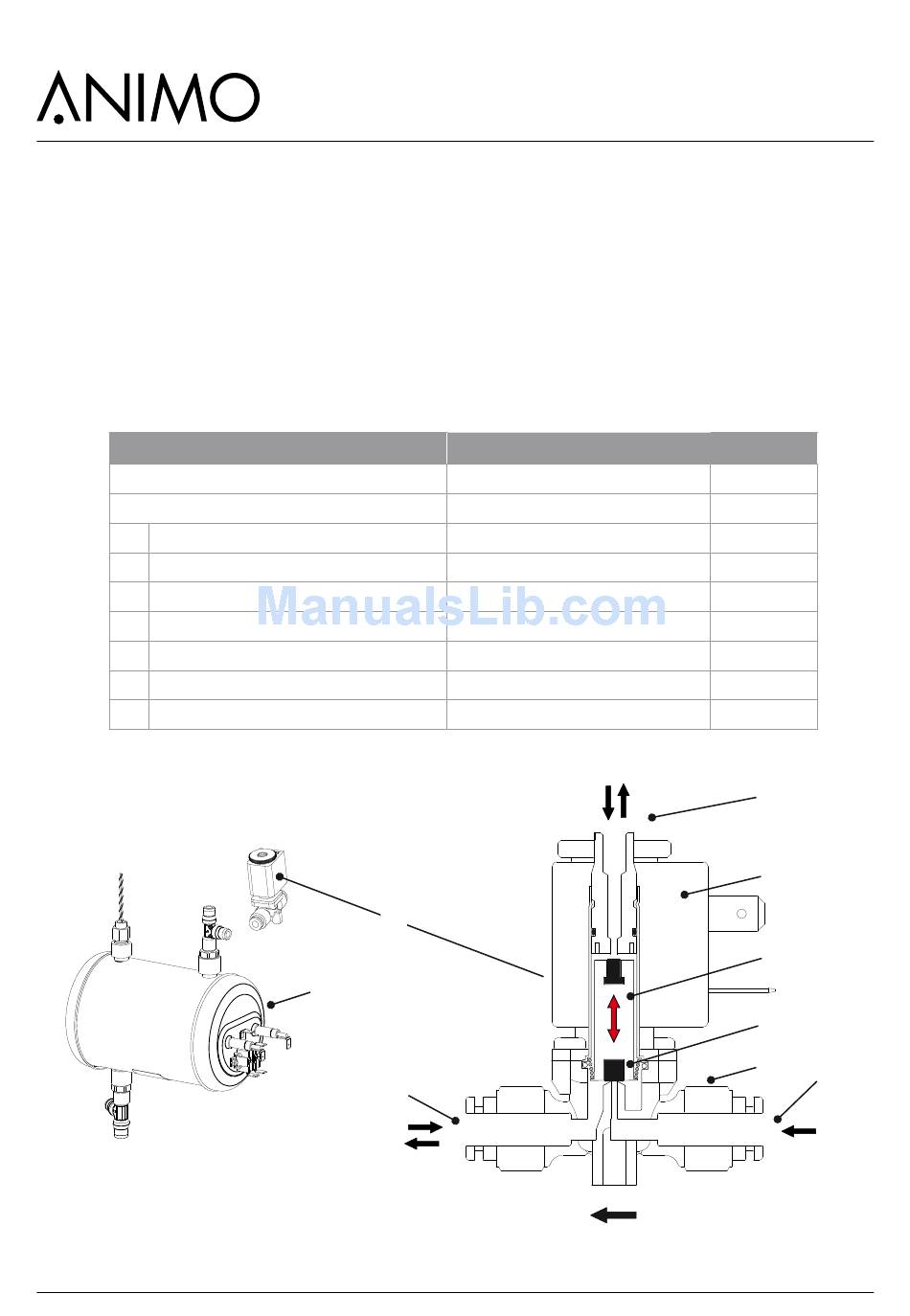

Major parts
1. Boiler system
2. Dispensing valve 12 bar (3-2 way)
2.1 Inlet
2.2 Aeration (R)
2.3 Coil
2.4 Plunger
2.5 Seal
2.6 Body
2.7 Outlet
Printed-on black arrow: Flow in direction of the arrow on the valve body
White arrow: Flow against the arrow on the valve body
(P)
(A)
2
1
2.1
A
42
OptiBean /OptiBean XL
Technical data
1,1 Litre
art.no. 1000699
Ø 6mm push fit
M5
24Vdc - 8,3W - 100% ED
DN 1,5 (Diameter Nominal)
Ø 6mm push fit
R
Material
AISI 316
St.St.
EPDM
PPSU
VMQ
2.2
2.3
2.4
2.5
2.6
2.7
P
2015/09 Rev. 1.2
