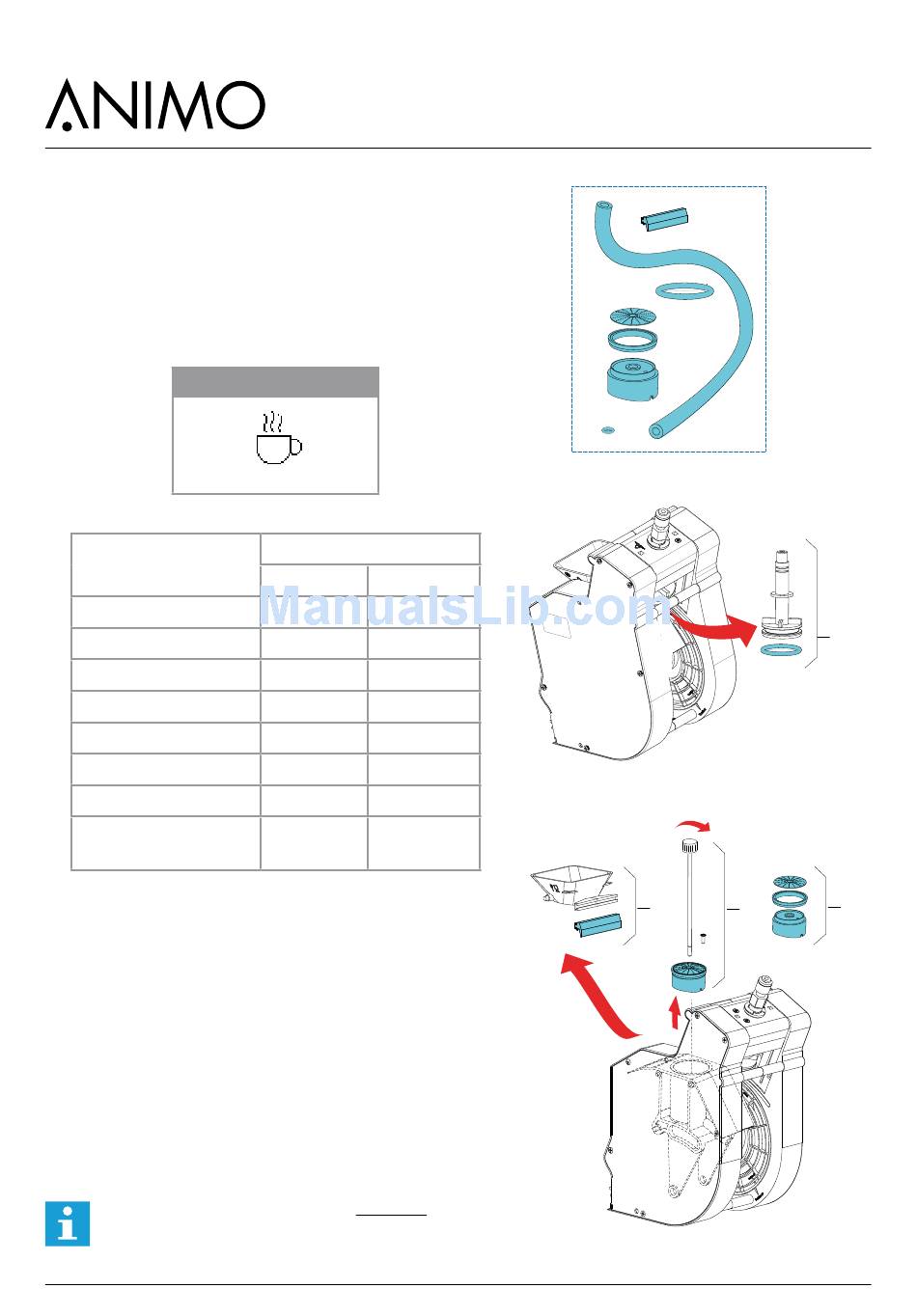

6.6 Maintenance espresso group
6.6.1 Brewer replacement kit 25K
-
After 25,000 cycles the filters and seals must be
replaced. The display shows [ Service brewer ].
Service brewer
Brewer

replacement kit 25K

Art. No.
O-ring big
Wiper
Filter 150 µm
Teflon ring
Lower piston *
O-ring small
Dispensing hose
370mm
-
After 50,000 cycles a complete inspection of the
espresso group is recommended and any worn parts
must be replaced.
1. Re-place the O-ring [1] onto the upper piston
(leave the piston in place).
2. Remove the funnel [2] by pulling it backward from
the housing, place a new wiper.
3. Unscrew the brewer filter with a small croshead
screw driver. Use the brewer fixation pin (as a
corkscrew) to pull out the lower piston.
4. Wait until point 8 before place a new lower piston,
new Teflon ring and new Filter [4] .
*only the replacement kit for the standard brewer
has a new lower piston!
Place cup
Brewer
Standard
1001395
1002561
1x
1x
1x
1x
1x
1x
1x
XL
1x
1x
1x
1x
-
1x
1x
76
OptiBean /OptiBean XL
*
2
3
2015/09 Rev. 1.2
1
4
*
