5.3.3 How to activate a existing token

The following tokens pictured on the right (fig 20) are
already programmed in the coin mechanism.
Set the service menu as written in chapter below, starting
from point 4.

5.3.4 How to programming a new token

• Required: 10 tokens.
• Attention: remember the DIL switch settings of any
blocked coins. Keep DIL switch S1-10 ON!
1. Switch the following DIL switches on switch
block S2 to the ON position. (fig. 21.
a) first set S2-9 Teach mode to the ON position
b) secondly set S2-7 coin channel 6 to the ON
position.
2. Insert at least 10 tokens (fig. 22) (not 10x the same
coin). After the 10 coins have been inserted the
blocker coil pulls tight (internally).
3. End the programming by pushing DIL switch S2-9
down to the OFF position. If saving was successful the
blocker coil will pull tight again. Secondly push DIL
switch S2-7 down to the OFF position.
(To end programming move S2-7 and then S2-9 to the
OFF position).
4. Service menu; Change coin channel 6 (menu item
2.5 payment system) from € 2.00 into
"TOKEN" (fig. 23).
5. The tokens are now accepted as payment by the coin
mechanism.
service enclosure 36

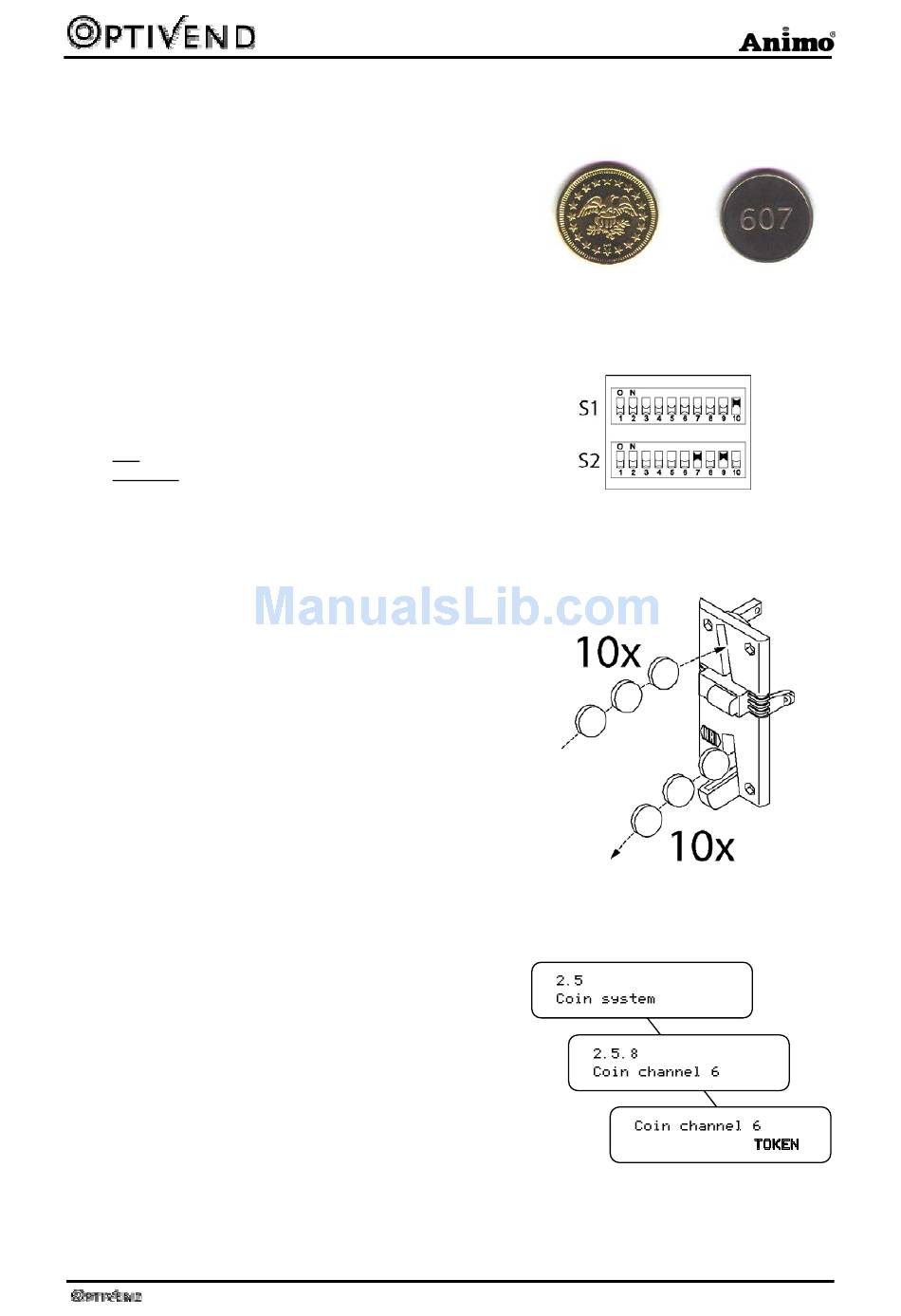

Fig. 20
