Animo OptiBean Service Book page 83

OptiBean /OptiBean XL

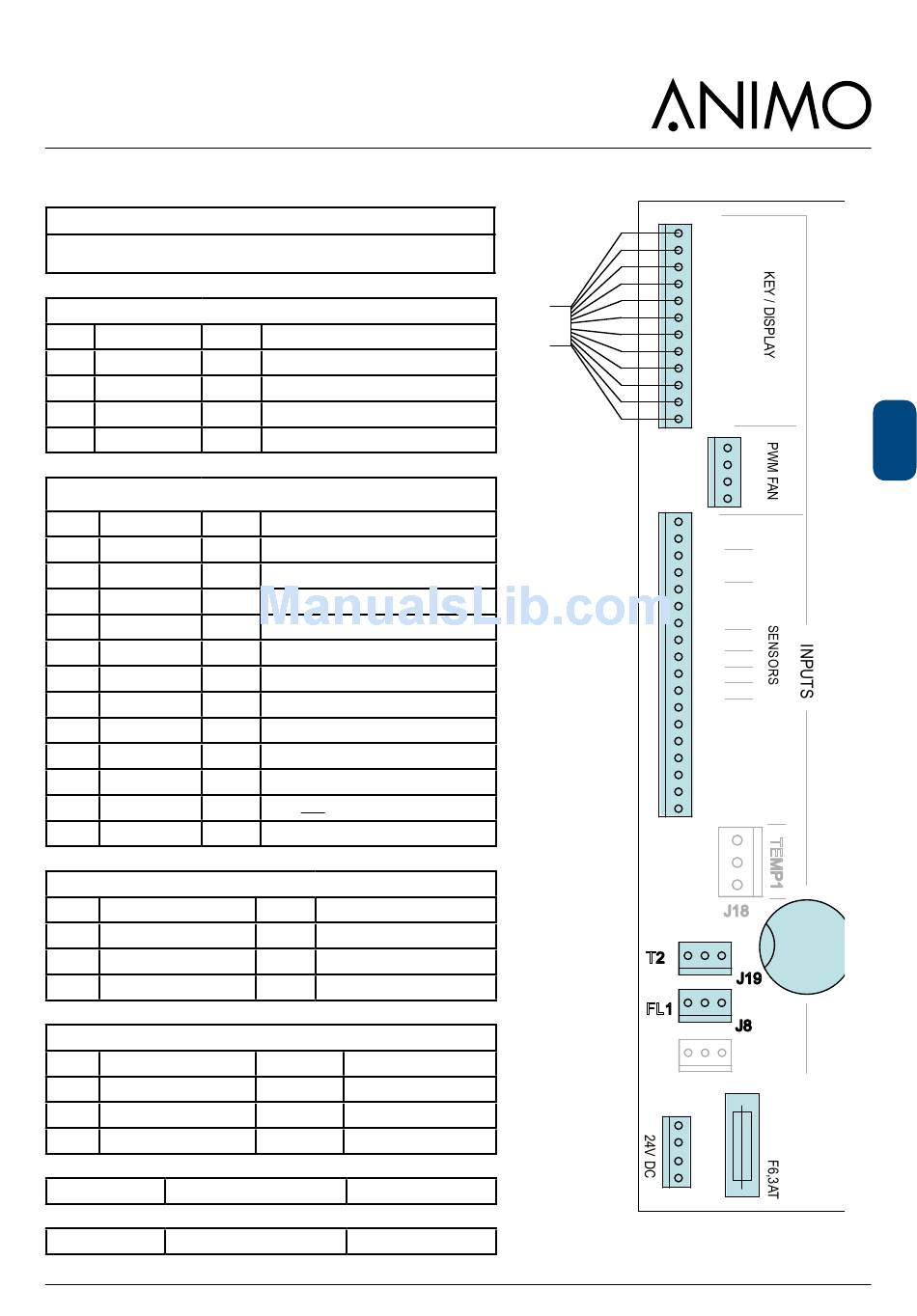

9.1.1 Main circuit board inputs
Connector J12
Connecting cable between the main circuit board and the door circuit
board
Connector J250 (PWM fan)
Pin Fan Colour
1 PWM signal black
2 -
3 pos red
4 neg blue
Connector J7 (Inputs)
Pin sensor Colour
1-2 - -
3 LB Drip tray Yellow
4 GND Drip tray Black
5-8 - -
9 AS waste bin Pink
10 - -
11 DS Door 1 Orange Door closed; contact closed
12-13 - -
14 IN1 Brewer 1 Blue
15 IN2 Brewer 2 Grey
16 IN3 Door 2 Pink
17-18 - -
Connector J19 / T2 ( NTC sensor)
Pin sensor
1 NTC sensor
2 -
3 NTC sensor
Connector J8 / FL1 (Flow meter)
Pin sensor
1 Pulse
2 Ground
3 Pluse
Battery B1
Lithium 3V Type CR2032
Fuse F3
6.3 A slow blow
2015/09 Rev. 1.2
Notes
Notes
Waste bin in position; contact closed
Brewer in fill position; contact 'open'
Brewer in fill position; contact 'open'
Door lock locked; contact closed
Colour Notes
Violet
-
Violet
Colour Notes
brown
earth shield
white
art.no. 02816
art.no. 03391
FL2
83
1
J12
2
3
4
5
6
7
8
9
10
11
12
1
2
3
J250
4
1
+5V
2
GND
3
LB
4 GND
5
LSL
6 GND
LSH
7
8
GND
9
AS
10
BS
11
DS
12
13
14
15
16
17
18
J7
+
BATT
J9
F3
1
2
3
4
J1
EN
