OptiBean /OptiBean XL

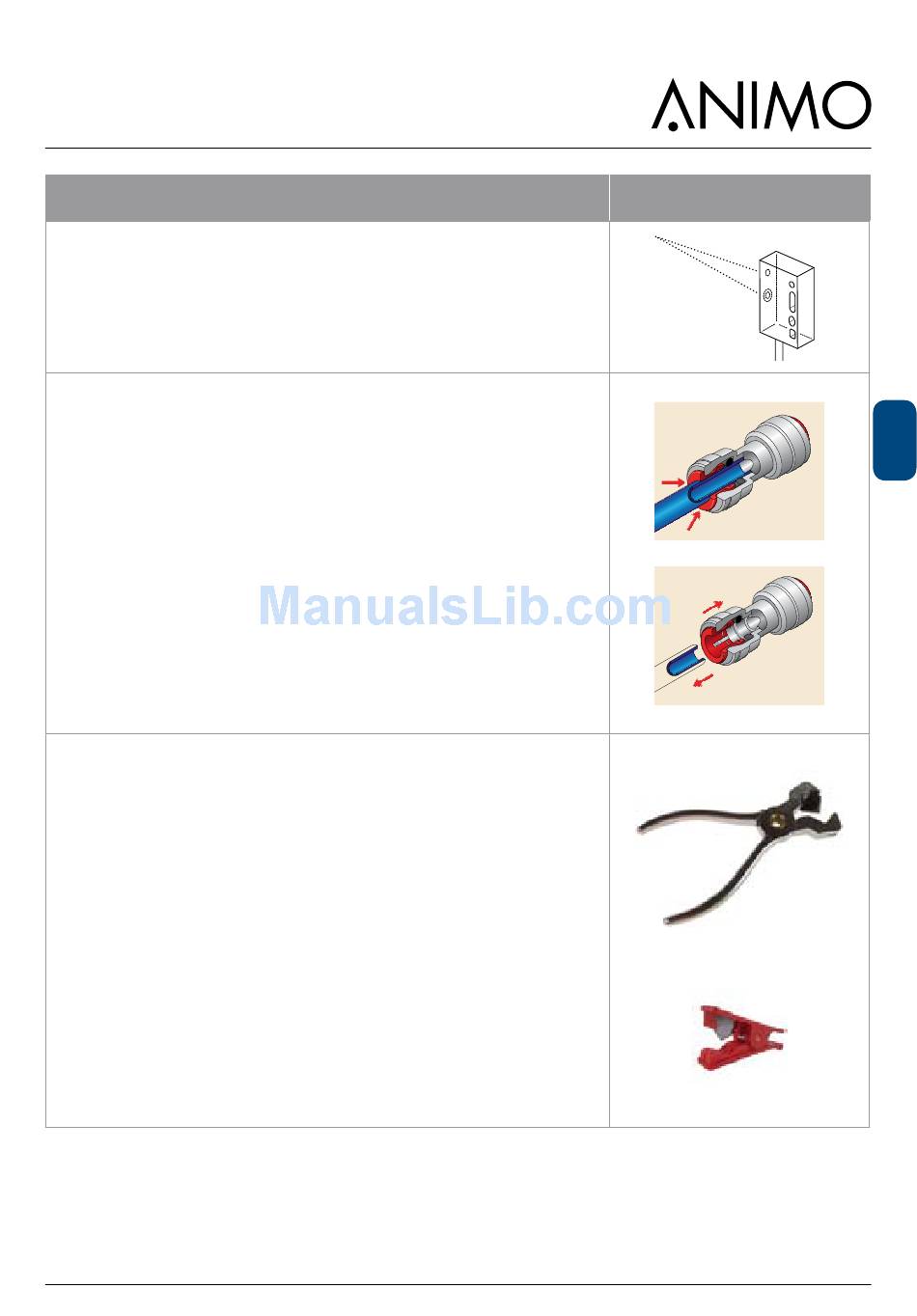

Component Image
Cup detection sensor [1003231]
Reflection infrared sensor. This sensor can optionally build in the
machine door. This sensor checks whether there is a cup / mug
positioned under the (correct) spout.
See chapter 3.3 Cup detection for operation.
EN
Quick release coupling
In this machine various components are used that have quick
A
release couplings.
To remove the Teflon hose from this connection, the outer ring [A]
must be pushed in first to release the hose [B].
This outer ring does not have to be pushed in when inserting the
hose.
B
Telfon® pressure hose
High quality Teflon pressure hose is used in this machine.
Never shorten this hose with side cutters. This will deform the
hose and when it is inserted into the quick release connection it
can damage the internal o-ring, resulting in leaks.
Always shorten a new hose using the special cutting tool (see the
illustration) or cut through it with a sharp knife without exerting too
much pressure on the hose.
