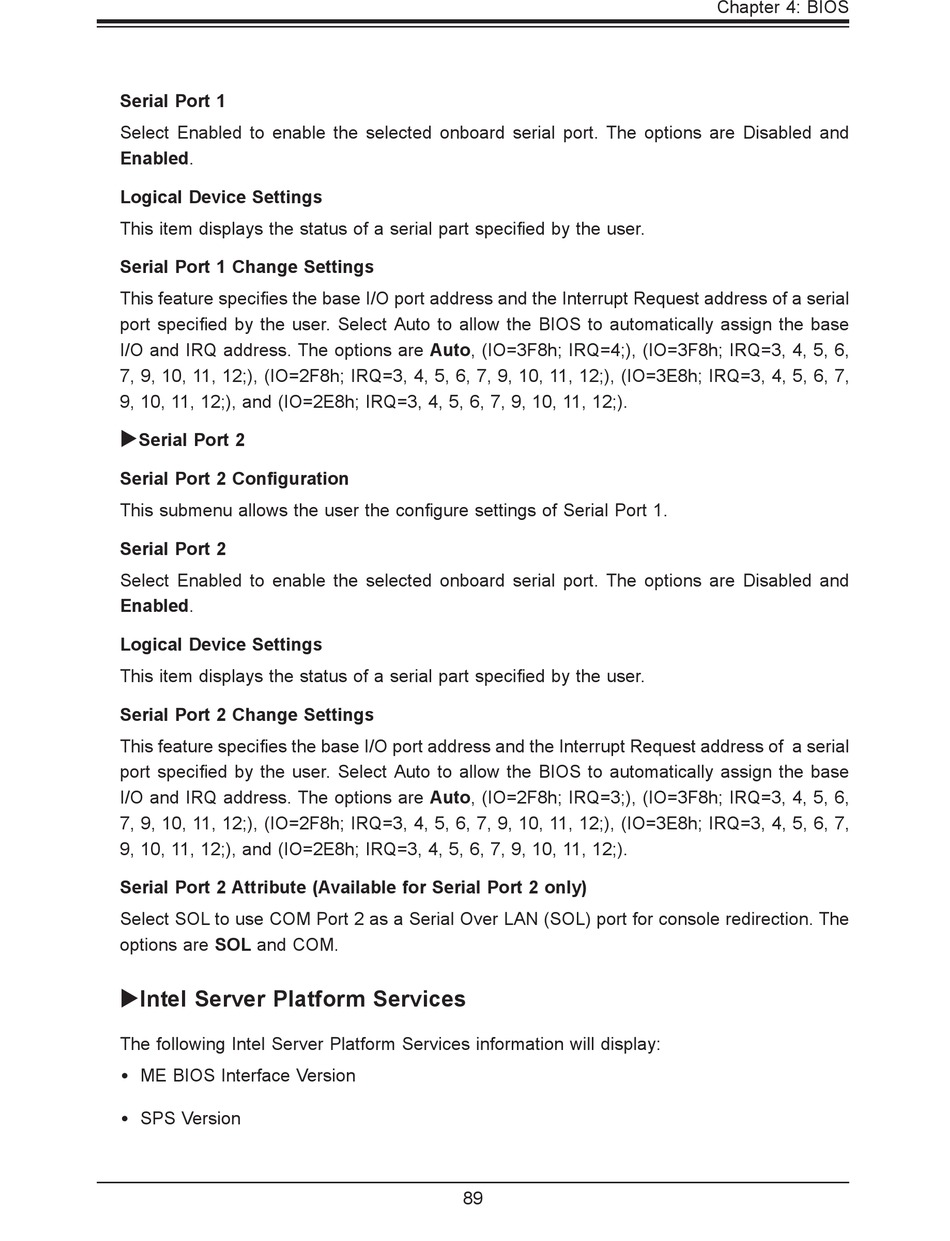

Serial Port 1
Select Enabled to enable the selected onboard serial port. The options are Disabled and
Enabled.
Logical Device Settings
This item displays the status of a serial part specified by the user.
Serial Port 1 Change Settings
This feature specifies the base I/O port address and the Interrupt Request address of a serial
port specified by the user. Select Auto to allow the BIOS to automatically assign the base
I/O and IRQ address. The options are Auto, (IO=3F8h; IRQ=4;), (IO=3F8h; IRQ=3, 4, 5, 6,
7, 9, 10, 11, 12;), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=3E8h; IRQ=3, 4, 5, 6, 7,
9, 10, 11, 12;), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).
Serial Port 2
Serial Port 2 Configuration
This submenu allows the user the configure settings of Serial Port 1.
Serial Port 2
Select Enabled to enable the selected onboard serial port. The options are Disabled and
Enabled.
Logical Device Settings
This item displays the status of a serial part specified by the user.
Serial Port 2 Change Settings
This feature specifies the base I/O port address and the Interrupt Request address of a serial
port specified by the user. Select Auto to allow the BIOS to automatically assign the base
I/O and IRQ address. The options are Auto, (IO=2F8h; IRQ=3;), (IO=3F8h; IRQ=3, 4, 5, 6,
7, 9, 10, 11, 12;), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=3E8h; IRQ=3, 4, 5, 6, 7,
9, 10, 11, 12;), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).
Serial Port 2 Attribute (Available for Serial Port 2 only)
Select SOL to use COM Port 2 as a Serial Over LAN (SOL) port for console redirection. The
options are SOL and COM.
Intel Server Platform Services
The following Intel Server Platform Services information will display:
ME BIOS Interface Version
SPS Version
89
Chapter 4: BIOS
