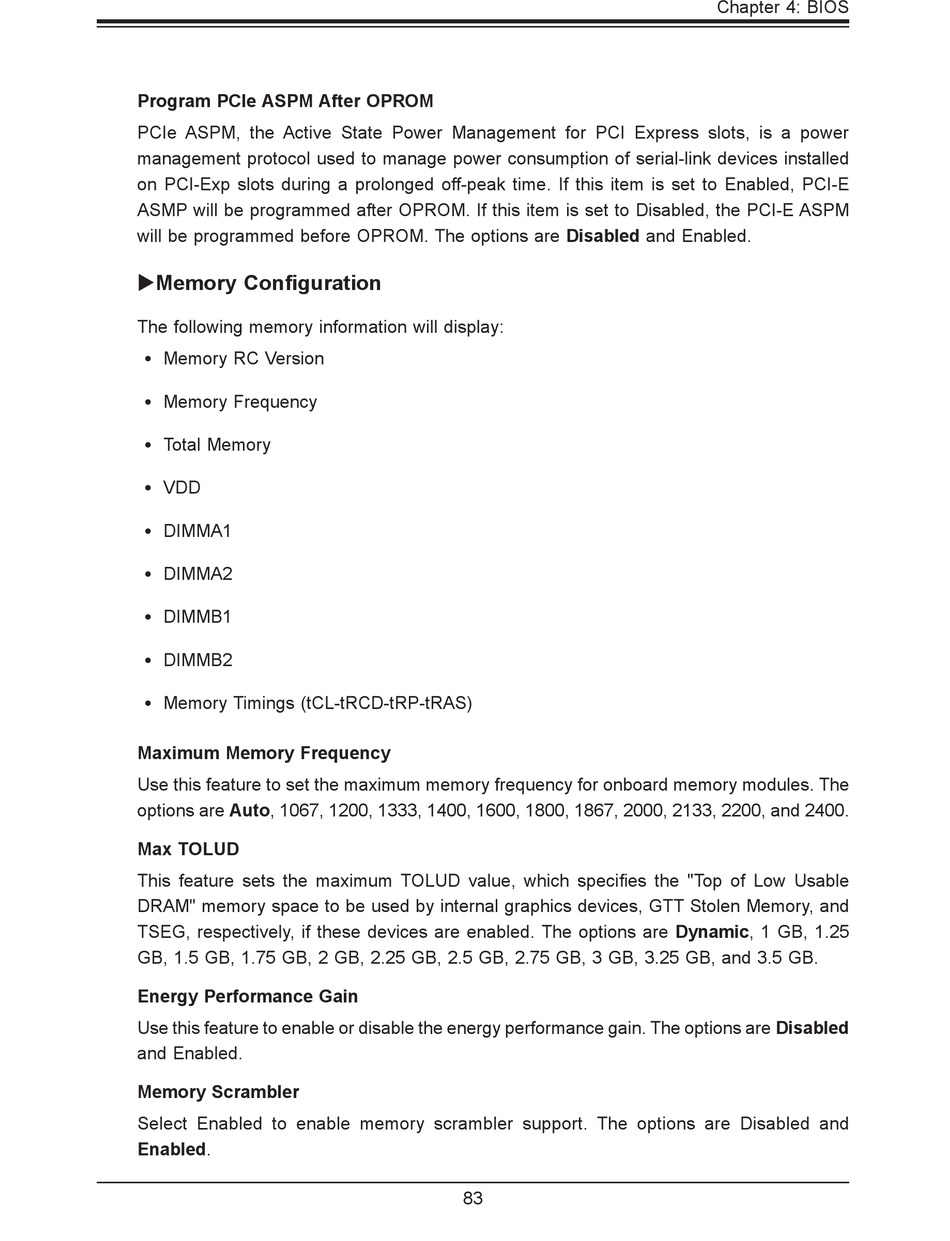

Program PCIe ASPM After OPROM
PCIe ASPM, the Active State Power Management for PCI Express slots, is a power
management protocol used to manage power consumption of serial-link devices installed
on PCI-Exp slots during a prolonged off-peak time. If this item is set to Enabled, PCI-E
ASMP will be programmed after OPROM. If this item is set to Disabled, the PCI-E ASPM
will be programmed before OPROM. The options are Disabled and Enabled.
Memory Configuration
The following memory information will display:
•
Memory RC Version
•
Memory Frequency
•
Total Memory
•
VDD
•
DIMMA1
•
DIMMA2
•
DIMMB1
•
DIMMB2
•
Memory Timings (tCL-tRCD-tRP-tRAS)
Maximum Memory Frequency
Use this feature to set the maximum memory frequency for onboard memory modules. The
options are Auto, 1067, 1200, 1333, 1400, 1600, 1800, 1867, 2000, 2133, 2200, and 2400.
Max TOLUD
This feature sets the maximum TOLUD value, which specifies the "Top of Low Usable
DRAM" memory space to be used by internal graphics devices, GTT Stolen Memory, and
TSEG, respectively, if these devices are enabled. The options are Dynamic, 1 GB, 1.25
GB, 1.5 GB, 1.75 GB, 2 GB, 2.25 GB, 2.5 GB, 2.75 GB, 3 GB, 3.25 GB, and 3.5 GB.
Energy Performance Gain
Use this feature to enable or disable the energy performance gain. The options are Disabled
and Enabled.
Memory Scrambler
Select Enabled to enable memory scrambler support. The options are Disabled and
Enabled.
