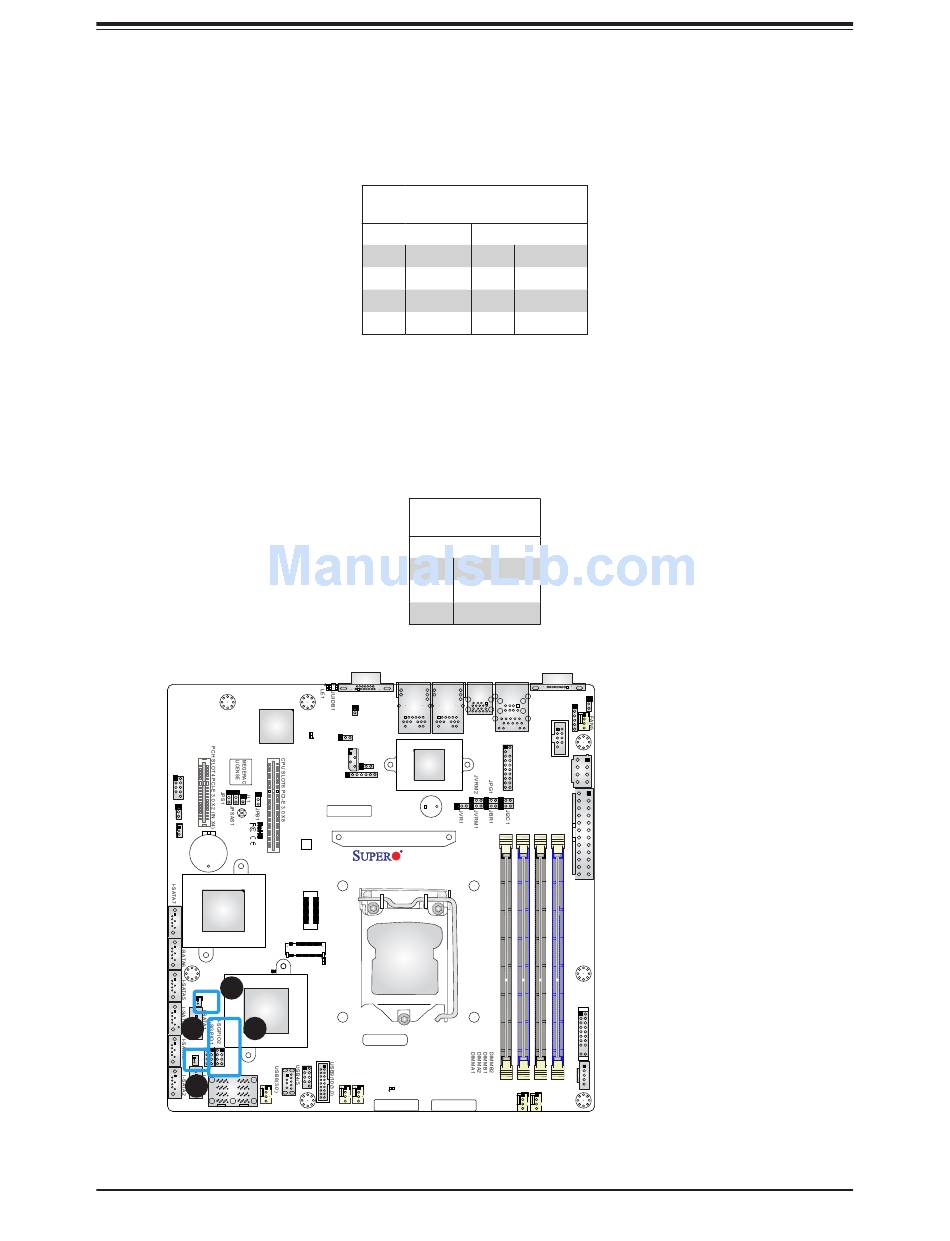

SGPIO Headers
I-SGPIO1 and I-SGPIO2 (Serial General Purpose Input/Output) headers are used to
communicate with the enclosure management chip on the backplane.
Disk-On-Module Power Connector
The Disk-On-Module (DOM) power connectors at JSD1 and JSD2 provide 5V power to a
solid-state DOM storage device connected to one of the SATA ports. See the table below for
pin definitions.
USB2/3
JWD1
JBT1
JSTBY1
BT1
Intel
PCH
LEDS1
4
LSI3008
JSD2
(-CTF only)
1 2
JSD1
JSAS1
3
PRESS FIT
FANA
SGPIO Header
Pin Definitions
Pin# Definition Pin#
1 NC 2
3 Ground 4
5 Load 6
7 Clock 8
NC = No Connection
DOM Power
Pin Definitions
Pin# Definition
1 5V
2 Ground
3 Ground
