Supermicro X11SSH-CTF User Manual page 36

X11SSH-CTF/TF User's Manual
Universal Serial Bus (USB) Ports

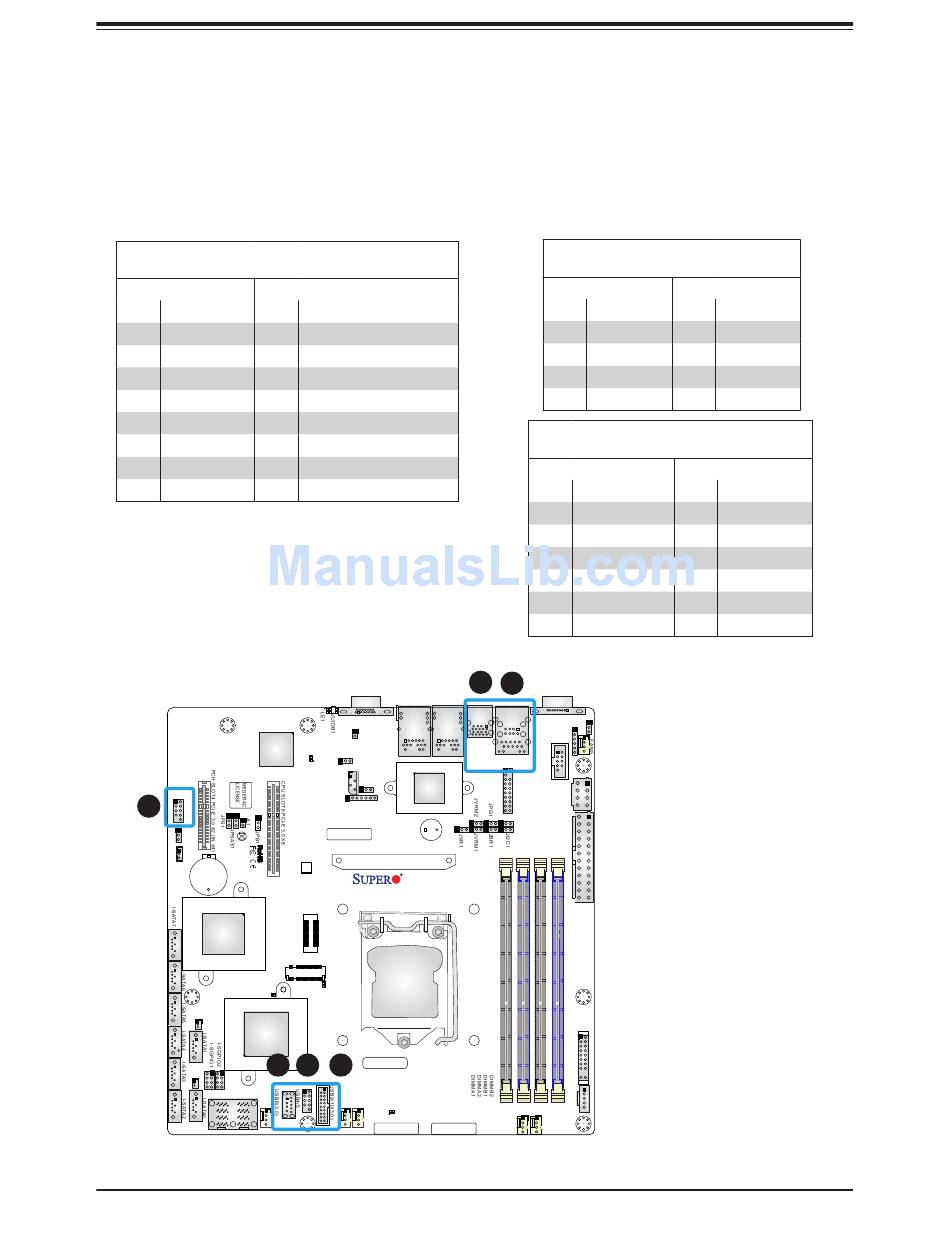

There is one USB 2.0 port (USB0/1) and one USB 3.0 port (USB6/7) located on the I/O back
panel. The motherboard also has two front access USB 2.0 headers (USB2/3 and USB4/5)
and one front access USB 3.0 header (USB9/10). The USB8 header is USB Type A. The
onboard headers can be used to provide front side USB access with a cable (not included).
Back Panel USB (3.0)
Pin Definitions
Pin# Definition Pin#
A1 VBUS B1
A2 D- B2
A3 D+ B3
A4 Ground B4
A5 StdA_SSRX- B5
A6 StdA_SSRX+ B6
A7 GND_DRAIN B7
A8 StdA_SSTX- B8
A9 StdA_SSTX+ B9
USB2/3
2
JWD1
JBT1
JSTBY1
BT1
Intel
PCH
LEDS1
LSI3008
JSD2
(-CTF only)
5
JSD1
JSAS1
PRESS FIT FANA
Definition
Power
USB 2.0 Differential Pair
Ground of PWR Return
SuperSpeed Receiver
Differential Pair
Ground for Signal Return
SuperSpeed Transmitter
Differential Pair
4
VGA
USB6/7
JOH1
(3.0)
LAN2 LAN1
JPME2
LEDBMC
JIPMB1
JPTG1 X550
JD1
SAS CODE
SP1
MH8
REV:1.01
X11SSH-TF
DESIGNED IN USA
CPU Socket LGA1151
J24
LE3
3 6
BAR CODE
LEDPWR
MAC CODE IPMI CODE
FAN4
FAN3
36
Front Panel USB 2.0
Header Pin Definitions
Pin# Definition
1 +5V
3 USB_N
5 USB_P
7 Ground
9 Key
USB Type A
Header Pin Definitions
Pin# Definition
1 VBUS
3 D-P
5 Stda_SSRX-N
7 GND_DRAIN
9 Stda_SSTX-P
11 CG
13 CG
1
1. USB0/1
2. USB2/3
JPCK1
COM1
J2
COM2
3. USB4/5
IPMI_LAN
USB0/1
4. USB6/7
JTPM1
JPWR2
5. USB8
JI2C2
JPWR1
6. USB9/10
JF1
JPI2C1
FAN1
FAN2
Pin# Definition
2 +5V
4 USB_N
6 USB_P
8 Ground
10 NC
Pin# Definition
2 D-N
4 GND
6 Stda_SSRX-P
8 Stda_SSTX-N
10 CG
12 CG
