System Block Diagram - Supermicro X11SSH-CTF User Manual

X11SSH-CTF/TF User's Manual
Available on the X11SSH-CTF
MINI SAS HD
MINI SAS HD
SLOT6
RJ45
RJ45
LAN3
RJ45
RTL8211E-VB-CG
DDR3
SPI
BMC Boot Flash
VGA CONN
Temp Sensor
EMC1402-1 *2 at diff SMBUS
Note: This is a general block diagram and may not exactly represent the features on
your motherboard. See the previous pages for the actual specifications of your moth-
erboard.

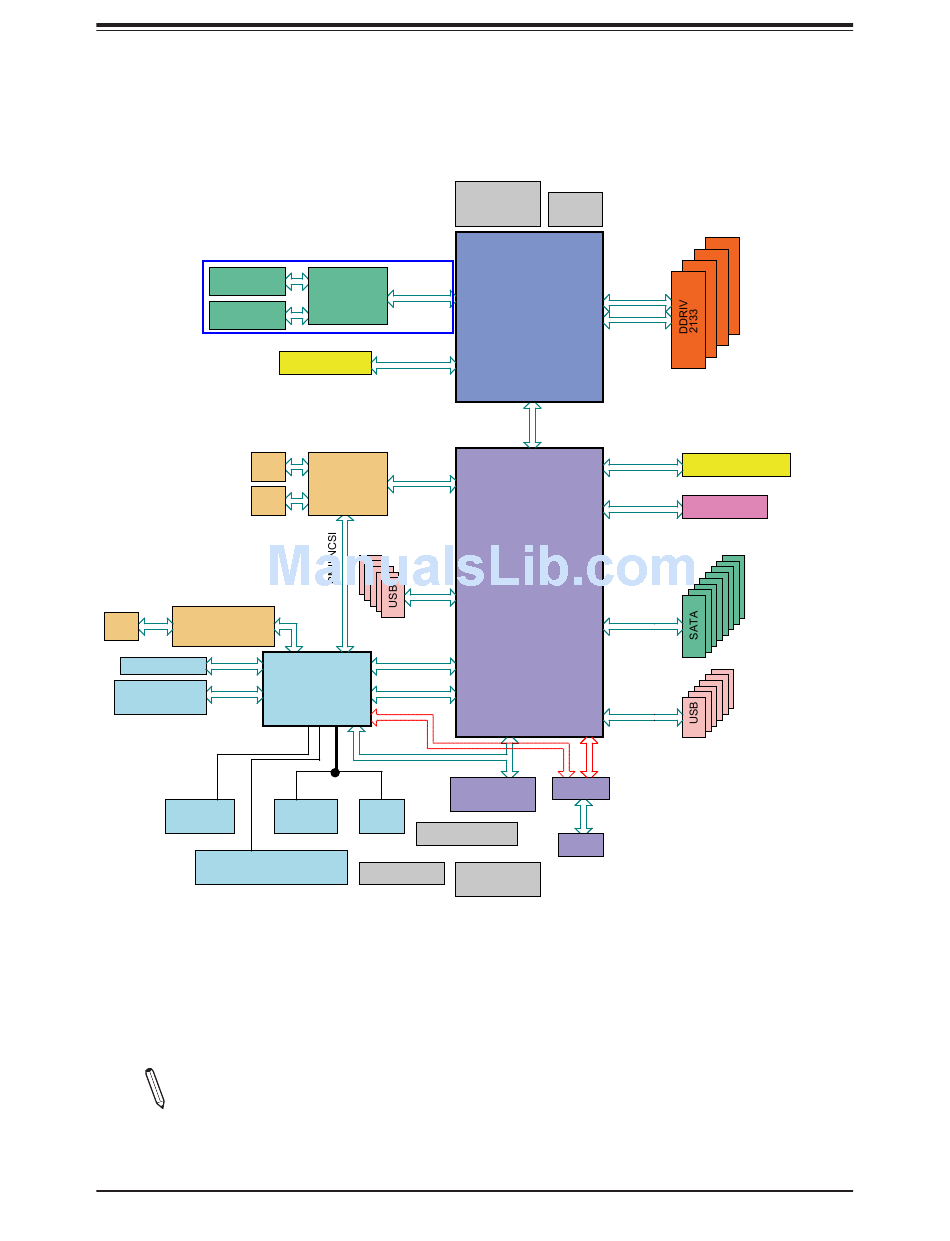

Figure 1-4.

System Block Diagram
