X11SSH-CTF/TF User's Manual

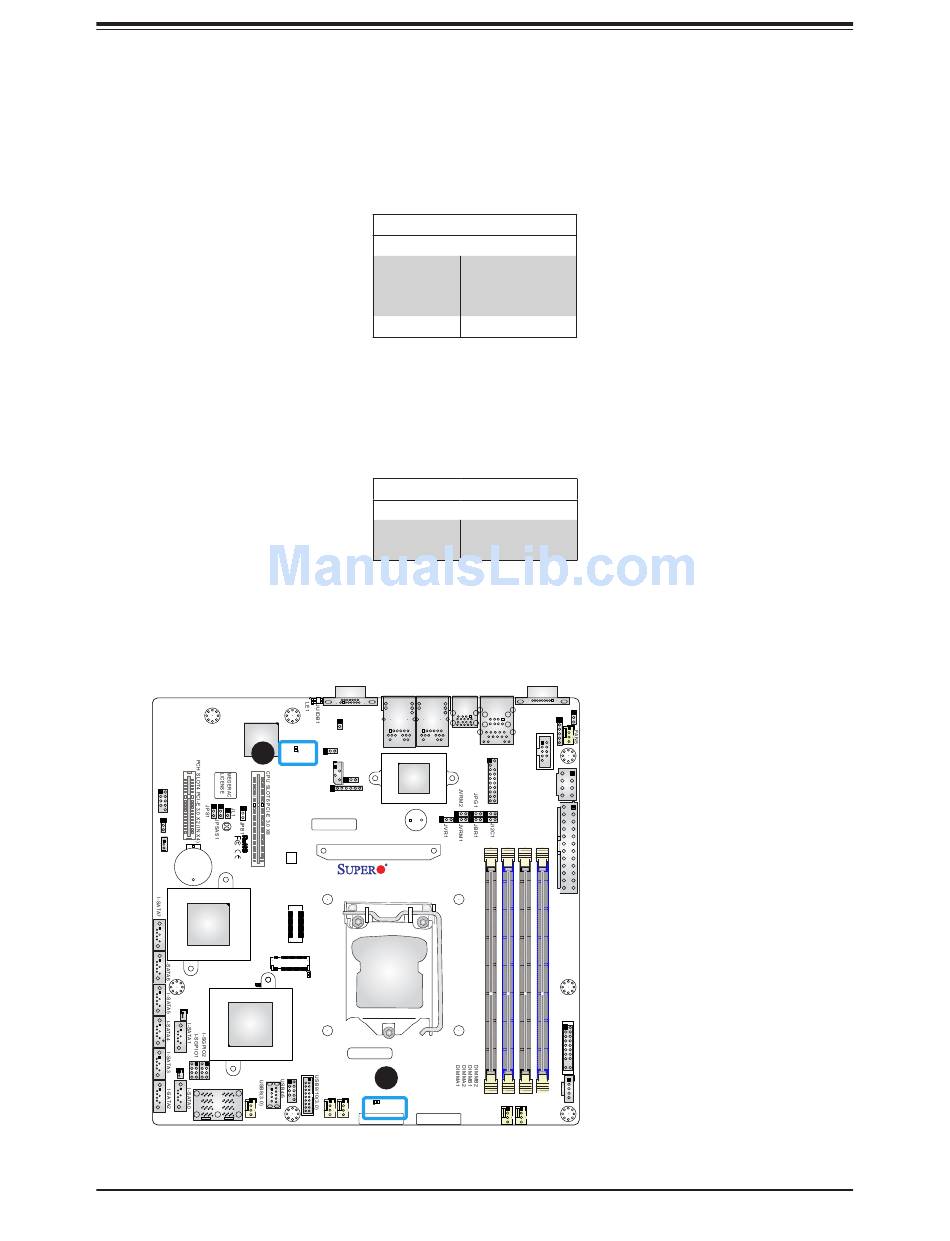

Onboard Power LED
LEDPWR is an Onboard Power LED. When this LED is lit, it means power is present on the
motherboard. In suspend mode, this LED will blink on and off. Be sure to turn off the system
and unplug the power cord(s) before removing or installing components.
BMC Heartbeat LED
LEDBMC is the BMC heartbeat LED. When the LED is blinking green, BMC is functioning
normally. See the table below for the LED status.
2
USB2/3
JWD1
JBT1
JSTBY1
BT1
Intel
PCH
LEDS1
LSI3008
JSD2
(-CTF only)
JSD1
JSAS1
PRESS FIT FANA
Onboard Power LED Indicator
LED Color
Off
Green
BMC Heartbeat LED Indicator
LED Color
Green:
Blinking
VGA
USB6/7
JOH1
(3.0)
LAN2 LAN1
JPME2
LEDBMC
JIPMB1
JPTG1 X550
JD1
SAS CODE
SP1
MH8
REV:1.01
X11SSH-TF
DESIGNED IN USA
CPU Socket LGA1151
J24
LE3
BAR CODE
1
LEDPWR
MAC CODE
IPMI CODE
FAN4 FAN3
60
Definition
System Off
(power cable not
connected)
System On
Definition
BMC Normal
1. Onboard Power LED
2. BMC Heartbeat LED
JPCK1
COM1
J2
COM2
IPMI_LAN
USB0/1
JTPM1
JPWR2
JI2C2
JPWR1
JF1
JPI2C1
FAN1
FAN2
