X11SSH-CTF/TF User's Manual
SATA and SAS Ports

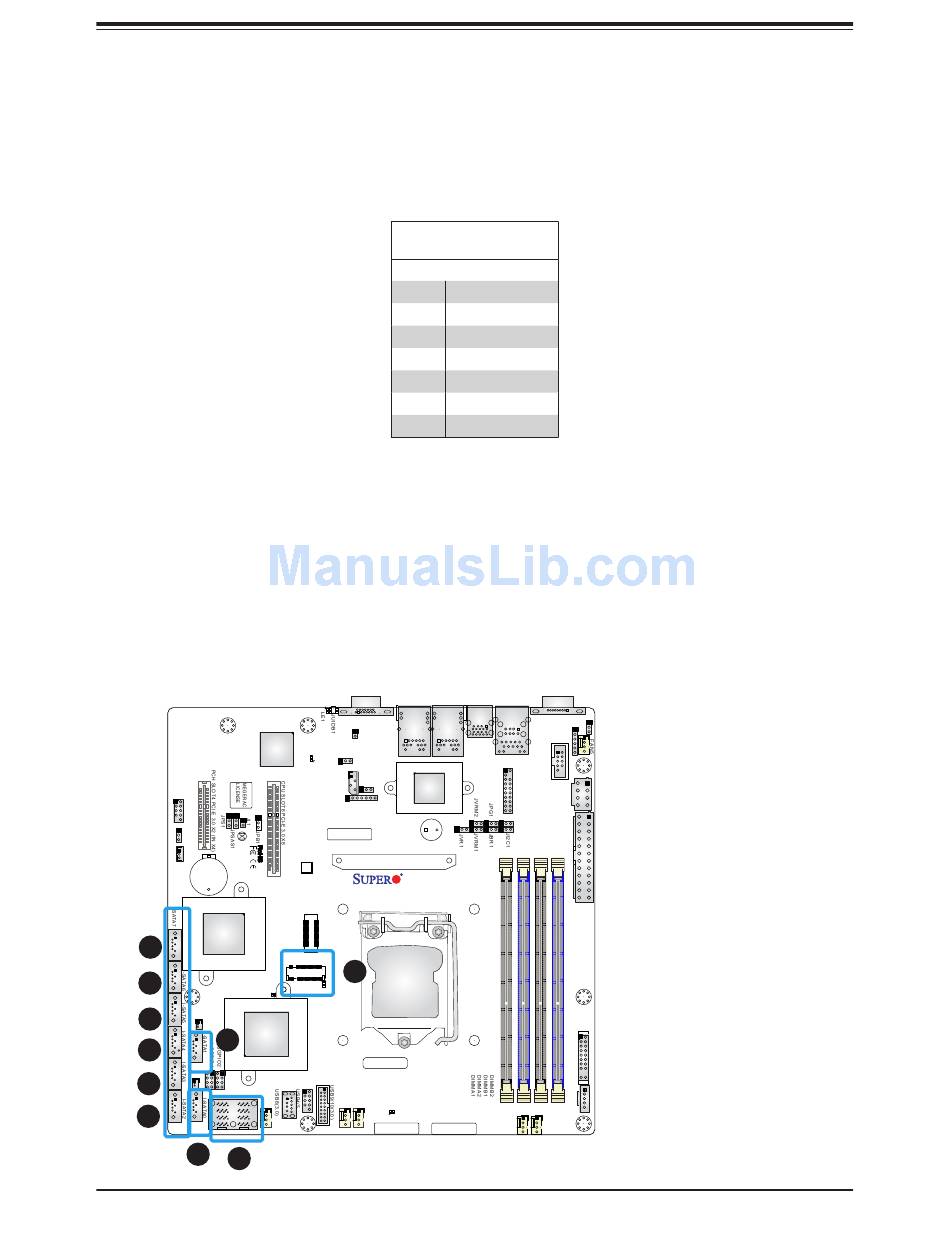

The X11SSH-TF has eight SATA 3.0 ports that are supported by the Intel PCH C236 chipset.
In addition to the eight SATA 3.0 ports, the X11SSH-CTF has eight SAS 3.0 ports that are
supported by the LSI 3008 controller.
M.2 Slot
M.2 is formerly known as Next Generation Form Factor (NGFF). The M.2 slot at J24 is
designed for internal mounting devices. The X11SSH-CTF/TF motherboard deploys an M key
only dedicated for SSD devices with the ulitmate performance capability in a PCI Express
3.0 X4 interface for native PCI-E SSD support.
