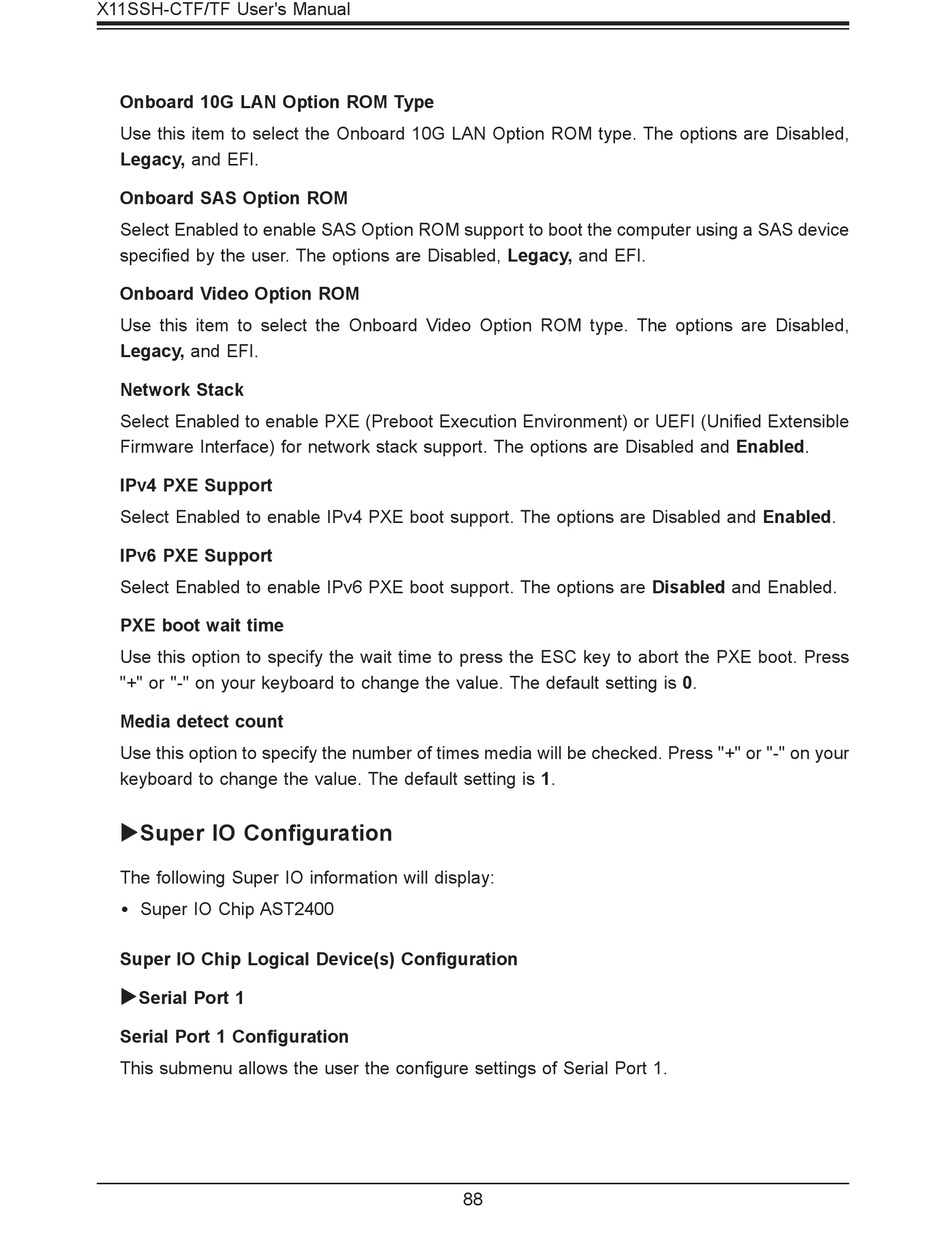

X11SSH-CTF/TF User's Manual
Onboard 10G LAN Option ROM Type
Use this item to select the Onboard 10G LAN Option ROM type. The options are Disabled,
Legacy, and EFI.
Onboard SAS Option ROM
Select Enabled to enable SAS Option ROM support to boot the computer using a SAS device
specified by the user. The options are Disabled, Legacy, and EFI.
Onboard Video Option ROM
Use this item to select the Onboard Video Option ROM type. The options are Disabled,
Legacy, and EFI.
Network Stack
Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible
Firmware Interface) for network stack support. The options are Disabled and Enabled.
IPv4 PXE Support
Select Enabled to enable IPv4 PXE boot support. The options are Disabled and Enabled.
IPv6 PXE Support
Select Enabled to enable IPv6 PXE boot support. The options are Disabled and Enabled.
PXE boot wait time
Use this option to specify the wait time to press the ESC key to abort the PXE boot. Press
"+" or "-" on your keyboard to change the value. The default setting is 0.
Media detect count
Use this option to specify the number of times media will be checked. Press "+" or "-" on your
keyboard to change the value. The default setting is 1.
Super IO Configuration
The following Super IO information will display:
•
Super IO Chip AST2400
Super IO Chip Logical Device(s) Configuration

Serial Port 1
Serial Port 1 Configuration
This submenu allows the user the configure settings of Serial Port 1.
88
