SAS Activity LED (X11SSH-CTF only)

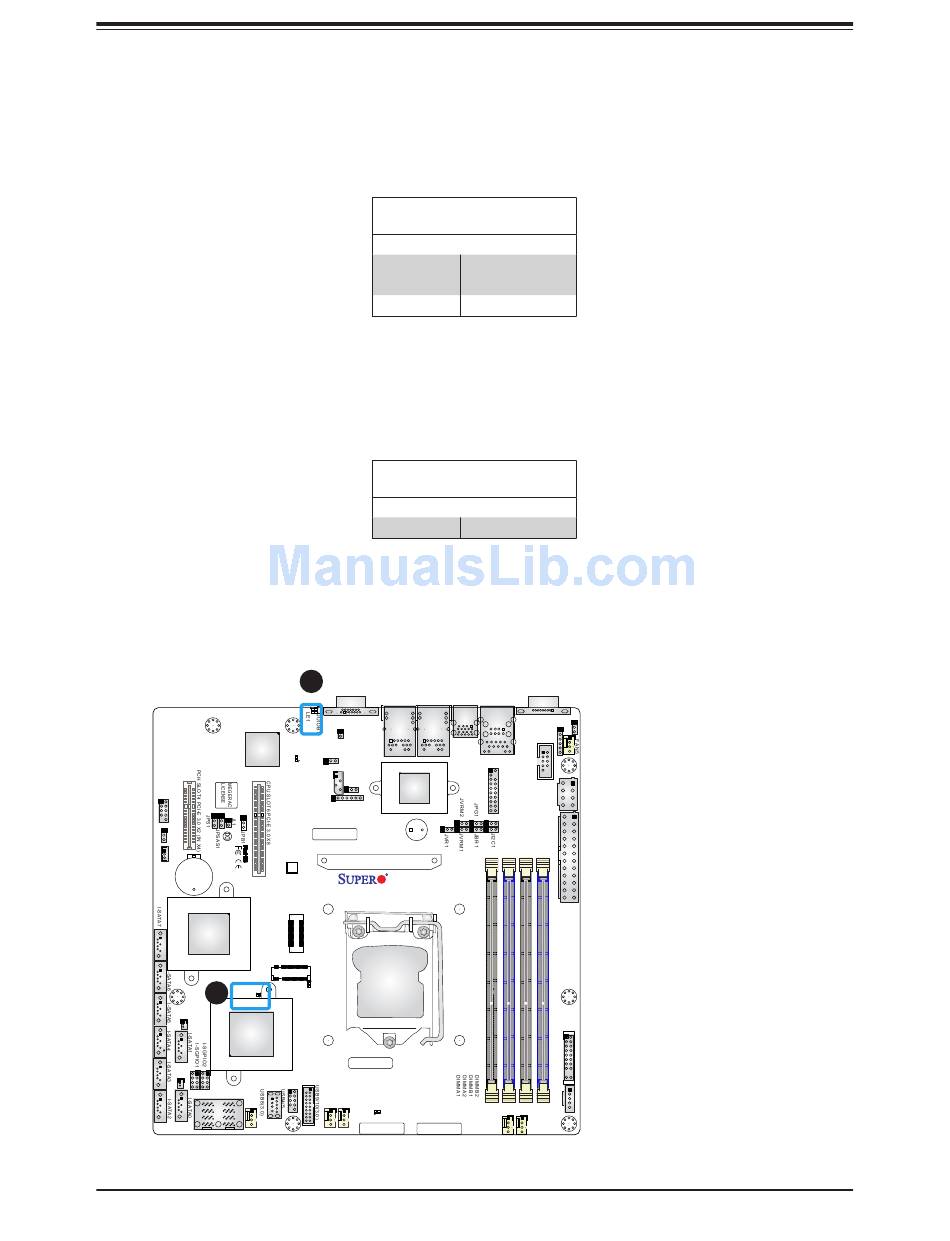

A SAS Activity LED is located at LEDS1. When LEDS1 flashes, it indicates activity on a SAS
port.
Unit ID LED
A rear UID LED indicator at LE1 is located near the UID switch on the I/O back panel. This
UID indicator provides easy identification of a system.unit that may need service.
LEDBMC
USB2/3
JWD1
JBT1
JSTBY1
BT1 MH8
Intel
PCH
1
LEDS1
LSI3008
JSD2
(-CTF only)
JSD1
JSAS1
PRESS FIT FANA
SAS Activity
LED Indicator
LED Color Definition
Green:
SAS Active
Blinking
Red SAS Error
UID LED
LED Indicator
LED Color Definition
Blue: On Unit Identified
