Supermicro X11SSH-CTF User Manual page 53

VGA Enable/Disable
JPG1 allows you to enable or disable the VGA port using the onboard graphics controller.
The default setting is Enabled.
10Gb LAN Enable/Disable
JPTG1 allows you to enable or disable the 10Gb LAN. The default setting is Enabled.
LEDBMC
USB2/3
JWD1
JBT1
JSTBY1
BT1 MH8
Intel
PCH
LEDS1
LSI3008
JSD2
(-CTF only)
JSD1
JSAS1
PRESS FIT FANA

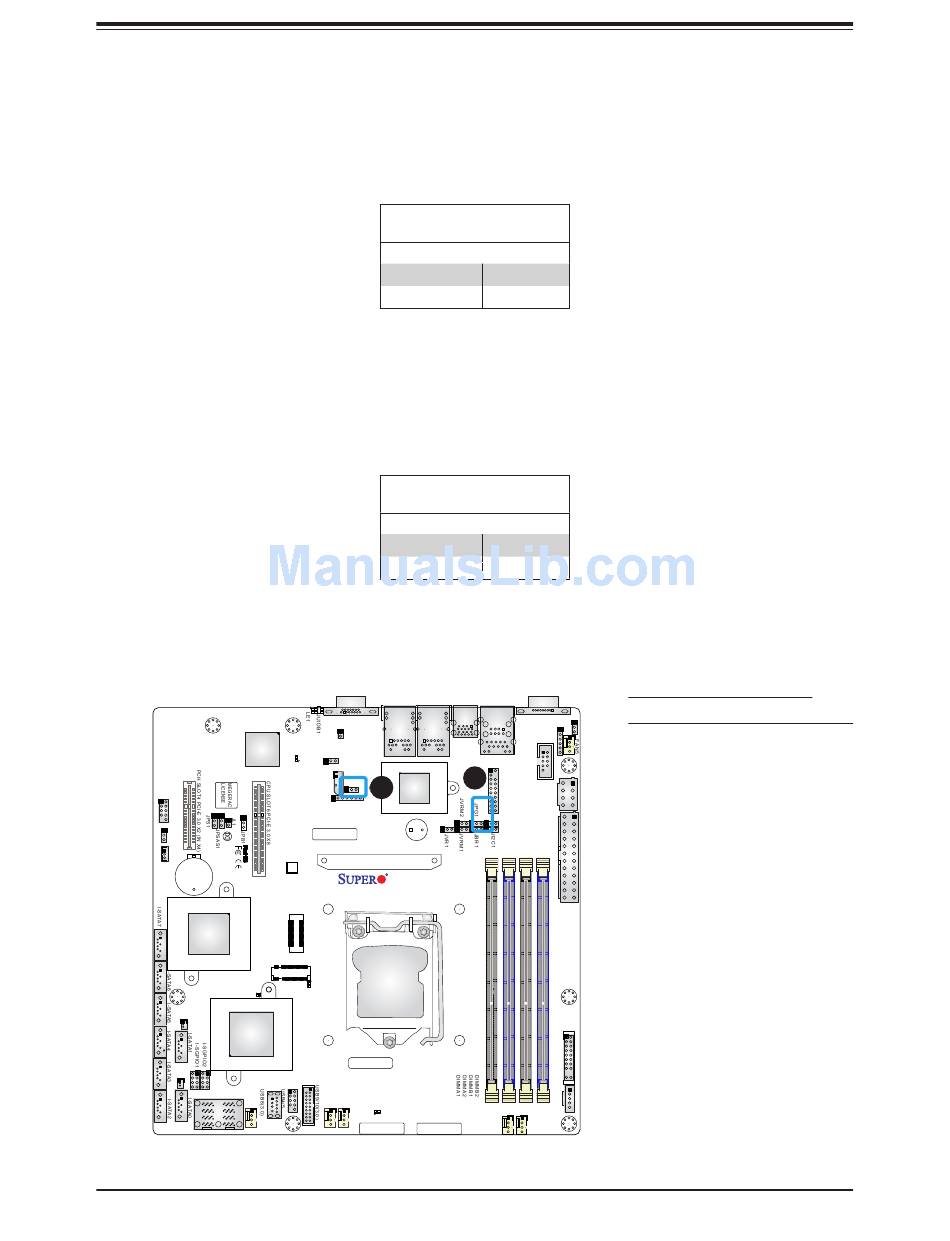

VGA Enable/Disable
Jumper Settings
Jumper Setting Definition
Pins 1-2 Enabled
Pins 2-3 Disabled
10Gb LAN Enable/Disable
Jumper Settings
Jumper Setting Definition
Pins 1-2 Enabled
Pins 2-3 Disabled
