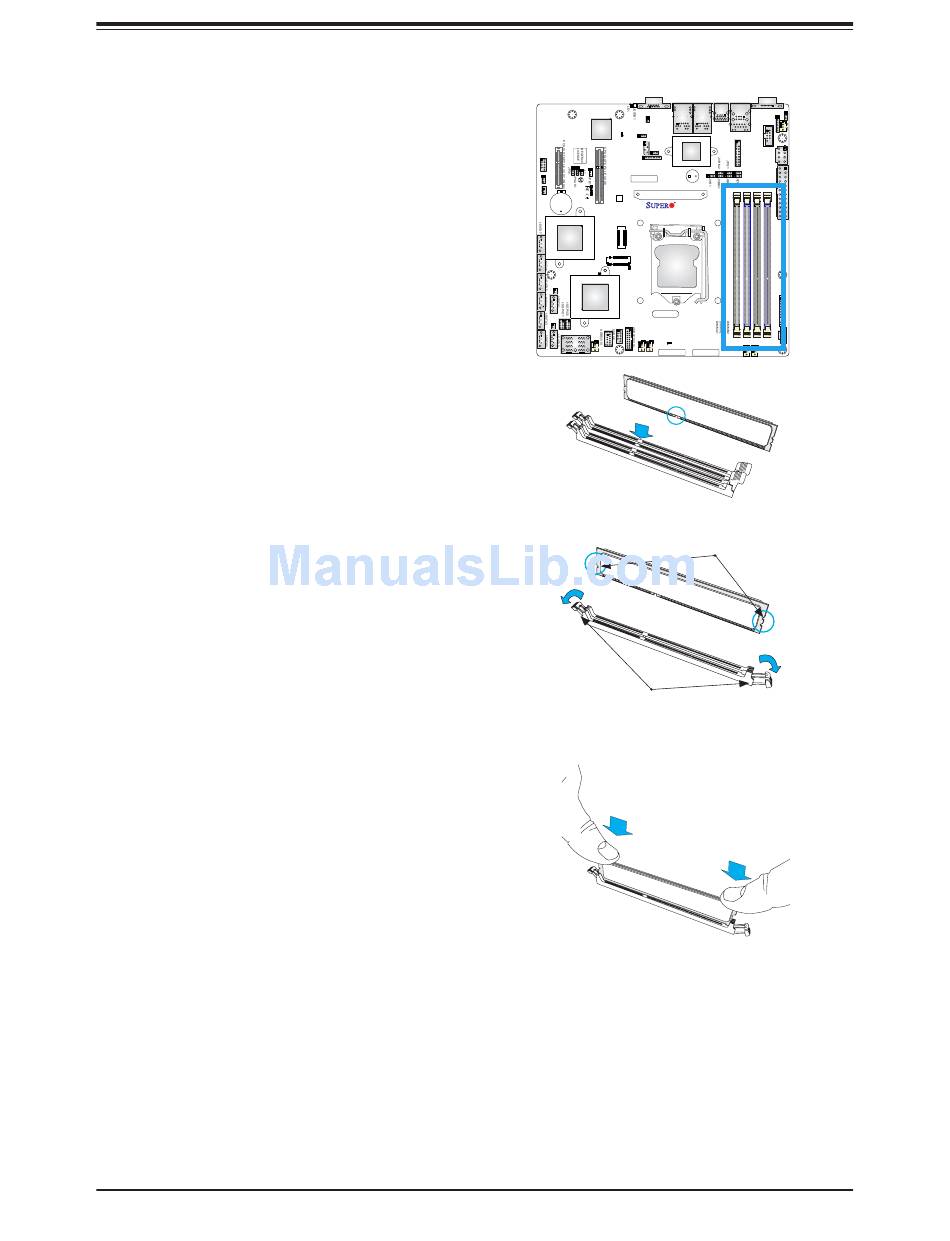

DIMM Installation

1. Insert DIMM modules in the following
order: DIMMB2, DIMMA2, then DIMMB1,
DIMMA1. For the system to work properly,
please use memory modules of the same
type and speed on the motherboard.
2. Push the release tabs outwards on both
ends of the DIMM slot to unlock it.
3. Align the key of the DIMM module with the
receptive point on the memory slot.
4. Align the notches on both ends of the
module against the receptive points on the
ends of the slot.
5. Use two thumbs together to press the
notches on both ends of the module
straight down into the slot until the module
snaps into place.
6. Press the release tabs to the lock positions
to secure the DIMM module into the slot.

DIMM Removal

Reverse the steps above to remove the DIMM
modules from the motherboard.
JOH1
LEDBMC
JIPMB1
USB2/3
JD1
SAS CODE
JWD1
JBT1
JSTBY1
BT1 MH8
Intel
PCH
J24
LE3
LEDS1
LSI3008
JSD2
(-CTF only)
JSD1
JSAS1
PRESS FIT FANA FAN4
Release Tabs
Press both notches
straight down into
the memory slot.
33
Chapter 2: Installation
JPCK1
VGA COM1
J2
COM2
USB6/7
(3.0)
IPMI_LAN
LAN2 LAN1
JPME2
USB0/1
JPTG1 X550
JTPM1
JPWR2
JI2C2
JPWR1
SP1
REV:1.01
X11SSH-TF
DESIGNED IN USA
CPU Socket LGA1151
JF1
BAR CODE
JPI2C1
LEDPWR
FAN2 FAN1
MAC CODE IPMI CODE
FAN3
Notches
