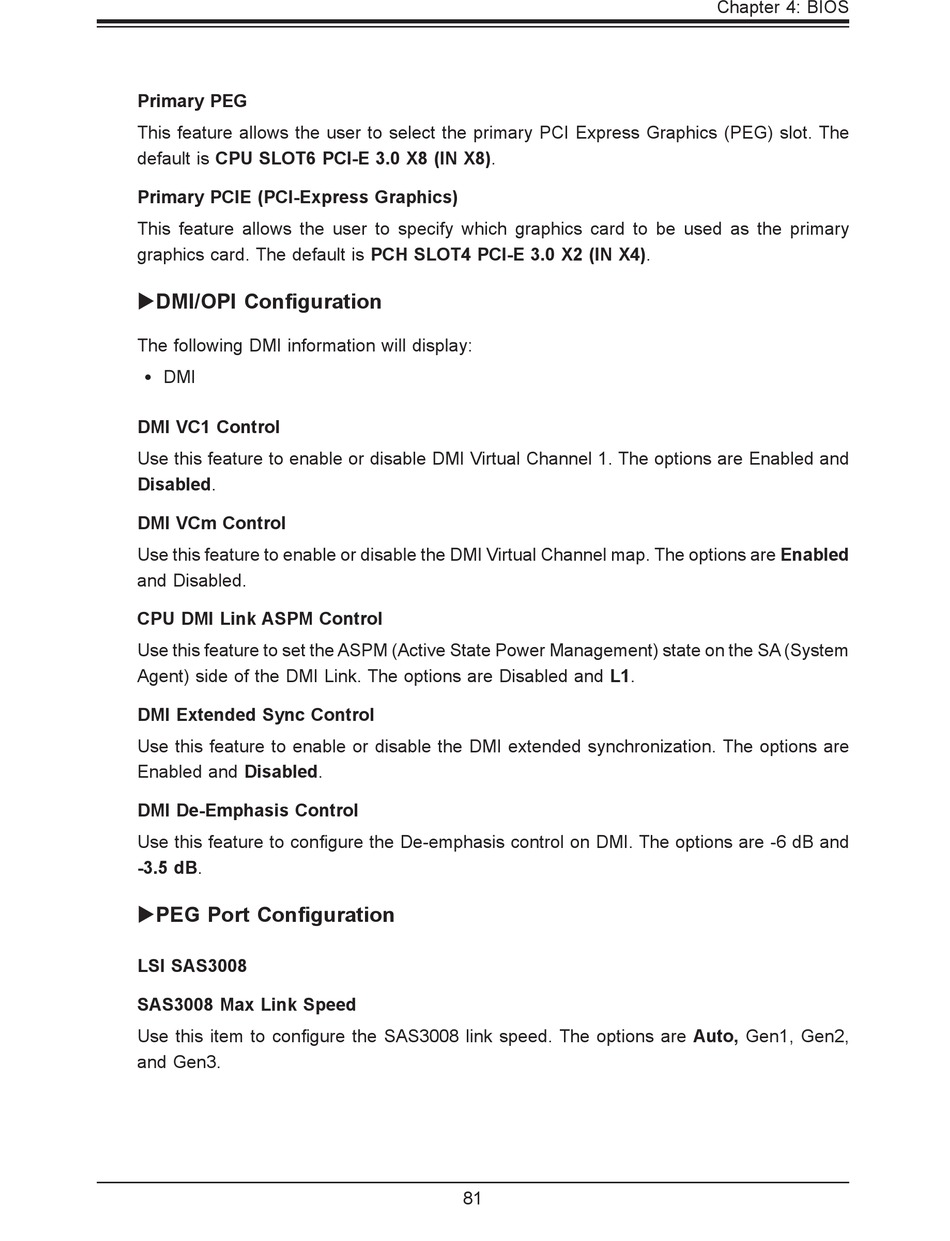

Chapter 4: BIOS
Primary PEG
This feature allows the user to select the primary PCI Express Graphics (PEG) slot. The
default is CPU SLOT6 PCI-E 3.0 X8 (IN X8).
Primary PCIE (PCI-Express Graphics)
This feature allows the user to specify which graphics card to be used as the primary
graphics card. The default is PCH SLOT4 PCI-E 3.0 X2 (IN X4).
DMI/OPI Configuration
The following DMI information will display:
•
DMI
DMI VC1 Control
Use this feature to enable or disable DMI Virtual Channel 1. The options are Enabled and
Disabled.
DMI VCm Control
Use this feature to enable or disable the DMI Virtual Channel map. The options are Enabled
and Disabled.
CPU DMI Link ASPM Control
Use this feature to set the ASPM (Active State Power Management) state on the SA (System
Agent) side of the DMI Link. The options are Disabled and L1.
DMI Extended Sync Control
Use this feature to enable or disable the DMI extended synchronization. The options are
Enabled and Disabled.
DMI De-Emphasis Control
Use this feature to configure the De-emphasis control on DMI. The options are -6 dB and
-3.5 dB.
PEG Port Configuration
LSI SAS3008
SAS3008 Max Link Speed
Use this item to configure the SAS3008 link speed. The options are Auto, Gen1, Gen2,
and Gen3.
