X11SSH-CTF/TF User's Manual

Headers

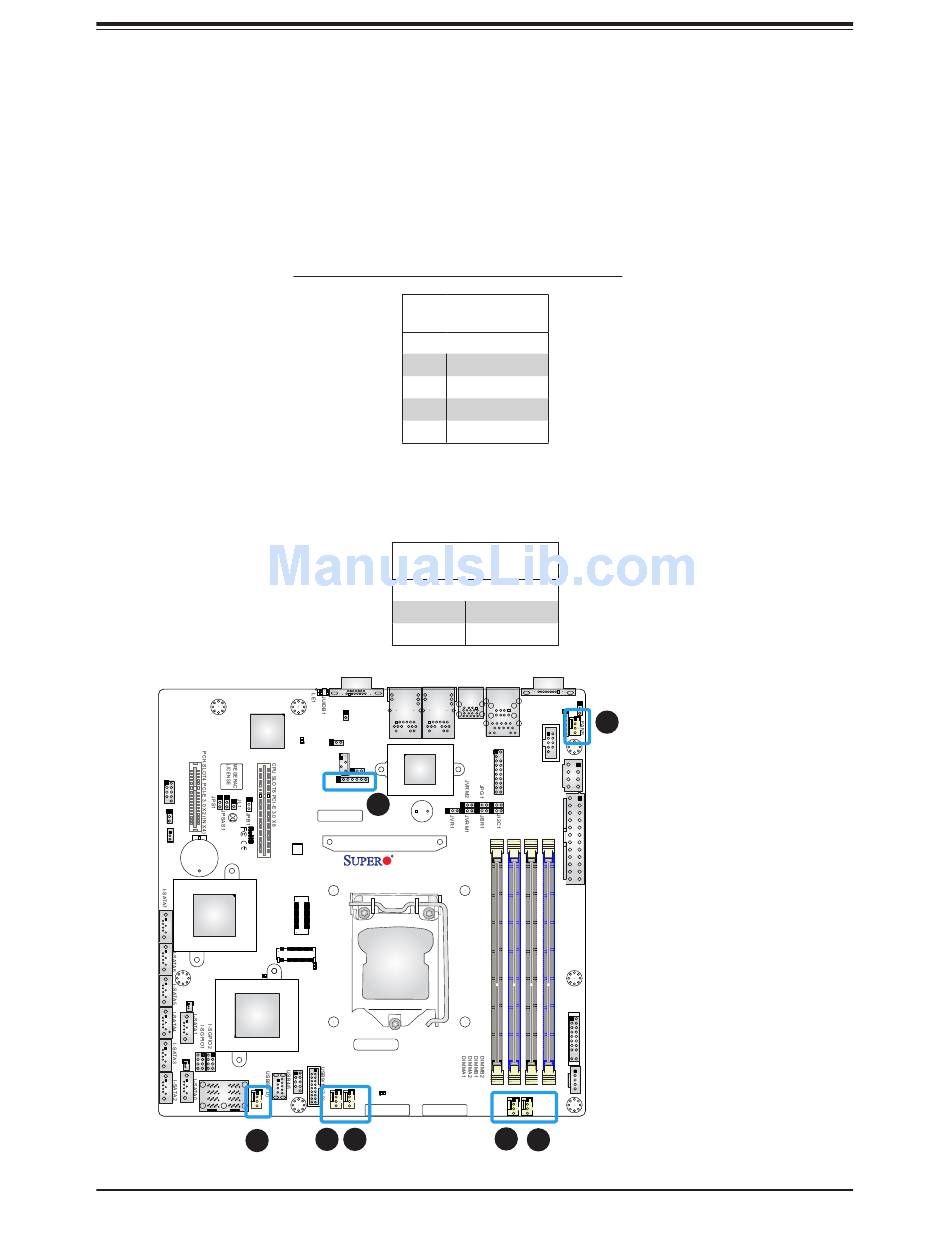

Fan Headers
There are six fan headers on the motherboard. These are 4-pin fan headers; pins 1-3 are
backward compatible with traditional 3-pin fans. The onboard fan speeds are controlled
by Thermal Management (via Hardware Monitoring) in the BIOS. When using Thermal
Management setting, please use all 3-pin fans or all 4-pin fans.
Power LED/Speaker
On the JD1 header, pins 1-3 are for the power LED and pins 4-7 are for the internal speaker.
If you wish to use an external speaker, connect its cable to pins 1-4.
USB2/3
JWD1
JBT1
JSTBY1
BT1
Intel
PCH
LEDS1
LSI3008
JSD2
(-CTF only)
JSD1
JSAS1
PRESS FIT FANA
1
Fan Header
Pin Definitions
Pin# Definition
1 Ground (Black)
2 +12V (Red)
3 Tachometer
4 PWM Control
Speaker Connector
Pin Definitions
Pin Setting
Pins 1-3
Pins 4-7
VGA
USB6/7
JOH1
(3.0)
LAN2 LAN1
JPME2
LEDBMC
JIPMB1
X550
JPTG1
JD1
7
SAS CODE
SP1
MH8
REV:1.01
X11SSH-TF
DESIGNED IN USA
CPU Socket LGA1151
J24
LE3
BAR CODE
LEDPWR
MAC CODE
IPMI CODE
FAN4 FAN3
5 4
44
Definition
Power LED
Speaker
JPCK1
COM1
J2
6
COM2
IPMI_LAN
USB0/1
JTPM1
JPWR2
JI2C2
JPWR1
JF1
JPI2C1
FAN1
FAN2
3
2
1. FANA
2. FAN1
3. FAN2
4. FAN3
5. FAN4
6. FAN5
7. Power LED/Speaker
