X11SSH-CTF/TF User's Manual

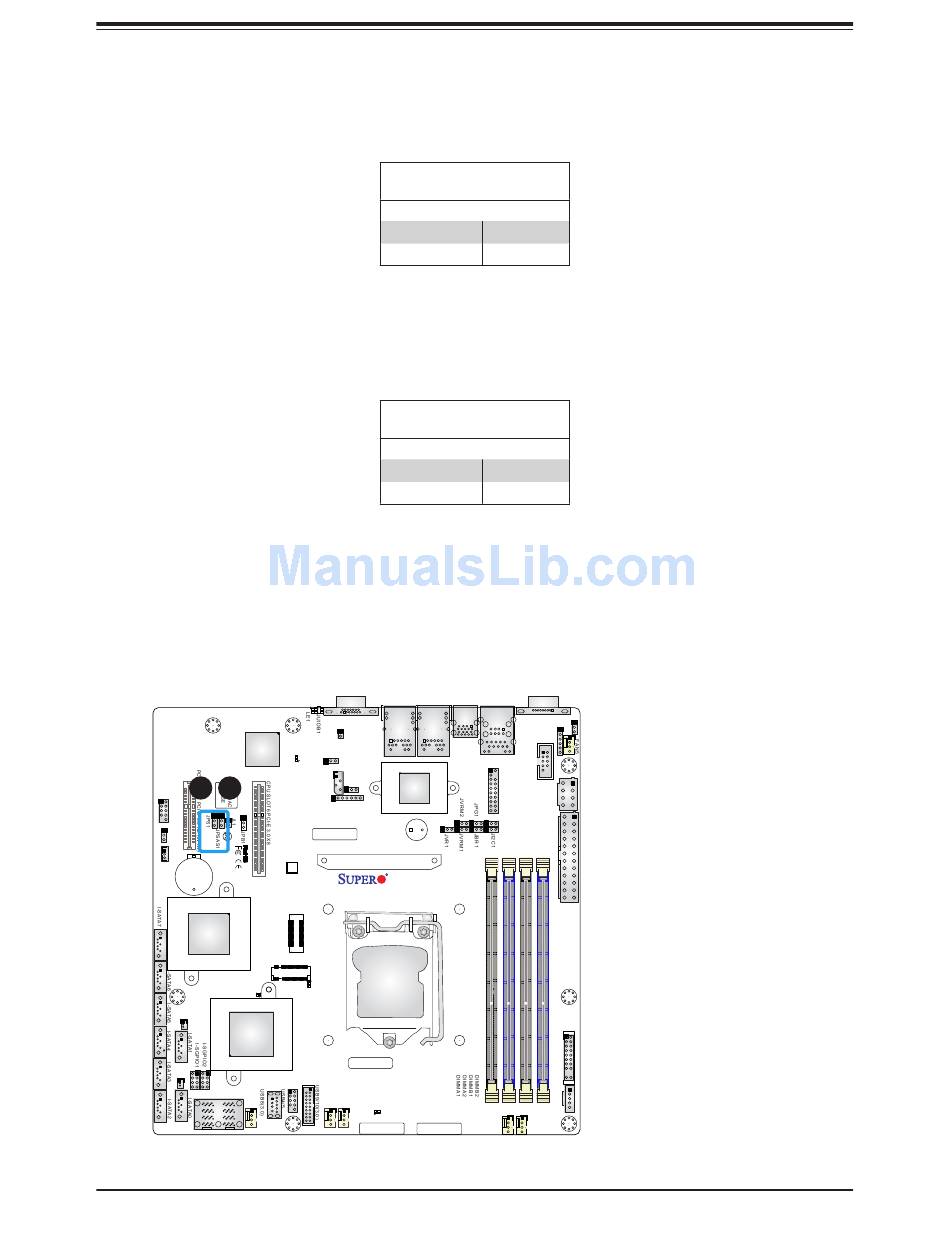

SAS HDD Enable/Disable (X11SSH-CTF only)
JPSAS1 allows you to enable the SAS HDD. See the table below for jumper settings.
SAS 3.0 Enable/Disable (X11SSH-CTF only)
JPS1 allows you to enable the onboard SAS 3.0 ports. See the table below for jumper settings.
2 1
USB2/3
JWD1
JBT1
JSTBY1
BT1
Intel
PCH
LEDS1
LSI3008
JSD2
(-CTF only)
JSD1
JSAS1
PRESS FIT FANA
SAS HDD
Jumper Settings
Jumper Setting
Pins 1-2
Pins 2-3
SAS Enable/Disable
Jumper Settings
Jumper Setting
Pins 1-2
Pins 2-3
VGA
USB6/7
JOH1
(3.0)
LAN2 LAN1
JPME2
LEDBMC
JIPMB1
JPTG1 X550
JD1
SAS CODE
SP1
MH8
REV:1.01
X11SSH-TF
DESIGNED IN USA
CPU Socket LGA1151
J24
LE3
BAR CODE
LEDPWR
MAC CODE IPMI CODE
FAN4
FAN3
56
Definition
Enabled
Disabled
Definition
Enabled
Disabled
1. SAS HDD Enable
2. SAS 3.0 Enable
JPCK1
COM1
J2
COM2
IPMI_LAN
USB0/1
JTPM1
JPWR2
JI2C2
JPWR1
JF1
JPI2C1
FAN1
FAN2
