VGA Port
The onboard VGA port is located next to LAN Ports 1/2 on the I/O back panel. Use this
connection for VGA display.

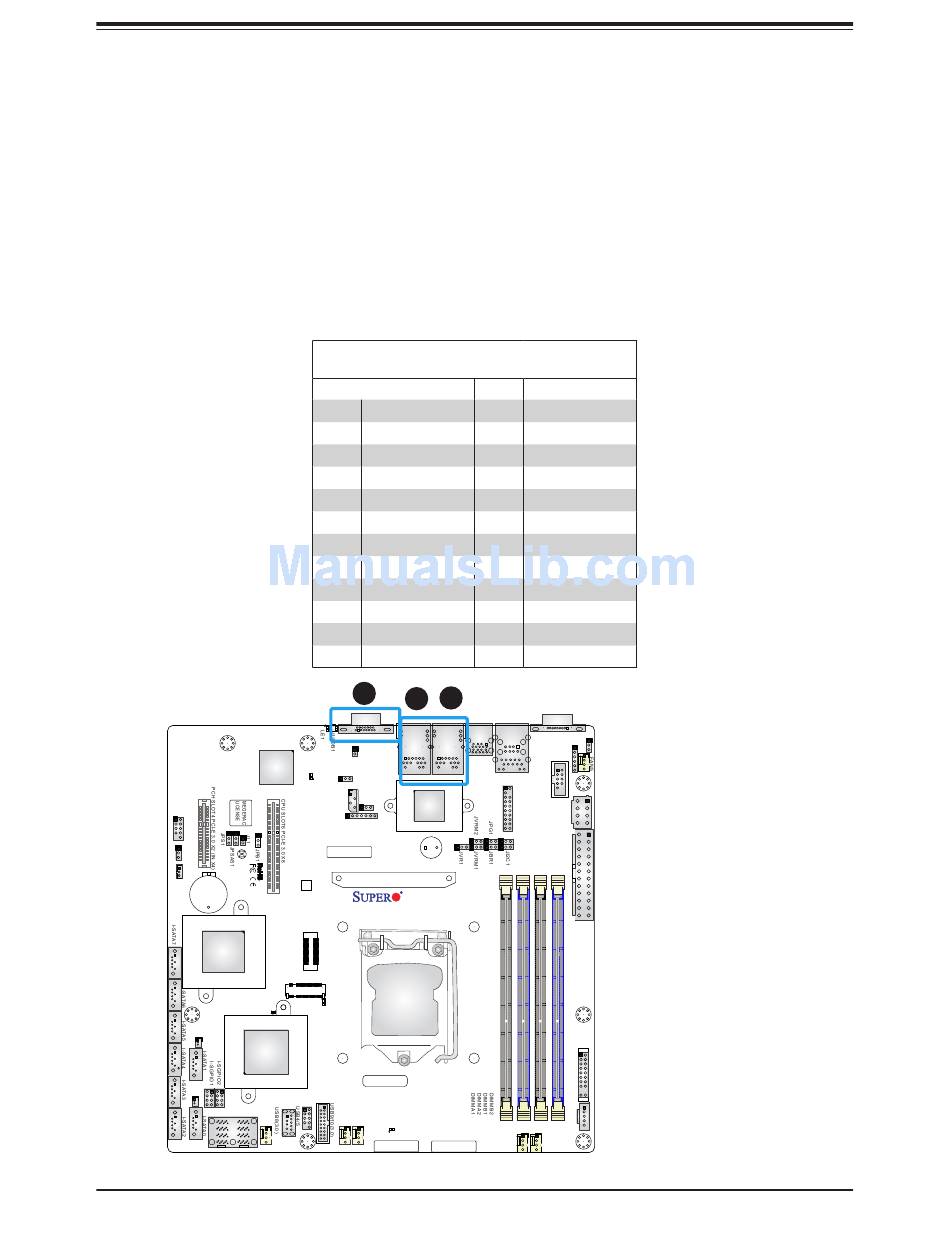

LAN Ports

Two LAN ports (LAN1 and LAN2) are located on the I/O back panel. There is also a dedicated
IPMI LAN port on the I/O back panel. These ports accept RJ45 type cables. See the table
below for the pin definitions.
USB2/3
JWD1
JBT1
JSTBY1
BT1
Intel
PCH
LEDS1
LSI3008
JSD2
(-CTF only)
JSD1
JSAS1
PRESS FIT
FANA
LAN Port
Pin Definition
Pin# Definition
1 TRCT2
2 TRD2+
3 TRD2-
4 TRD3+
5 TRD3-
6 TRCT3
7 TRCT1
8 TRD1+
9 TRD1-
10 TRD4+
11 TRD4-
12 TRCT4
1
2
3
VGA
USB6/7
JOH1
(3.0)
LAN2 LAN1
JPME2
LEDBMC
JIPMB1
JPTG1 X550
JD1
SAS CODE
SP1
MH8
REV:1.01
X11SSH-TF
DESIGNED IN USA
CPU Socket LGA1151
J24
LE3
BAR CODE
LEDPWR
MAC CODE
IPMI CODE
FAN4
FAN3
35
Pin# Definition
13 IETCT
14 IET+
15 IET-
16
17 L1-GRE-
18 L1-GRE+
19 L2-YEL-
20 COMMON
21 L2-GRE-
22 CG1
23 CG2
1. VGA Port
2. LAN1
JPCK1
COM1
J2
COM2
3. LAN2
IPMI_LAN
USB0/1
JTPM1
JPWR2
JI2C2
JPWR1
JF1
JPI2C1
FAN1
FAN2
Chapter 2: Installation
