X11SSH-CTF/TF User's Manual
Watch Dog
JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system
when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the
system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt
signal for the application that hangs. Watch Dog must also be enabled in BIOS. The default
setting is Reset.
Note: When Watch Dog is enabled, the user needs to write their own application
software to disable it.
BIOS Recovery
Close pins 2 and 3 of jumper JBR1 for BIOS recovery. The default setting is on pins 1 and 2
for normal operation. See the table below for jumper settings. The default setting is Normal.
USB2/3
1
JWD1
JBT1
JSTBY1
BT1
Intel
PCH
LEDS1
LSI3008
JSD2
(-CTF only)
JSD1
JSAS1
PRESS FIT
FANA
Watch Dog
Jumper Settings
Jumper Setting
Pins 1-2
Pins 2-3
Open
BIOS Recovery
Jumper Settings
Jumper Setting
Pins 1-2
Pins 2-3
VGA
USB6/7
JOH1
(3.0)
LAN2 LAN1
JPME2
LEDBMC
JIPMB1
JPTG1 X550
JD1
SAS CODE
SP1
MH8
REV:1.01
X11SSH-TF
DESIGNED IN USA
CPU Socket LGA1151
J24
LE3
BAR CODE
LEDPWR
MAC CODE
IPMI CODE
FAN4
FAN3
54
Definition
Reset
NMI
Disabled
Definition
Normal
BIOS Recovery

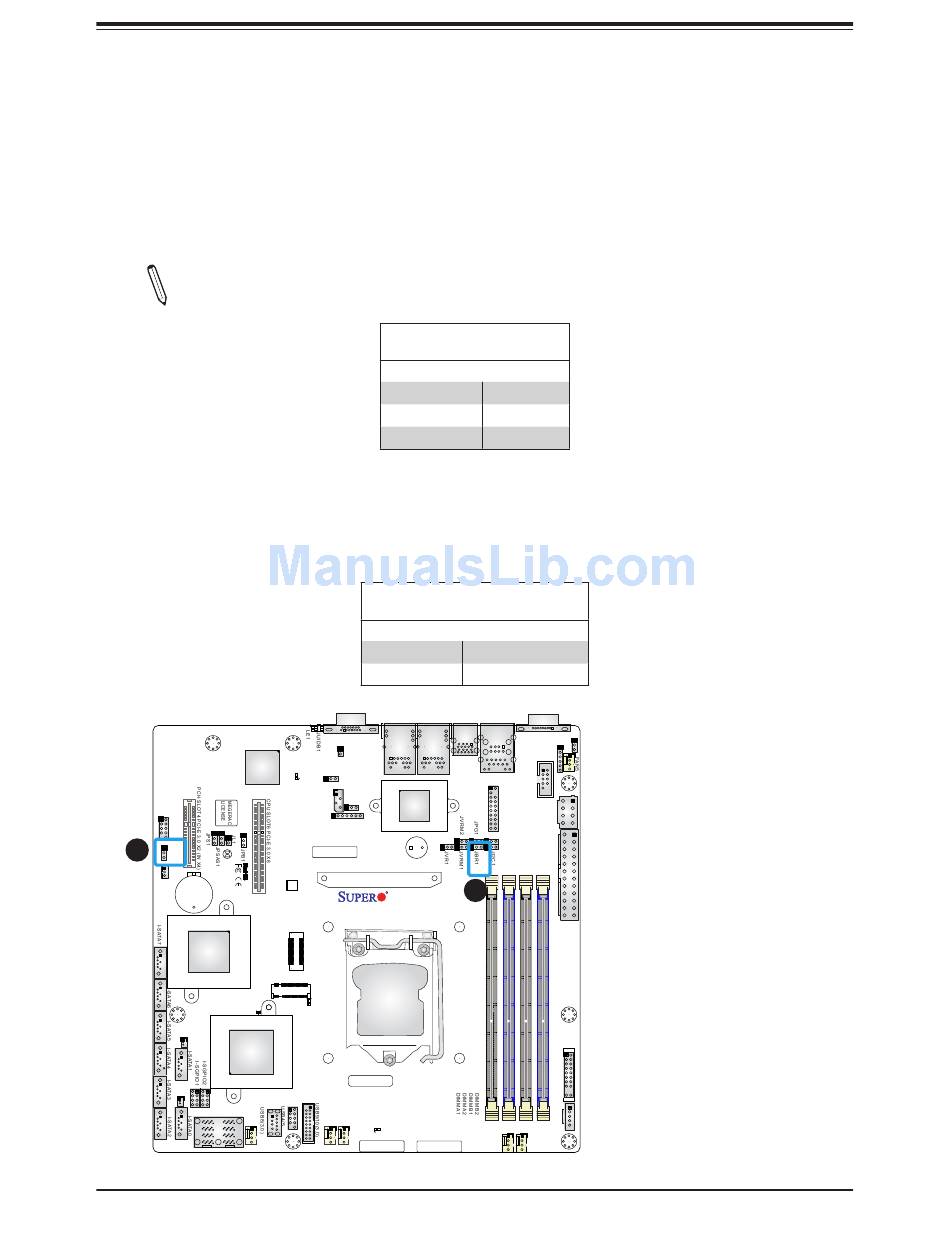

1. Watch Dog
JPCK1
COM1
J2
2. BIOS Recovery
COM2
IPMI_LAN
USB0/1
JTPM1
JPWR2
JI2C2
JPWR1
2
JF1
JPI2C1
FAN1
FAN2
