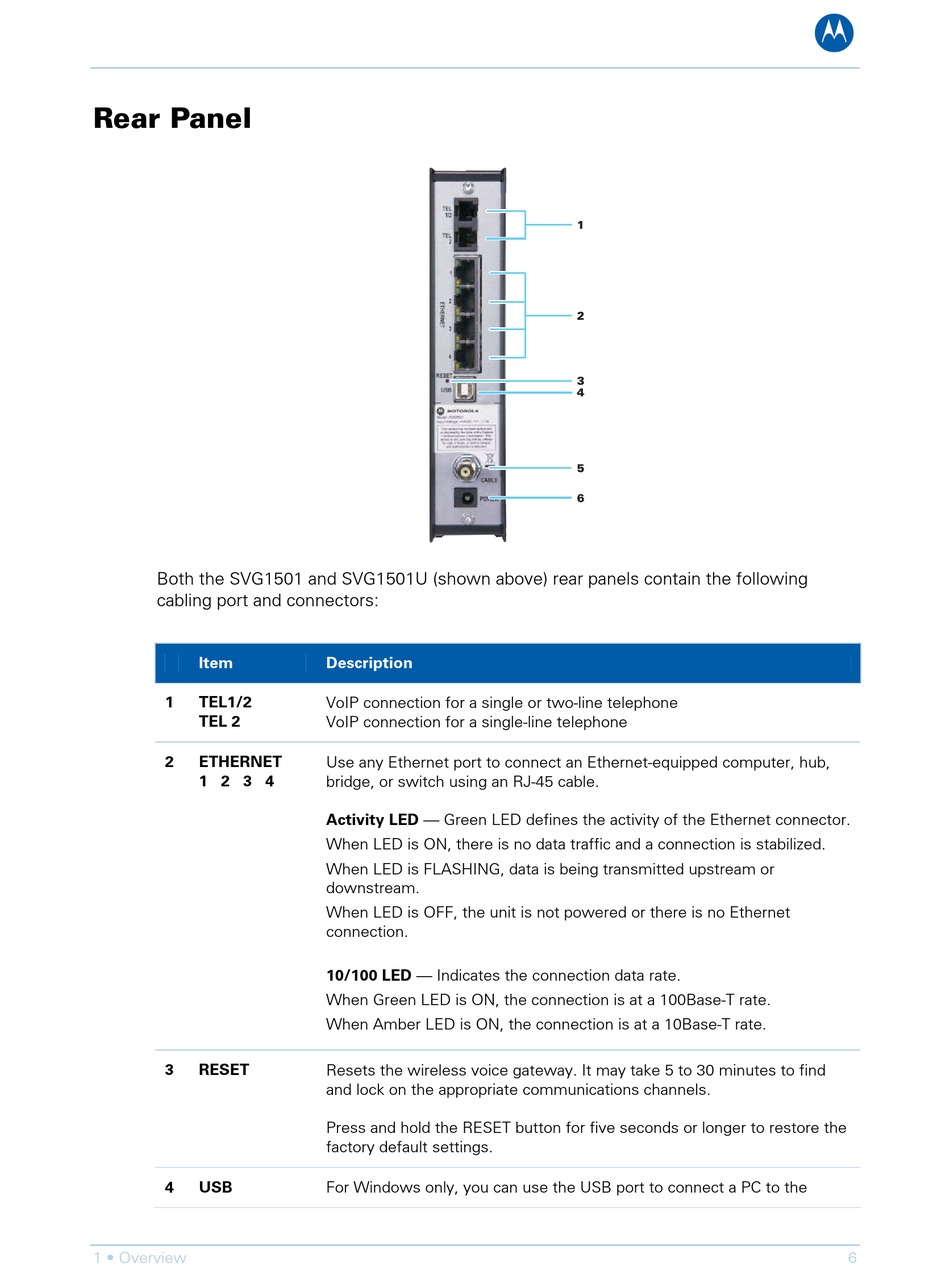

Rear Panel

Both the SVG1501 and SVG1501U (shown above) rear panels contain the following
cabling port and connectors:
Item
1
TEL1/2
TEL 2
2
ETHERNET
1 2 3 4
3
RESET
4
USB
1 • Overview
Description
VoIP connection for a single or two-line telephone
VoIP connection for a single-line telephone
Use any Ethernet port to connect an Ethernet-equipped computer, hub,
bridge, or switch using an RJ-45 cable.
Activity LED — Green LED defines the activity of the Ethernet connector.
When LED is ON, there is no data traffic and a connection is stabilized.
When LED is FLASHING, data is being transmitted upstream or
downstream.
When LED is OFF, the unit is not powered or there is no Ethernet
connection.
10/100 LED — Indicates the connection data rate.
When Green LED is ON, the connection is at a 100Base-T rate.
When Amber LED is ON, the connection is at a 10Base-T rate.
Resets the wireless voice gateway. It may take 5 to 30 minutes to find
and lock on the appropriate communications channels.
Press and hold the RESET button for five seconds or longer to restore the
factory default settings.
For Windows only, you can use the USB port to connect a PC to the
B
6
