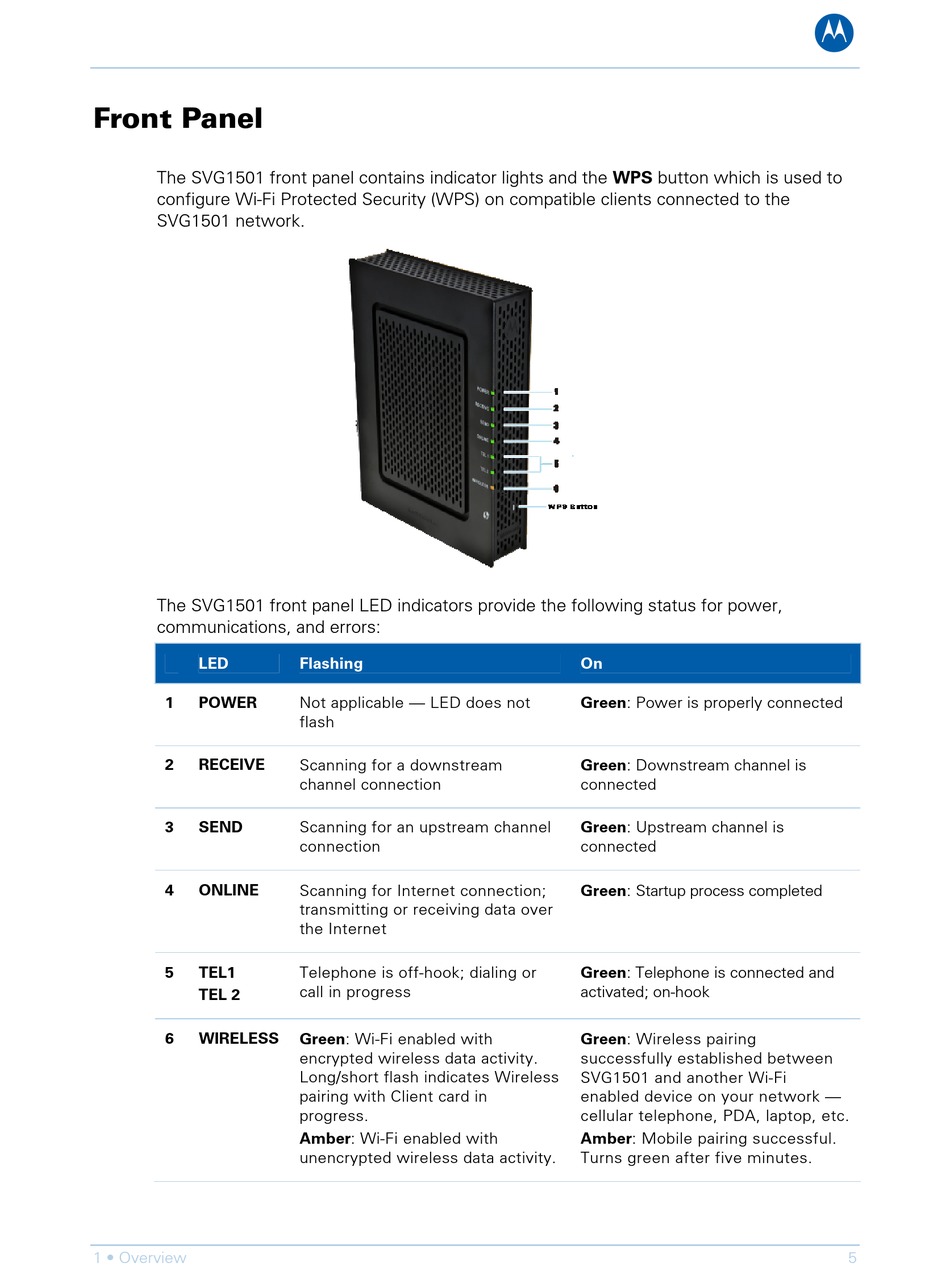

Front Panel

The SVG1501 front panel contains indicator lights and the WPS button which is used to
configure Wi-Fi Protected Security (WPS) on compatible clients connected to the
SVG1501 network.
The SVG1501 front panel LED indicators provide the following status for power,
communications, and errors:
LED
1
POWER
2
RECEIVE
3
SEND
4
ONLINE
5
TEL1
TEL 2
6
WIRELESS
1 • Overview
Flashing
Not applicable — LED does not
flash
Scanning for a downstream
channel connection
Scanning for an upstream channel
connection
Scanning for Internet connection;
transmitting or receiving data over
the Internet
Telephone is off-hook; dialing or
call in progress
Green: Wi-Fi enabled with
encrypted wireless data activity.
Long/short flash indicates Wireless
pairing with Client card in
progress.
Amber: Wi-Fi enabled with
unencrypted wireless data activity.
On
Green: Power is properly connected
Green: Downstream channel is
connected
Green: Upstream channel is
connected
Green: Startup process completed
Green: Telephone is connected and
activated; on-hook
Green: Wireless pairing
successfully established between
SVG1501 and another Wi-Fi
enabled device on your network —
cellular telephone, PDA, laptop, etc.
Amber: Mobile pairing successful.
Turns green after five minutes.
B
5
