P C
ORT ONFIGURATION
• A trunk formed with another switch using LACP will automatically be
assigned the next available trunk ID.
• If more than eight ports attached to the same target switch have LACP
enabled, the additional ports will be placed in standby mode, and will
only be enabled if one of the active links fails.
• All ports on both ends of an LACP trunk must be configured for full
duplex, either by forced mode or auto-negotiation.
• Trunks dynamically established through LACP will also be shown in the
Member List on the Trunk Membership menu (see page 8-9).
Command Attributes
• Member List (Current) – Shows configured trunks (Unit, Port).
• New – Includes entry fields for creating new trunks.
- Unit – Stack unit. (Range: 1-8)
- Port – Port identifier. (Range: 1-25/49)
Web – Click Port, LACP, Configuration. Select any of the switch ports
from the scroll-down port list and click Add. After you have completed
adding ports to the member list, click Apply.
8-12

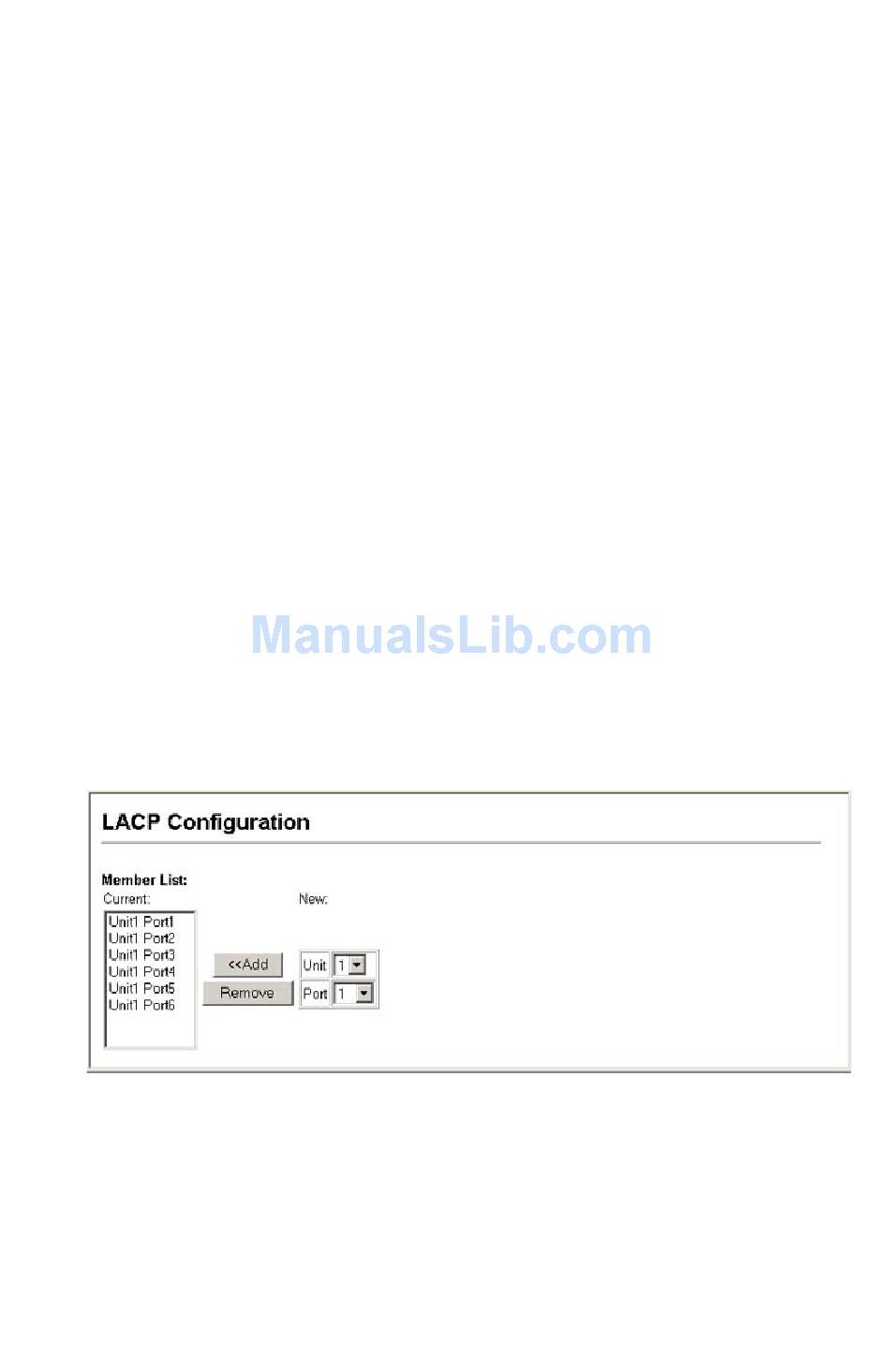

Figure 8-4 LACP Trunk Configuration
