Figure 11-11 Protocol Vlan Port Configuration - SMC Networks TigerStack II SMC8848M Management Manual

Membership by Port menu (page 13), these interfaces will admit traffic
of any protocol type into the associated VLAN.
• When a frame enters a port that has been assigned to a protocol VLAN,
it is processed in the following manner:
- If the frame is tagged, it will be processed according to the standard
rules applied to tagged frames.
- If the frame is untagged and the protocol type matches, the frame is
forwarded to the appropriate VLAN.
- If the frame is untagged but the protocol type does not match, the
frame is forwarded to the default VLAN for this interface.
Command Attributes
• Interface – Port or trunk identifier.
• Protocol Group ID – Group identifier of this protocol group.
(Range: 1-2147483647)
• VLAN ID – VLAN to which matching protocol traffic is forwarded.
(Range: 1-4093)
Web – Click VLAN, Protocol VLAN, Port Configuration. Select a a port
or trunk, enter a protocol group ID, the corresponding VLAN ID, and
click Apply.

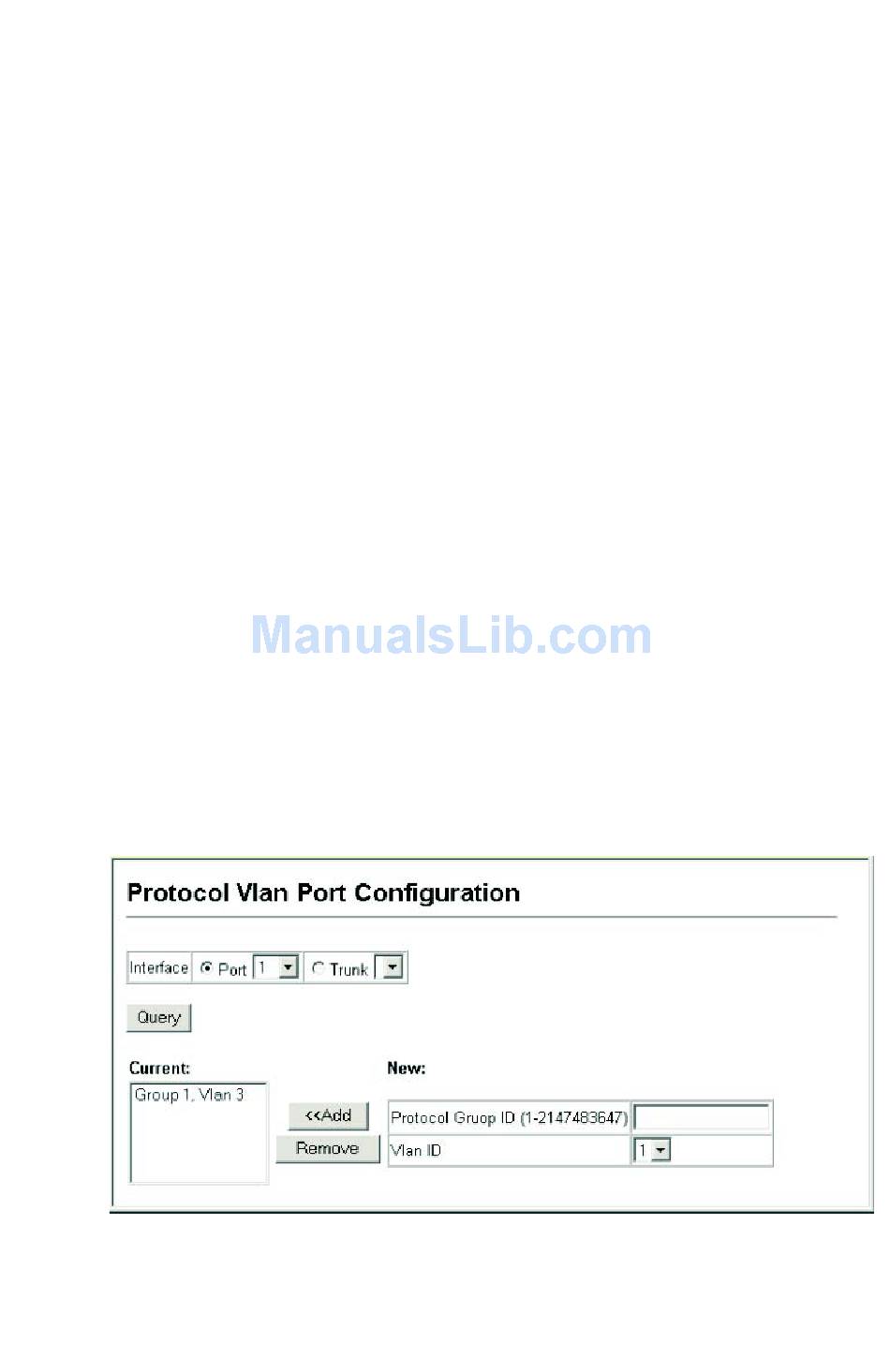

Figure 11-11 Protocol VLAN Port Configuration

C P
ONFIGURING
-B
ROTOCOL ASED
VLAN
S
11-21
