Downloading Configuration Settings from a Server

You can download the configuration file under a new file name and then
set it as the startup file, or you can specify the current startup
configuration file as the destination file to directly replace it. Note that the
file "Factory_Default_Config.cfg" can be copied to the TFTP server, but
cannot be used as the destination on the switch.
Web – Click System, File Management, Copy Operation. Choose "tftp to
startup-config" or "tftp to file," and enter the IP address of the TFTP
server. Specify the name of the file to download, select a file on the switch
to overwrite or specify a new file name, and then click Apply.

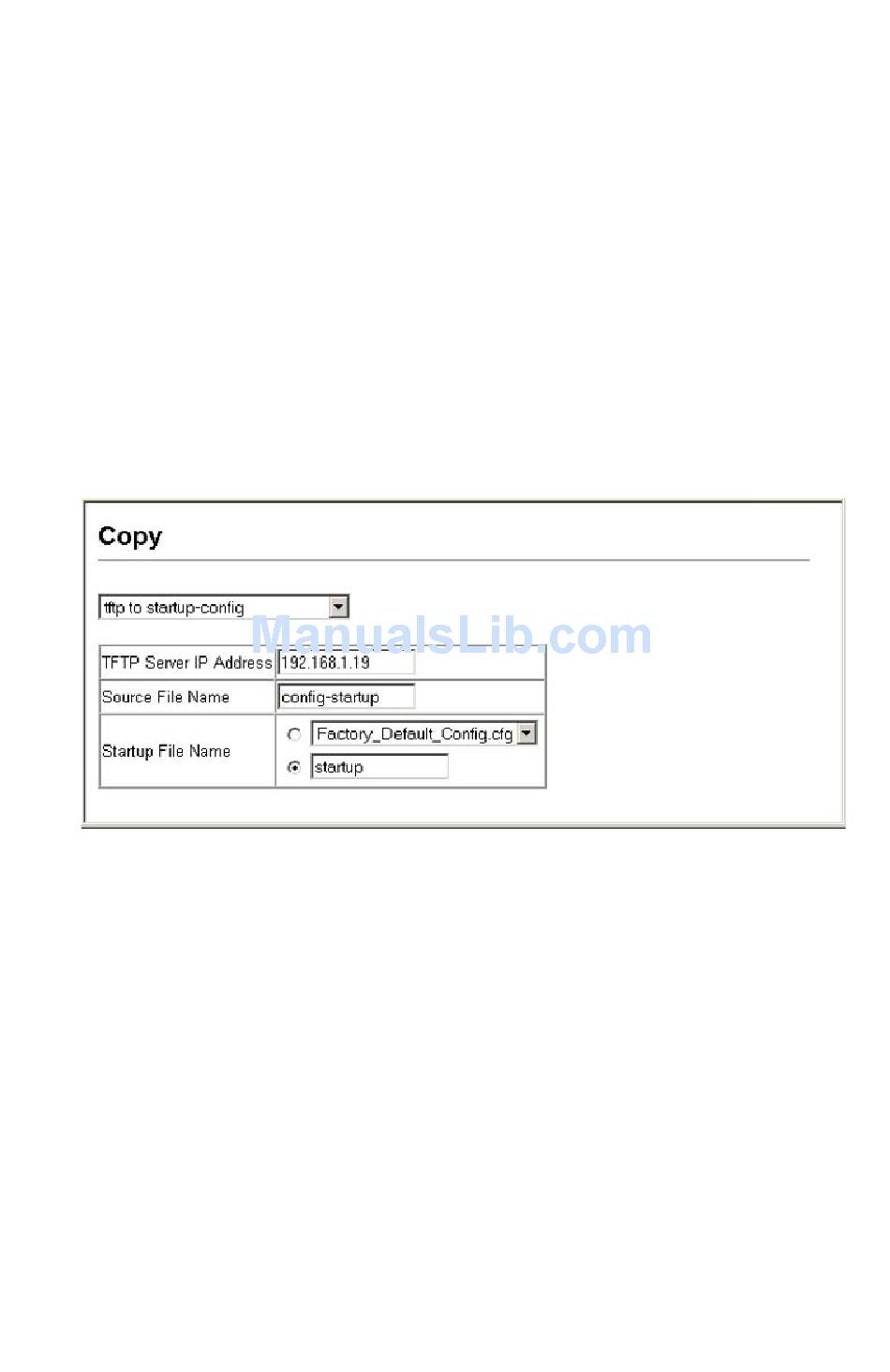

Figure 4-14 Downloading Configuration Settings for Start-Up

4-34
