B
M
ASIC
ANAGEMENT
Manual Configuration
Web – Click IP, General, Routing Interface. Select the VLAN through
which the management station is attached, set the IP Address Mode to
"Static," and specify a "Primary" interface. Enter the IP address, and
subnet mask, then click Apply.
Click IP, Global Setting. If this stack and management stations exist on
other network segments, then specify the default gateway, and click Apply.
4-10
T
ASKS

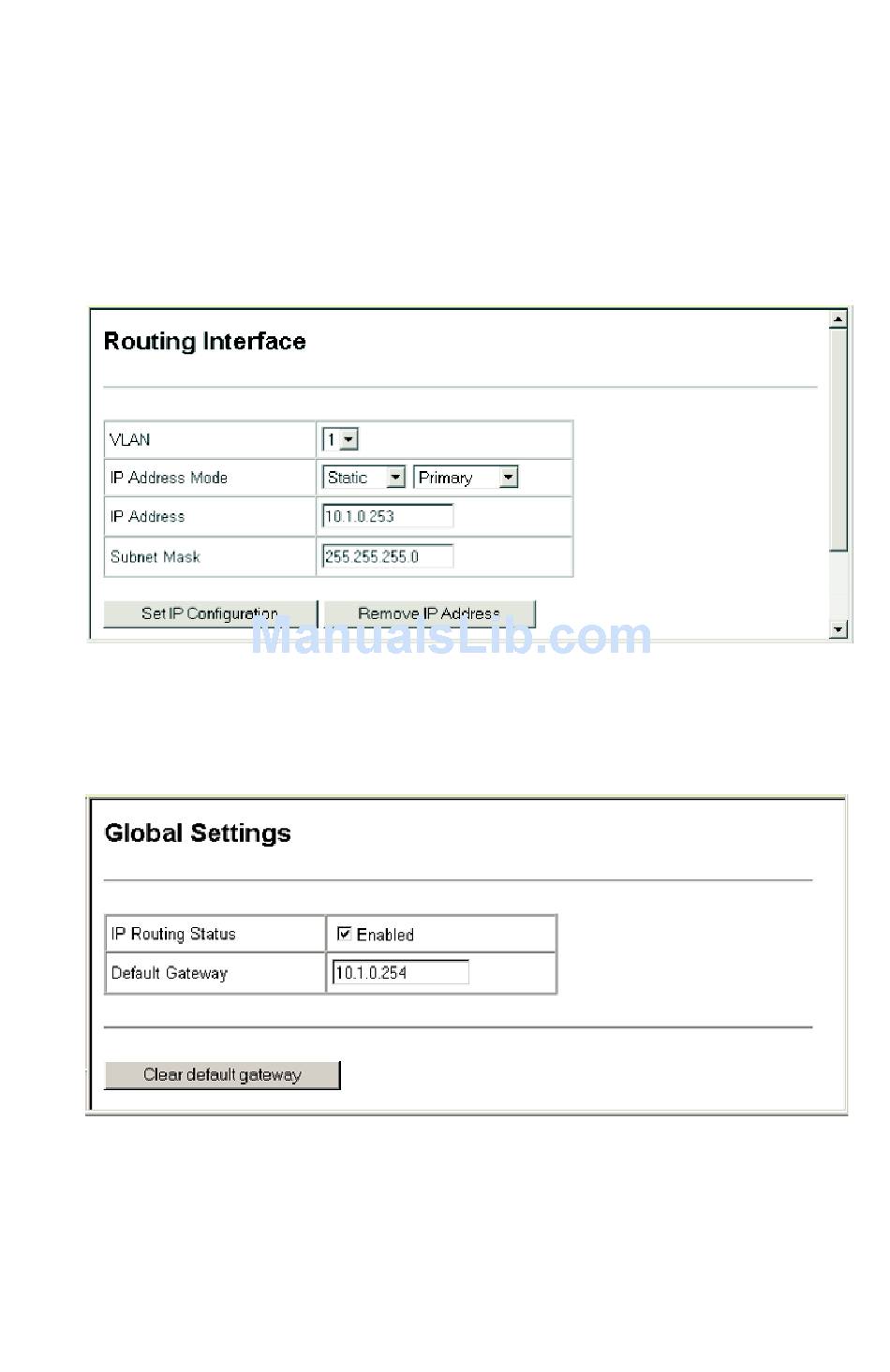

Figure 4-4 IPv4 Interface Configuration - Manual
Figure 4-5 Default Gateway
