Top Display Area; Main Display Area (Home Screen) - Trane IntelliPak with Symbio 800 Programming Manual

Top Display Area

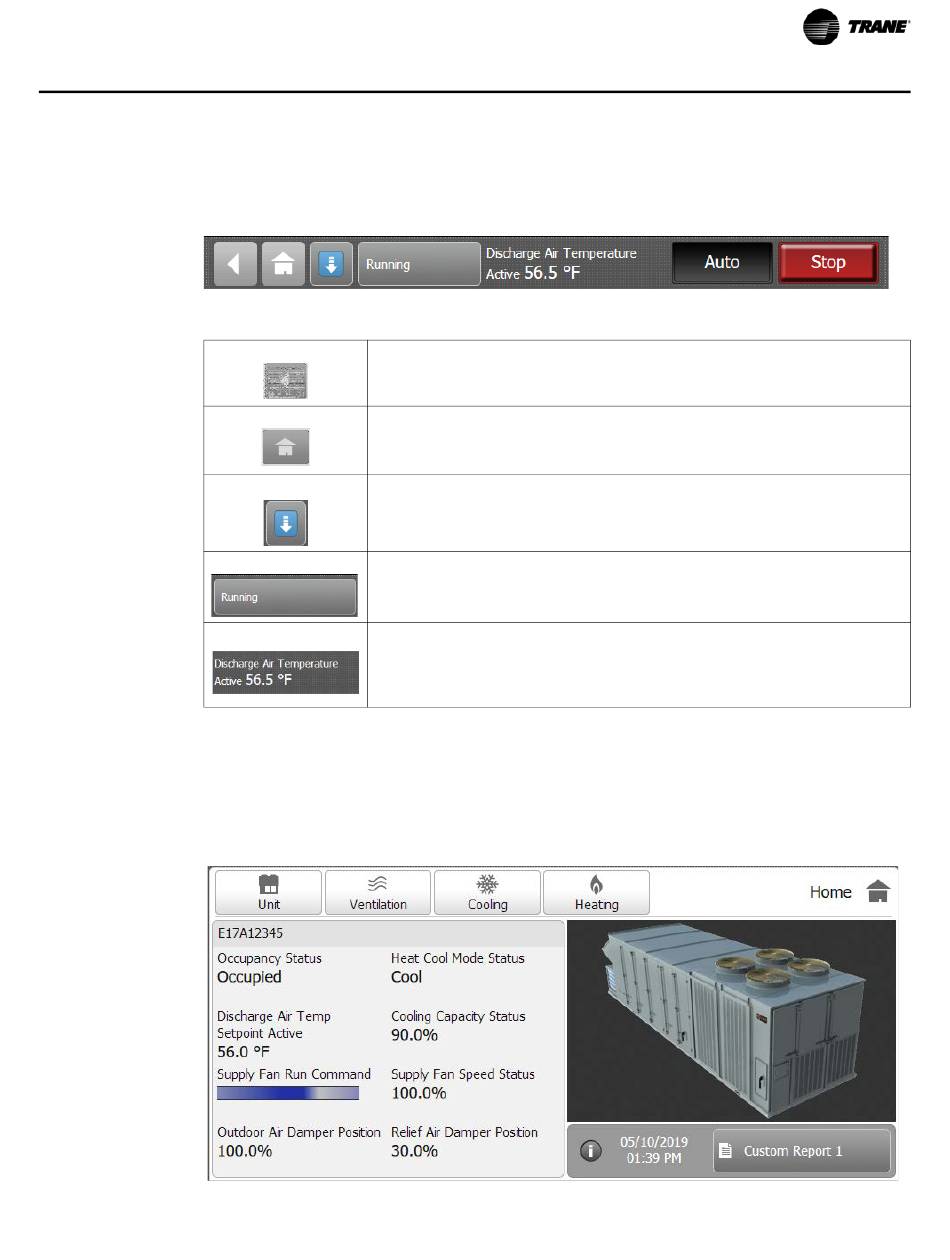

Figure 4.

Main Display Area (Home Screen)

The Home screen is an overview of the unit and its operation. High-level status information is
presented so that a user can quickly understand the mode of operation of the unit and navigate
quickly to other areas of the display for more detail.
Figure 5.
RT-SVP011E-EN
TD7 menu bar
The Back button, when touched, returns to the previous screen visited.
The Home button, when touched, navigates to the home page.
The Manual Override button, when shown, indicates at least one manual override is active.
Touch this icon to navigate to the Manual Control Settings page.
The Operating Modes button navigates to the Operating Modes screen.
The Space Temperature Active or Discharge Air Temperature Active, depending on
configuration is displayed in the header Data Area.
TD7 Main display area of home screen
