Deleting Points; Recycled Points; Creating A Data Log - Trane IntelliPak with Symbio 800 Programming Manual

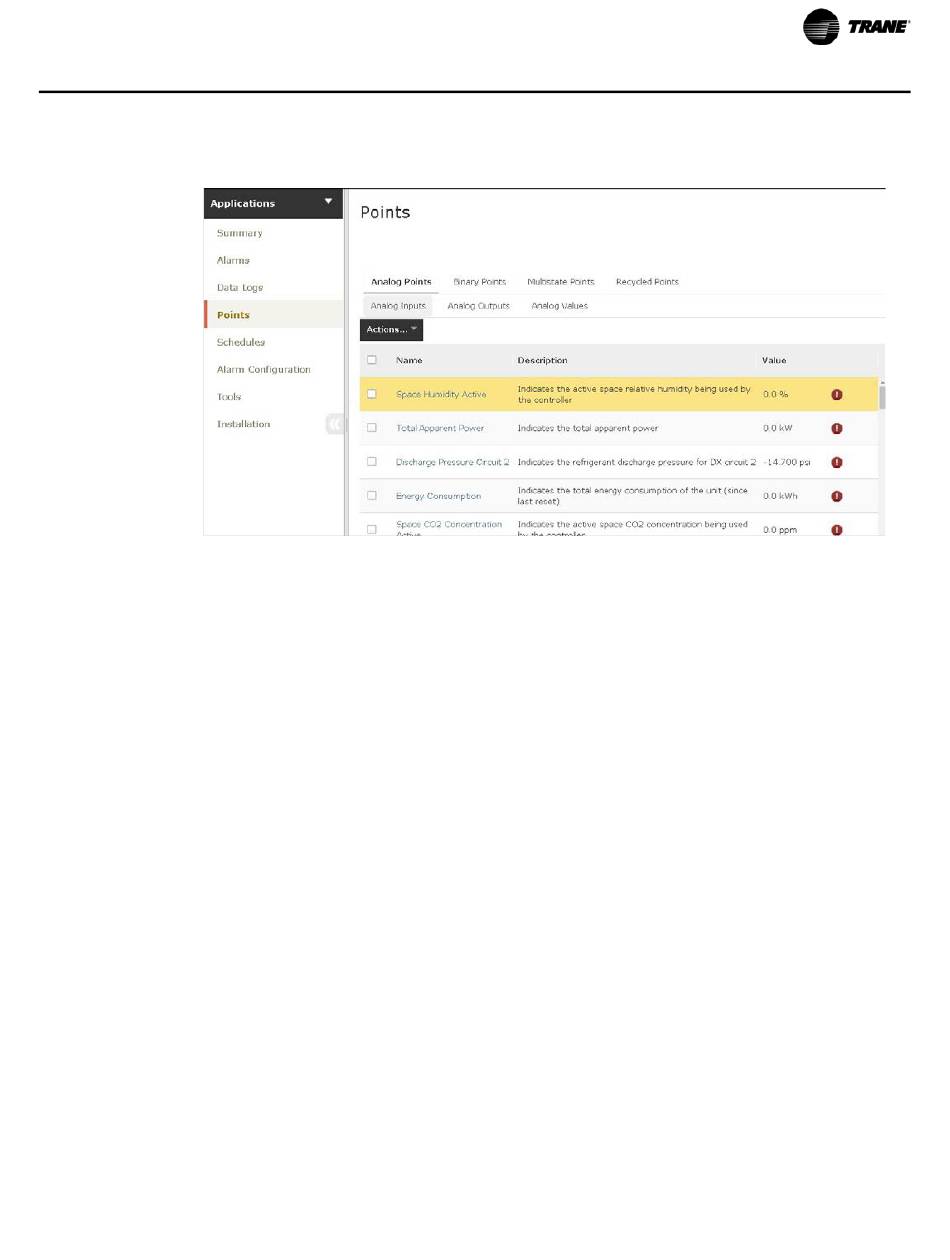

Figure 49. Symbio™ UI Points

Deleting Points

Deleting points is convenient for removing unwanted data from the controller communication
interface. The point is not permanently deleted; rather the point is simply moved to Recycled
Points.
All point overrides, priority array owners, and status are reset to factory settings.
To delete a point:
1. Click Points in left navigation pane.
2. Navigate to Analog, Binary, or Multistate points and select the point(s) using check box left of
3. Select Actions pull-down menu, then Delete > Yes – Delete to confirm the action. No – Cancel

Recycled Points

Points that have been deleted from the controller interface are moved to Recycled Points. In this
location the points can be restored to the controller interface and used once again to communicate
data via BACnet
To view recycled points and restore points:
1. Click Points in left navigation pane.
2. Click Recycled Points to view all deleted points.
3. To resort a point, click the box left of the point name, then click Restore.

Creating a Data Log

1. Click Points in left navigation pane.
2. Navigate to Analog, Binary, or Multistate points and select the point(s) using check box left of
3. Select Actions pull-down menu, then Log Data and complete the settings.
4. Select Data Log Type and edit settings for the type.
RT-SVP011E-EN
name.
to cancel action.
®
, MODBUS
name.
a. Data collection start on a schedule, click Next to setup schedule information.
® ®
or LonTalk .
Symbio™ UI
71
