Binary Overrides

The Binary Override screen provides buttons with point state text that is used to set the current
value. Multistate overrides with four or fewer states have similar screen functions as the binary
override screen.
Touch a button in the override setting area to select a state. Touch the Apply or Save button to retain
your changes.

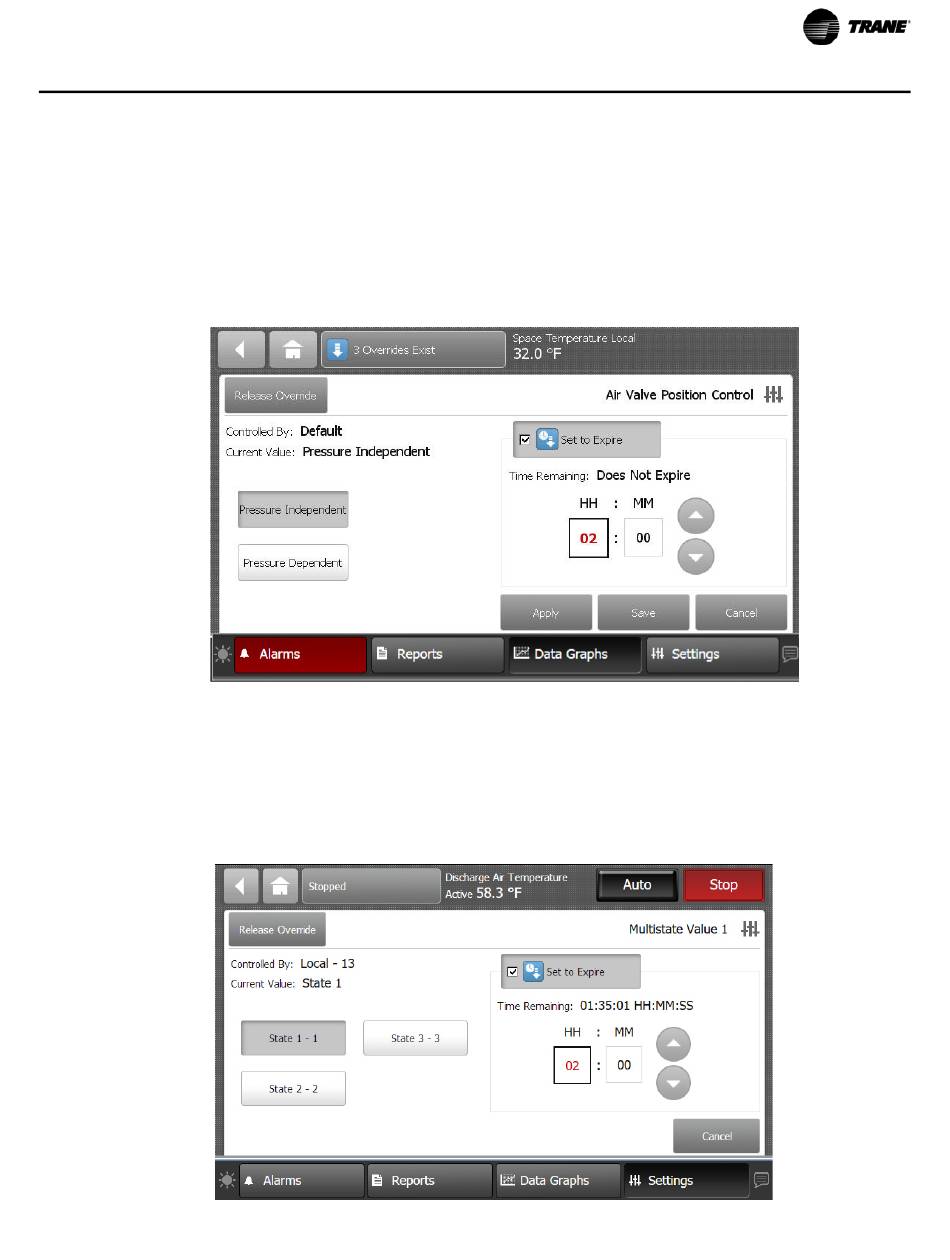

Figure 19. Binary Override screen

Multistate Overrides

Multistate override screens that contain five or more items will contain up and down arrow buttons
in the Override setting area.
Use the up and down arrow buttons to select a state. Touch the Apply or Save button to retain your
changes.
Figure 20. Multistate Override screen (five or more states)
