Trane IntelliPak with Symbio 800 Programming Manual page 43

9. Touch the View Data Graph button to display the new graph
Note: Depending on the sampling rate, the custom data graph may be empty for several hours.
You can make changes to the way data is presented on the graph at anytime. Touch the zoom-in
icon
also enables back and forward arrows that allow you to view data at various times of the day.

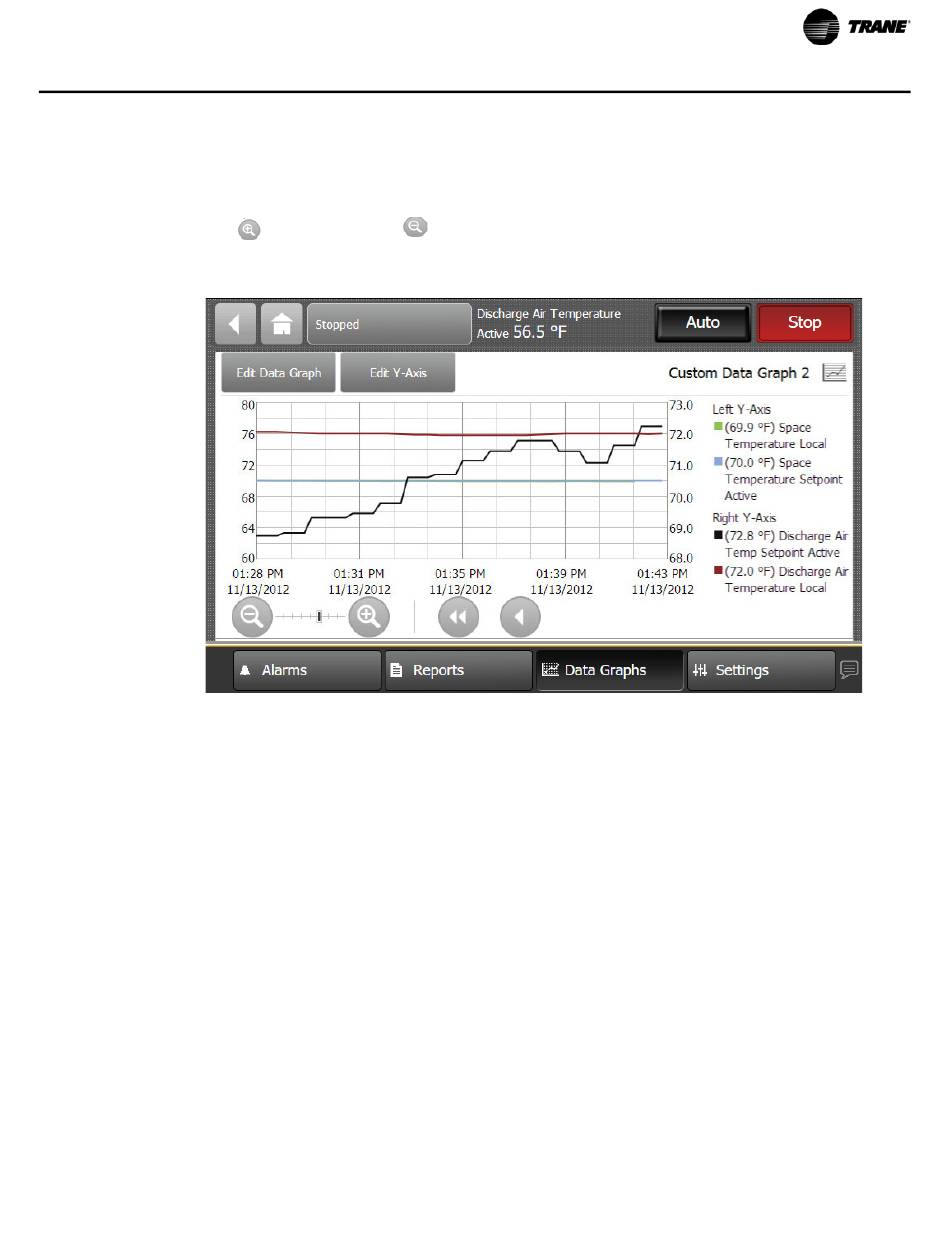

Figure 33. Viewing the data graph
Editing the Y-Axis
The default values on the right and left Y-axes can be changed according to your specifications.
1. Touch the Edit Y-Axis button located on the top portion of the Custom Data Graph screen.
2. Touch the Manually Select Range box for either the left or right Y-axis.
3. Touch the edit button next to one of the two value ranges.
4. Select a new value and then touch Enter to save.
5. Repeat steps 2 through 4 until all preferred changes have been made.
RT-SVP011E-EN
and zoom-out icon
The Edit Y-Axis screen appears.
The Keypad screen appears.
to either increase or decrease the viewable time frame. This action
TD7 Display
(Figure 33).
43
