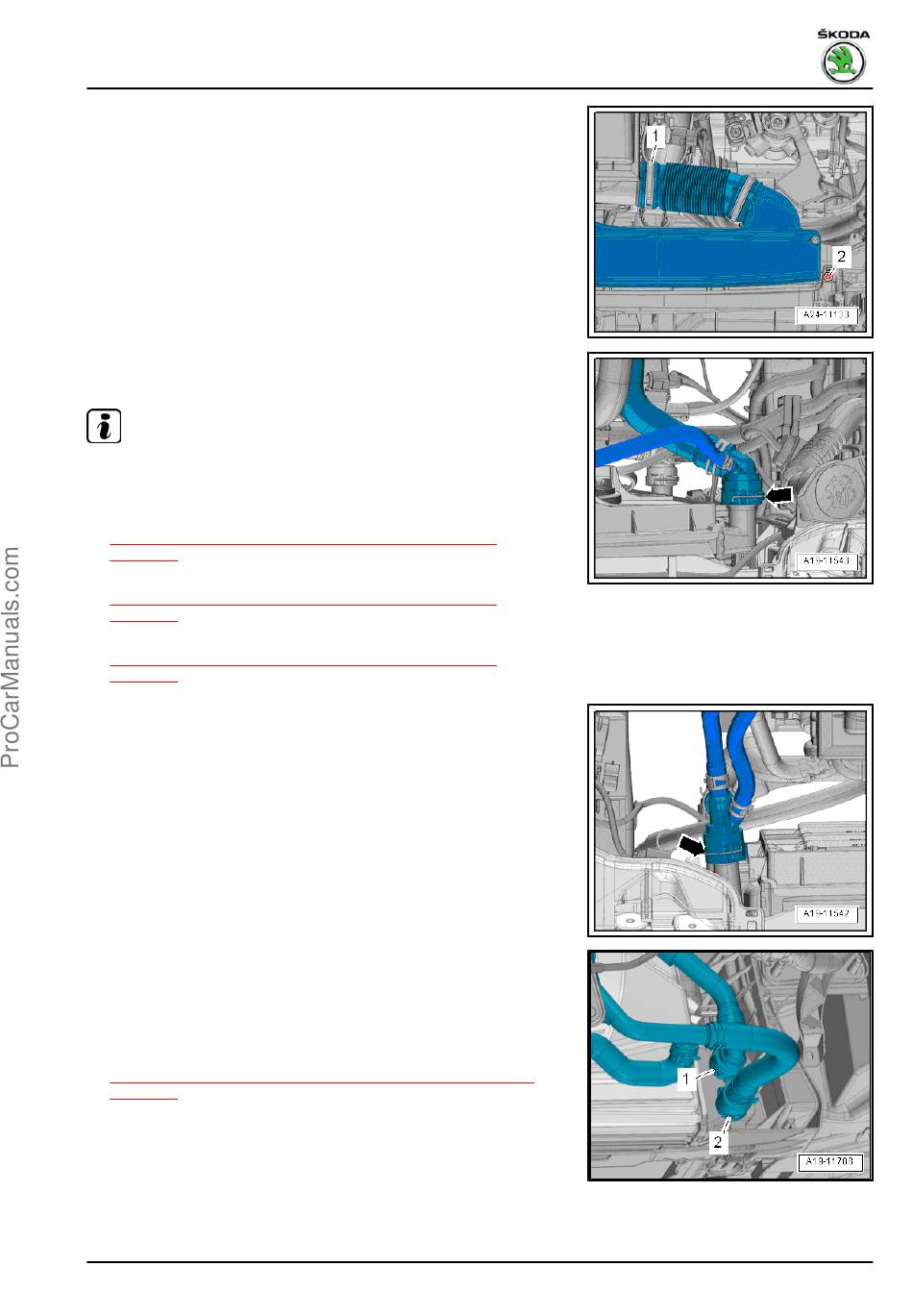

– Release screw left and right arrow -2-.
– Unclip and remove the air guide on the lock carrier.
– Raise holding clamp -arrow- and remove top left coolant hose
from radiator.
Note
Depending on the vehicle version, 3 radiator versions are instal‐
led.
♦ Radiator Version 1
⇒ "4.1 Radiator version 1 - Summary of components",
page 173 .
♦ Radiator Version 2
⇒ "4.2 Radiator version 2 - Summary of components",
page 175 .
♦ Radiator Version 3
⇒ "4.3 Radiator version 3 - Summary of components",
page 176 .
Vehicles with radiator version 1
– Raise holding clamp -arrow- and disconnect coolant hose right
above radiator for charge air circuit.
Vehicles with radiator versions 2 and 3:
– Raise holding clamps -1- and remove coolant hose from
charge air circuit cooler.
Continued for all vehicles
– Removing fan shroud
⇒ "4.7 Removing and installing fan shroud for radiator fan",
page 182 .
– Disconnect battery ⇒ Electrical System; Rep. gr. 27 .
– Remove battery and battery tray ⇒ Electrical System; Rep.
gr. 27 .
Octavia III 2013 ➤ , Octavia III 2014 ➤
1.2/63; 77 kW TSI engine - Edition 11.2014
1. Removing and installing engine
