Communication Settings Panel

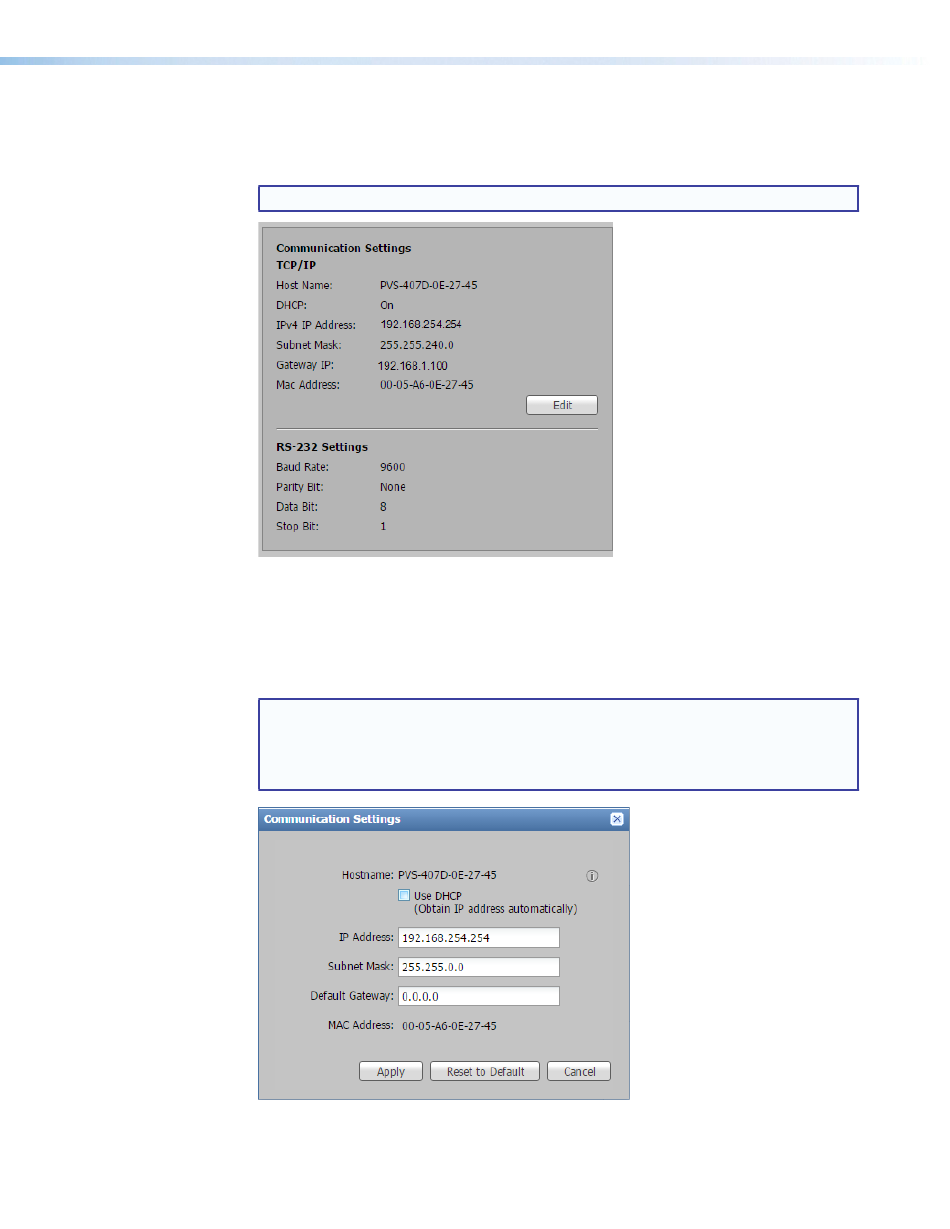

The Communication Settings panel is split in two areas: TCP/IP and RS-232
Settings.
NOTE: The RS-232 settings are read only, and can be changed using PCS.
Figure 50.
TCP/IP
This section displays host name, DHCP setting, IPv4 IP address, subnet mask, gateway
IP, and MAC address information.
Click on the Edit button to open a dialog box to change the TCP/IP settings.
NOTES:
• MAC address cannot be changed.
• The host name is generated from the device name, and it can only be changed in
the
Figure 51.
Communication Settings Panel
panel, or by using PCS or SIS commands.
Device Info
Communication Settings Panel - TCP/IP
PVS 407D • Using the Internal Web Page 66
