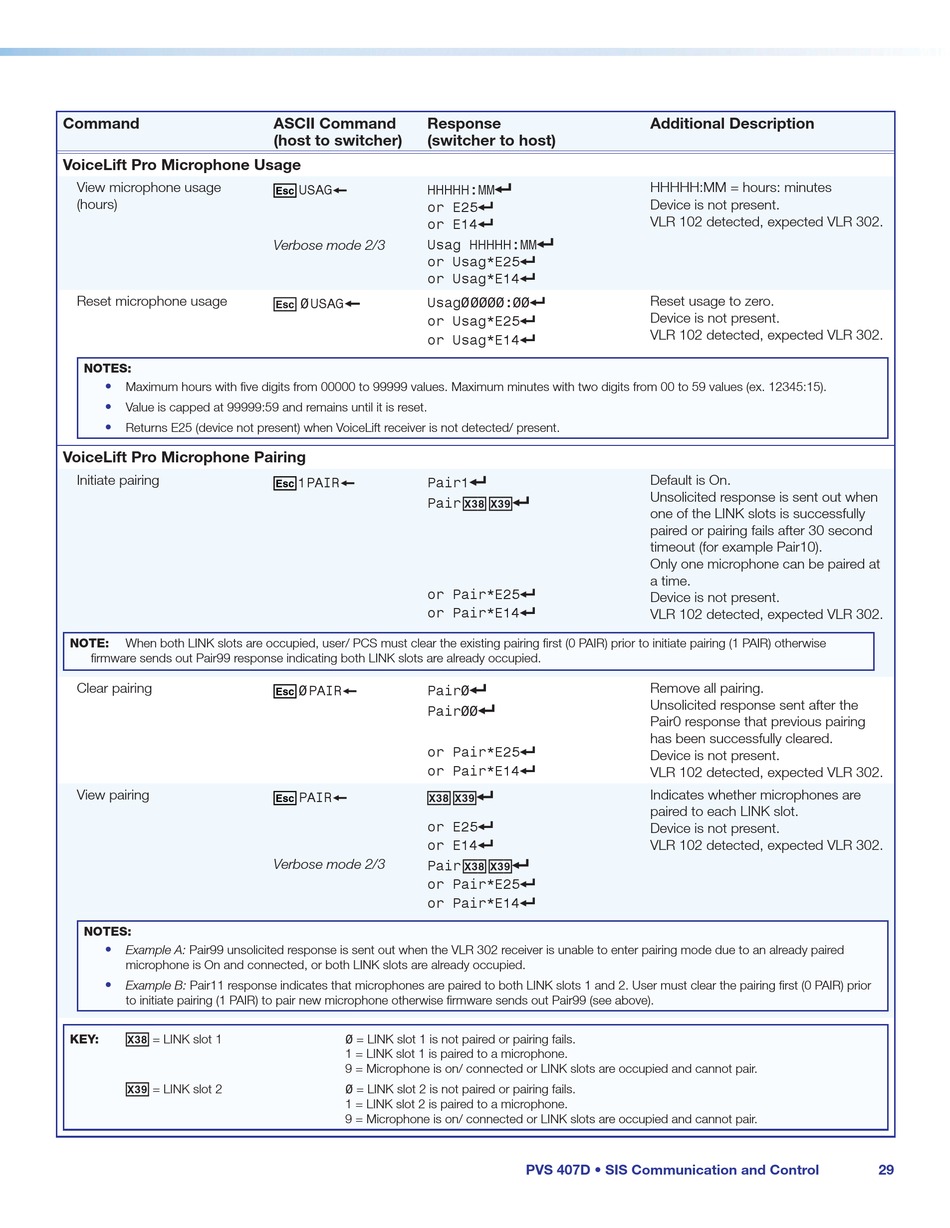

Extron electronics PVS 407D User Manual page 35

Command
VoiceLift Pro Microphone Usage
View microphone usage
(hours)
Reset microphone usage
NOTES:
•
Maximum hours with five digits from 00000 to 99999 values. Maximum minutes with two digits from 00 to 59 values (ex. 12345:15).
•
Value is capped at 99999:59 and remains until it is reset.
•
Returns E25 (device not present) when VoiceLift receiver is not detected/ present.
VoiceLift Pro Microphone Pairing
Initiate pairing
When both LINK slots are occupied, user/ PCS must clear the existing pairing first (0 PAIR) prior to initiate pairing (1 PAIR) otherwise
NOTE:
firmware sends out Pair99 response indicating both LINK slots are already occupied.
Clear pairing
View pairing
NOTES:
•
Example A: Pair99 unsolicited response is sent out when the VLR 302 receiver is unable to enter pairing mode due to an already paired
microphone is On and connected, or both LINK slots are already occupied.
•
Example B: Pair11 response indicates that microphones are paired to both LINK slots 1 and 2. User must clear the pairing first (0 PAIR) prior
to initiate pairing (1 PAIR) to pair new microphone otherwise firmware sends out Pair99 (see above).
X3*
= LINK slot 1
KEY:
X3(
= LINK slot 2
ASCII Command Response
(host to switcher) (switcher to host)
E
USAG} HHHHH:MM
or E25
or E14
Usag HHHHH:MM
Verbose mode 2/3
or Usag*E25
or Usag*E14
E
} Usag00000:00
0 USAG
or Usag*E25
or Usag*E14
E
1PAIR} Pair1
Pair
or Pair*E25
or Pair*E14
E
0 PAIR} Pair0
Pair00
or Pair*E25
or Pair*E14
E X3* X3(]
PAIR}
or E25
or E14
Verbose mode 2/3
Pair
or Pair*E25
or Pair*E14
0 = LINK slot 1 is not paired or pairing fails.
1 = LINK slot 1 is paired to a microphone.
9 = Microphone is on/ connected or LINK slots are occupied and cannot pair.
0 = LINK slot 2 is not paired or pairing fails.
1 = LINK slot 2 is paired to a microphone.
9 = Microphone is on/ connected or LINK slots are occupied and cannot pair.
]
]
]
]
]
]
]
]
]
]
X3* X3(]
]
]
]
]
]
]
]
]
X3* X3(]
]
]
PVS 407D • SIS Communication and Control
Additional Description
HHHHH:MM = hours: minutes
Device is not present.
VLR 102 detected, expected VLR 302.
Reset usage to zero.
Device is not present.
VLR 102 detected, expected VLR 302.
Default is On.
Unsolicited response is sent out when
one of the LINK slots is successfully
paired or pairing fails after 30 second
timeout (for example Pair10).
Only one microphone can be paired at
a time.
Device is not present.
VLR 102 detected, expected VLR 302.
Remove all pairing.
Unsolicited response sent after the
Pair0 response that previous pairing
has been successfully cleared.
Device is not present.
VLR 102 detected, expected VLR 302.
Indicates whether microphones are
paired to each LINK slot.
Device is not present.
VLR 102 detected, expected VLR 302.
