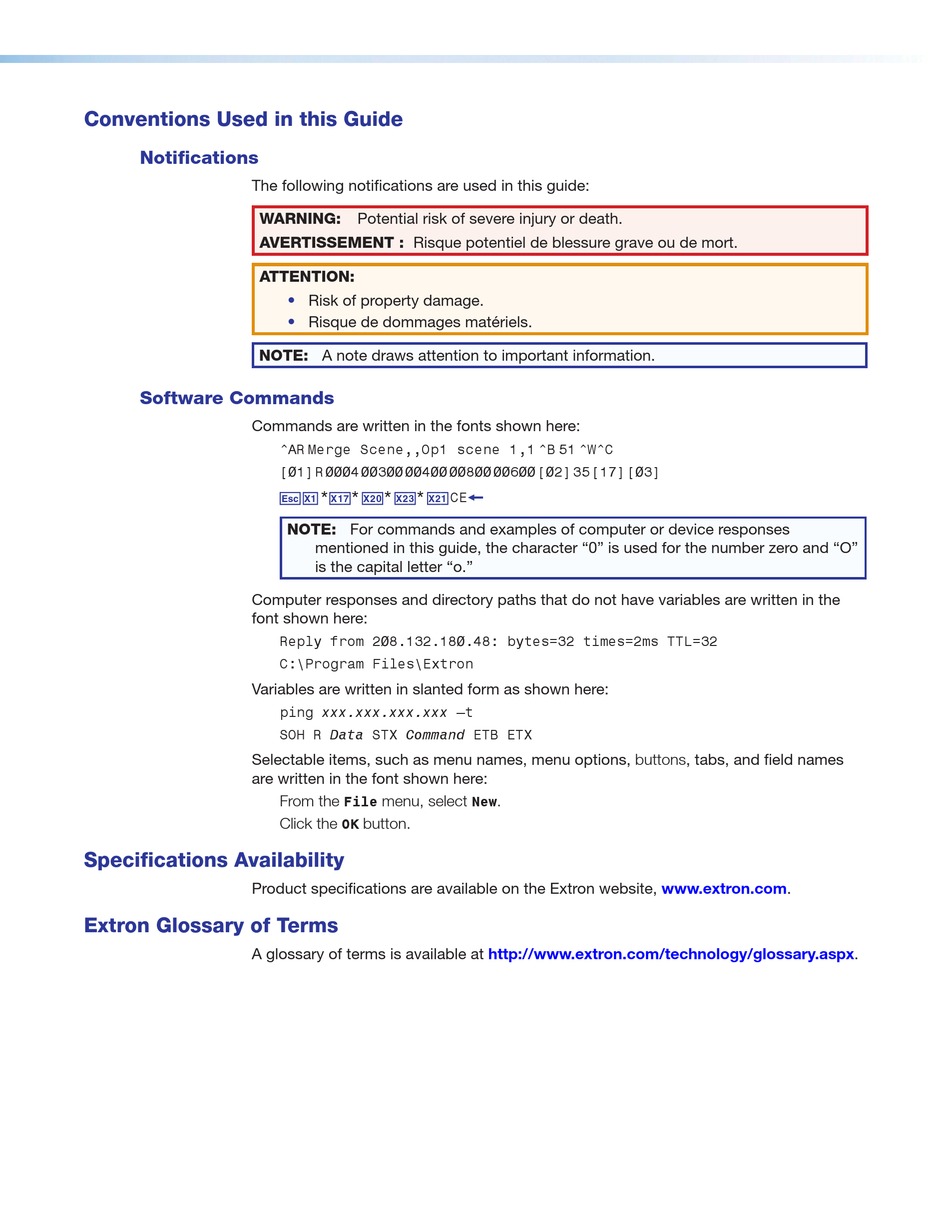

Conventions Used in this Guide
Notifications
The following notifications are used in this guide:
WARNING:
AVERTISSEMENT : Risque potentiel de blessure grave ou de mort.
ATTENTION:
NOTE: A note draws attention to important information.
Software Commands
Commands are written in the fonts shown here:
Computer responses and directory paths that do not have variables are written in the
font shown here:
Variables are written in slanted form as shown here:
Selectable items, such as menu names, menu options, buttons, tabs, and field names
are written in the font shown here:
Specifications Availability
Product specifications are available on the Extron website, www.extron.com.
Extron Glossary of Terms
A glossary of terms is available at http://www.extron.com/technology/glossary.aspx.
Potential risk of severe injury or death.
• Risk of property damage.
• Risque de dommages matériels.
^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C
[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]
*X1&* X2)* X2#*
E X! X2!
CE
NOTE: For commands and examples of computer or device responses
mentioned in this guide, the character "0" is used for the number zero and "O"
is the capital letter "o."
Reply from 208.132.180.48: bytes=32 times=2ms TTL=32
C:\Program Files\Extron
ping xxx.xxx.xxx.xxx —t
SOH R Data STX Command ETB ETX
From the menu, select
File
Click the button.
OK
}
.
New
