Network Settings Panel
In the Network Settings panel (see figure 48,
address, subnet mask, and gateway address for your DTP2 CrossPoint 82, and turn DHCP
on and off. You can also view the MAC address of the unit. To set the IP addresses:
1.
Click Edit in the lower-left corner of the Network Settings panel. The EDIT Network
Settings screen opens.

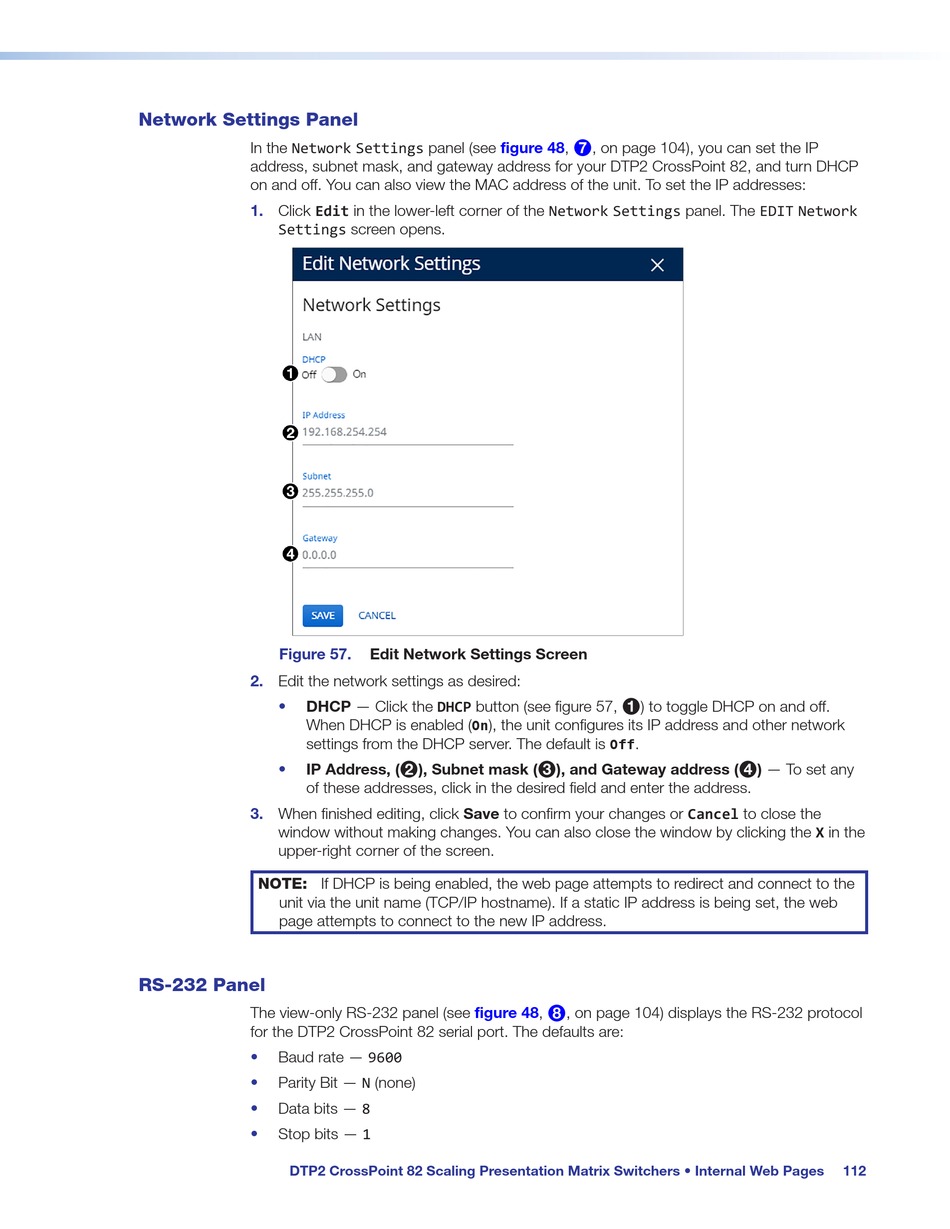

Figure 57.
2.
Edit the network settings as desired:
•
DHCP — Click the DHCP button (see figure 57,
When DHCP is enabled (
settings from the DHCP server. The default is
•
IP Address, (
of these addresses, click in the desired field and enter the address.
3.
When finished editing, click Save to confirm your changes or Cancel to close the
window without making changes. You can also close the window by clicking the X in the
upper-right corner of the screen.
NOTE: If DHCP is being enabled, the web page attempts to redirect and connect to the
unit via the unit name (TCP/IP hostname). If a static IP address is being set, the web
page attempts to connect to the new IP address.
RS-232 Panel
The view-only RS-232 panel (see figure 48,
for the DTP2 CrossPoint 82 serial port. The defaults are:
Baud rate — 9600
•
Parity Bit — N (none)
•
Data bits — 8
•
Stop bits — 1
•
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • Internal Web Pages
