New Configuration File

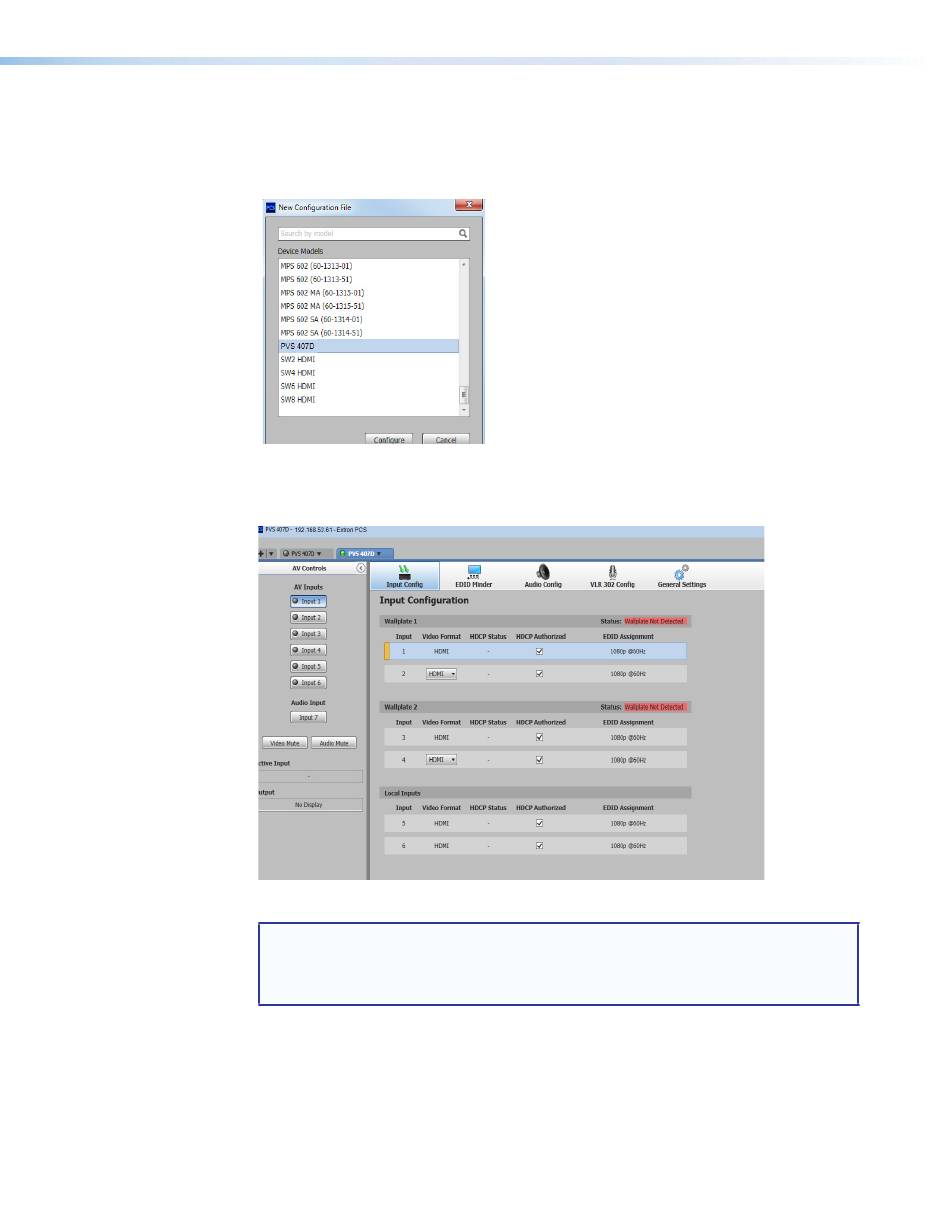

From the New Configuration File device selection list, either enter the model
name in the search field and press <Enter>, or scroll down to select the device and click
Configure.
Figure 15.
This opens in offline configuration (emulation mode) and the PVS 407D device input
configuration page appears.
Figure 16.
NOTE: The PVS 407D tab (top left) has a gray connection status indicator (circle)
that indicates there is no actual device connected and the software is running in
emulation mode. When an item on a menu screen is grayed out, that item is not
selectable at that time and may only be selectable when in a live (connected) mode.
To configure the emulated device, click the applicable item on the ribbon menu. For menu
details see the applicable sections (Input Configuration, EDID Minder, Audio
Config, and General Settings) within the Help file. See the
Menu section on the next page for how to open the Help file.
Any configurations made in emulation mode can be saved and uploaded to a connected
device later (see the
Configuration to Devices
Select the Device from the New Configuration File List.
Device Input Configuration Page.
Connect to a Device
section on page 43, for details).
PVS 407D • Using Extron Product Configuration Software
Using PCS — Device
section on page 40, and the Deploy
