Input 7 Connector Wiring

Input 7 is a dedicated audio-only input for an auxiliary, stereo, line-level analog audio
signal from an output source such as an iPod device or an MP3 player. Connect the cable
from the source to this 5-pole captive screw connector. The connector can be wired as
balanced or unbalanced as shown below.
NOTE: Input 7 is audio only. No video signals are supported on this input.
Sleeves
Sleeve
Sleeve
Figure 65.
Tip
Ring
Tip
Ring
Balanced Audio Input
Tip
Tip
Unbalanced Stereo Input
Audio Input

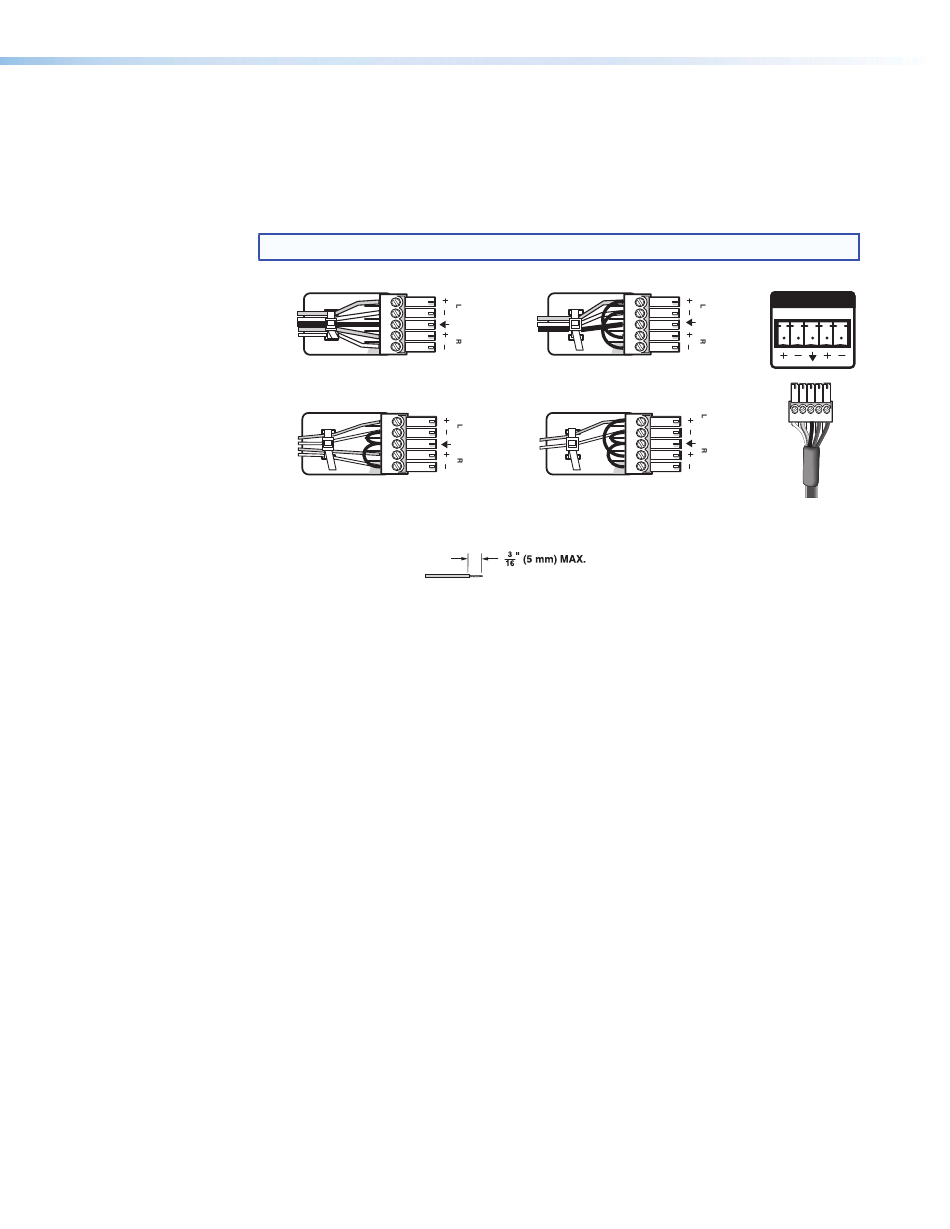

Input 7 Audio Wiring
Tip
Ring
Sleeve
Balanced Mono Input
(high impedance)
Tip
Sleeve
Unbalanced Mono Input
Do not tin the wires!
