Safety Instructions Safety Instructions • English Инструкция по технике безопасности • Русский WARNING: This symbol, , when used on the product, is intended to ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан alert the user of the presence of uninsulated dangerous voltage within the на...
Conventions Used in this Guide Notifications The following notifications are used in this guide: A warning indicates a situation that has the potential to result in death or WARNING: severe injury. ATTENTION: Attention indicates a situation that may damage or destroy the product or associated equipment.
........... 1 ....13 About This Guide ..........1 Host Device Connection ........13 About the XTP T USW 103 ......... 1 Simple Instruction Set Control ......13 Key Features ............2 SIS Programming Guide ....... 13 Command and Response Tables for SIS Commands ..........

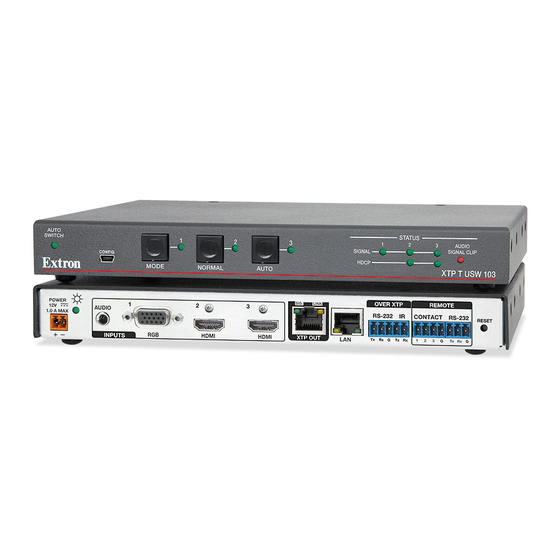

This guide contains installation, operation, and control procedures, and reference information for the XTP T USW 103 Universal Switcher. In this guide, the terms “XTP T USW 103” and “switcher” are used interchangeably to refer to the XTP T USW 103 Universal Switcher.
Ethernet pass-through port to reduce the amount of independent network drops required within a system. Remote power capability — To simplify integration, the XTP T USW 103 can be powered by an XTP CrossPoint matrix switcher or XTP Power Injectors.
Rear Panel Connectors • • Making Connections The XTP T USW 103 can be mounted in a rack, under a desk, or on a tabletop (see Mounting on page 27 for more mounting details). Audio Plugs.eps Rear Panel Connectors...
Page 10
2-pole captive screw connector (see Power Connection on page 8). The Power LED lights to indicate the device is receiving power. NOTE: The XTP T USW 103 can be powered remotely (see Remote power page 9). XTP T USW 103 • Installation...
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as shown (see figure 4). While holding the connector securely against the lacing bracket, use pliers or similar tools to tighten the tie wrap, then remove any excess length. XTP T USW 103 • Installation...
Connector Figure 5. TP Cable Termination Supported cables The XTP T USW 103 is compatible with CAT 5e, 6, 6a, and 7 shielded twisted pair (F/UTP, SF/UTP, and S/FTP) and unshielded twisted pair (U/UTP) cable. ATTENTION: • Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the XTP products.
The length of exposed wires is critical. • The ideal length is 3/16 inch (5 mm). • Longer bare wires can short together • Shorter wires are not as secure in the connectors and could be pulled out. XTP T USW 103 • Installation...
Figure 8. Power Wiring The XTP T USW 103 can be connected to a local power supply. WARNING: Electric shock hazard. The two power cord wires must be kept separate while the power supply is plugged in. Remove power before wiring.
Remote power The XTP T USW 103 can be powered remotely through an XTP Power Injector or through an XTP matrix switcher. ATTENTION: XTP remote power is intended for indoor use only. No part of the network that uses XTP remote power should be routed outdoors.
Operation This section describes the front panel features of the XTP T USW 103 and provides front panel operations. Topics in this section include: • Front Panel Features • Front Panel Operation Front Panel Features AUTO STATUS SWITCH AUDIO SIGNAL CLIP...
Press and hold (for about 8 seconds) inputs 1 and 2 simultaneously until the Auto Switch LED turns off. This is the default switch mode. EDID To manage EDID on the XTP T USW 103, use the XTP System Configuration Software (see XTP System Configuration Software...
DO NOT a mode 1 reset by mistake, operate the firmware version cycle power to the device to that results from this mode return the firmware version reset. running prior to the reset. XTP T USW 103 • Operation...
To connect directly to an XTP T USW 103, connect the computer to the XTP T USW 103 through the front panel USB Config port or the rear panel RS-232 connector. The protocol for the serial port is as follows: 9600 baud, no parity,...
= priority to the highest numbered active input = priority to the lowest numbered active input = Black signal resolution = 720p @ 50 Hz = 720p @ 60 Hz = 1080p @ 60 Hz XTP T USW 103 • SIS Configuration and Control...
Page 22
Recall an input preset NOTE: = Enable or disable = disable = enable = Pixel phase = default) 0-255 = Horizontal or vertical shift = default) 65,535 32,768 = Preset number XTP T USW 103 • SIS Configuration and Control...
= non-HDCP compliant source = Video signal status = video or TMDS not detected = video or TMDS detected = EDID communication output resolution See the EDID Emulation Table on page 14. XTP T USW 103 • SIS Configuration and Control...
XTP System Configuration Software This section contains installation and configuration procedures for the XTP System Configuration Software for configuring and controlling the XTP T USW 103. Topics in this section include: Installing the XTP System Configuration Software • • Using the XTP System Configuration Software The XTP System Configuration Software is convenient, user-friendly control software for configuring an XTP system or individual XTP devices.
Program Files folder, and places four icons into a group folder named “Extron Electronics\XTP System Configuration.” Using the XTP System Configuration Software The XTP T USW 103 can be controlled directly from the front panel config port or remotely from an XTP matrix switcher. Connections When opening the XTP System Configuration Software, the Connections screen opens first.
NOTE: The signal indicators on the AV input buttons display green when a signal is present on the corresponding input or gray when there is no signal present. XTP T USW 103 • XTP System Configuration Software...
Page 27
Auto Memory Memory. Auto Memory recalls input and image settings for signals that have previously been applied. When it is disabled, the XTP T USW 103 treats every newly applied input as a new source. HDCP authorization — Select either...
Page 28
Save presets — To save a preset, select one from the list of presets and click the Save button. Preset Recall presets — To recall a saved preset, select the desired preset from the list of presets and click the button. Recall Preset XTP T USW 103 • XTP System Configuration Software...
Page 29
Analog audio gain — Click and drag the handle of the slider, or enter a value in the Gain field or click the arrow to adjust the analog input gain. Down XTP T USW 103 • XTP System Configuration Software...
Factory reset Click the button to reset the transmitter to factory settings except for Factory Reset firmware. NOTE: This is the same as the SIS command. ZXXX XTP T USW 103 • XTP System Configuration Software...
Custom loaded or saved EDID options are displayed in yellow. Output resolutions are displayed in green. Figure 18. EDID Minder Screen XTP T USW 103 • XTP System Configuration Software...
Page 32
Hold <Ctrl> and click the desired outputs in the Connected Outputs pane. The Common tab appears, listing the EDID settings common among the selected outputs. Timings Select the desired common EDID setting. The EDID will be shown in the Available EDID pane. XTP T USW 103 • XTP System Configuration Software...
• Updating Firmware with Firmware Loader Mounting The XTP T USW 103 can be placed on a tabletop, mounted in a rack, or mounted underneath a desk. Tabletop Placement Attach the provided rubber feet to the bottom four corners of the enclosure.
Updating Firmware with Firmware Loader To upload and update firmware for the XTP T USW 103, download the new firmware to a connected computer and upload the firmware with the Firmware Loader utility. Downloading Extron Firmware Loader Figure 19. Locating Firmware Loader Software on the Extron Website On the Extron website, www.extron.com, click the...
On the left sidebar, click the link. Firmware Navigate to the XTP T USW 103. Ensure the available firmware version is a later version than the current one on the device. NOTE: The firmware release notes are a PDF file that provides details about the changes between different firmware versions.
Open Firmware Loader and establish a connection between the computer and the device. The Add Device... dialog box opens. Figure 21. Add Device... Dialog Box Select XTP T USW 103 from the drop-down list. Device Name Select the method of connection from the drop-down list.
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
