CONNECTORS
2.1

Cabling Connection Types

2.1.1 Coaxial Cable Connections

Coupling Type
Threaded
(Type 'N' shown)
The HPOD SSPA uses Type 'N' coaxial cables. Type 'N' Coaxial cables (plugs) and their mating
connectors (jacks/sockets) are available in a threaded coupling style (Figure 2-1). The jack for
this coupling style features external threads. The plug shell features internal threads and has either
a knurled outer surface (to permit hand tightening of the connection) or hex flats (to
accommodate torqued installation).
Connection Instructions – Engage the plug onto the jack threads, and then turn the plug
clockwise until it is fully threaded onto the jack. Do not over-tighten the connection.
External Connectors and Pinouts
Chapter 2. EXTERNAL
Connector Type
Plug

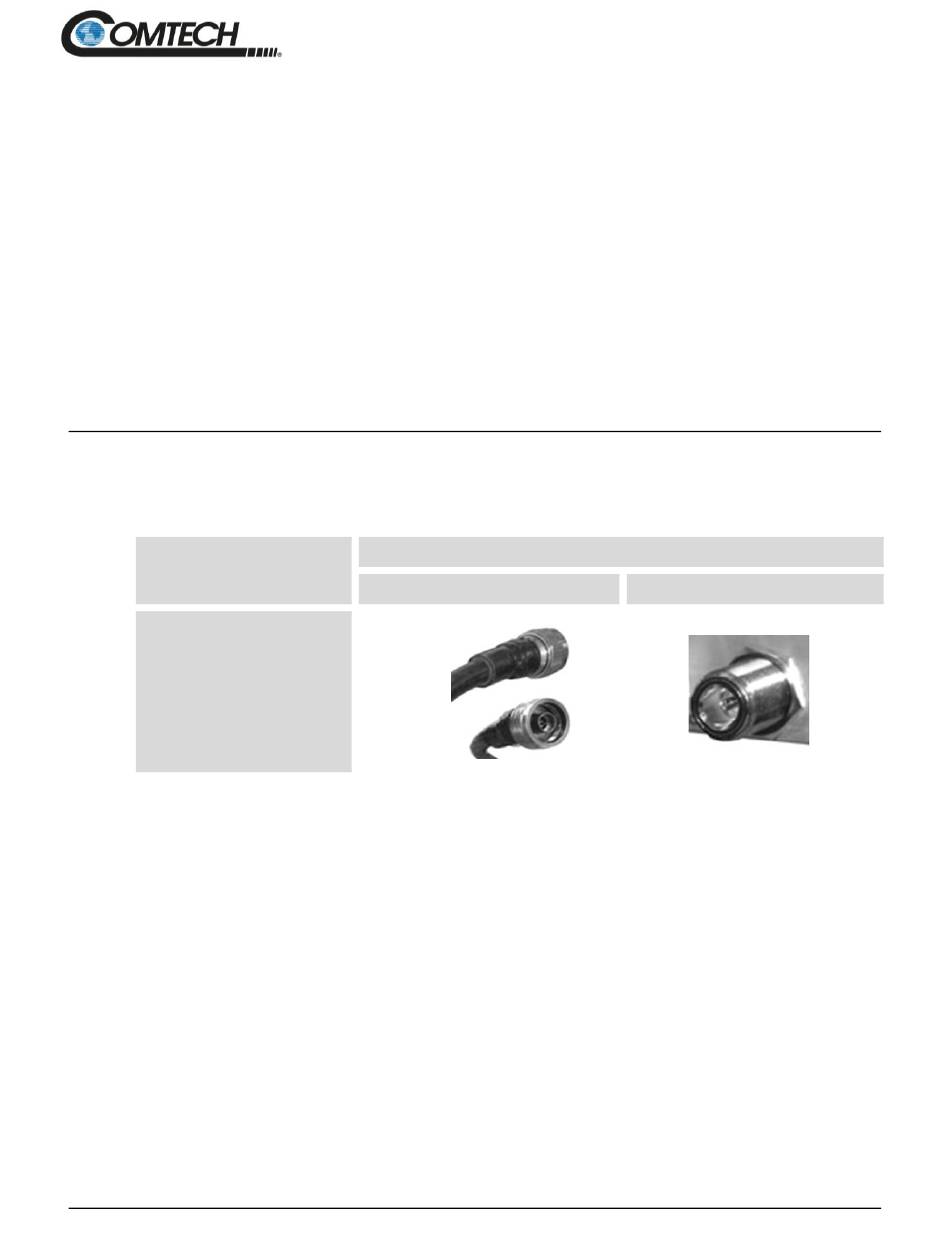

Figure 2-1. Coaxial Connector Example

2–1
HPOD C-, X-, Ku-Band High-Power Outdoor Amplifier
PINOUTS
AND
Revision 9
Jack
MN/HPOD.IOM
