| Maintenance Settings
C
9
HAPTER
Upgrading Firmware

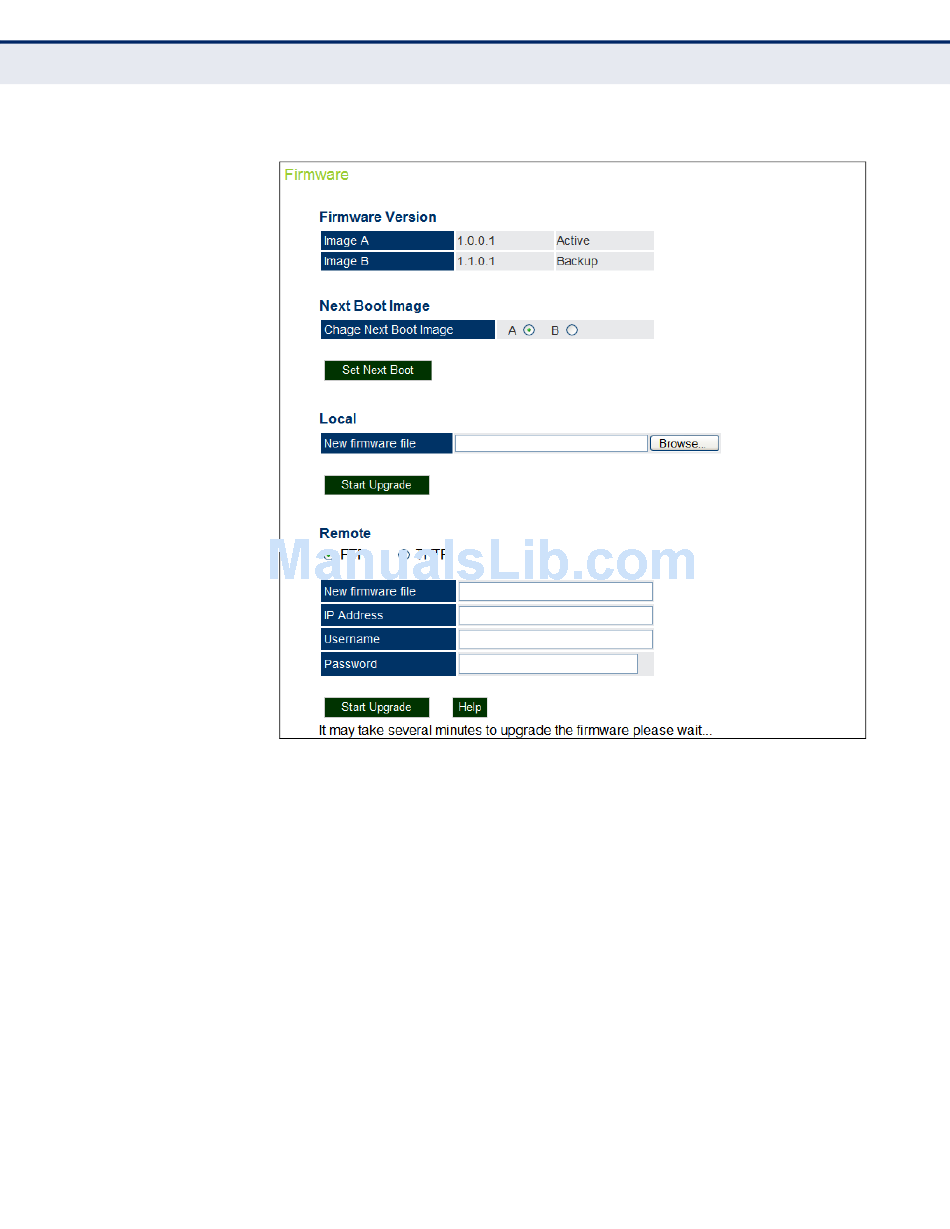

Figure 53: Firmware
The following items are displayed on this page:
Firmware Version — Displays what version of software is being used
◆
as a runtime image - "Active", and what version is a backup image -
"Backup". You may specify up to two images.
Next Boot Image — Specifies what version of firmware will be used as
◆
a runtime image upon bootup.
Set Next Boot — Applies the runtime image setting.
◆
Local — Downloads an operation code image file from the web
◆
management station to the access point using HTTP. Use the Browse
button to locate the image file locally on the management station and
click Start Upgrade to proceed.
New Firmware File: Specifies the name of the code file on the
■
server. The new firmware file name should not contain slashes (\ or
/), the leading letter of the file name should not be a period (.), and
– 104 –
