Page 1: User Guide

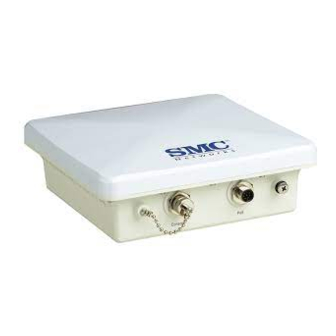

USER GUIDE Elite Connect™ SMC2890W-AG / 802.11a/g Outdoor Enterprise Access Point SMC2891W-AG...
Page 2 EliteConnect™ SMC2890W-AG and SMC2891W-AG Universal 2.4GHz/ 5GHz Wireless Dual-Band Outdoor Access Point The easy way to make all your network connections 20 Mason, Irvine, CA 92618 Phone: (949) 679-8000 February 2007 Revision Number: R01 F1.0.0.1...
Page 3 Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC.
Page 4: Federal Communication Commission Interference Statement
Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 5: Ec Conformance Declaration
VCCI Notice This is a class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.
Page 6 • This device employs a radar detection feature required for European Community operation in the 5 GHz band. This feature is automatically enabled when the country of operation is correctly configured for any European Community country. The presence of nearby radar operation may result in temporary interruption of operation of this device. The radar detection feature will automatically restart operation on a channel free of radar.
Page 7: Safety Compliance
Allowed 5GHz Channels in Each European Community Country Allowed Frequency Bands 5 GHz Operation Not Allowed * Outdoor operation is not allowed using 5.15-5.35 GHz bands (Channels 36 - 64). Channels 36 - 64 are currently not available for use. Safety Compliance Power Cord Safety Please read the following safety information carefully before installing the device:...
Page 8 Power Cord Set U.S.A. and The cord set must be UL-approved and CSA certified. Canada The minimum specifications for the flexible cord are: - No. 18 AWG - not longer than 2 meters, or 16 AWG. - Type SV or SJ - 3-conductor The cord set must have a rated current capacity of at least 10 A The attachment plug must be an earth-grounding type with...
Page 9 • L’appareil fonctionne à une tension extrêmement basse de sécurité qui est conforme à la norme IEC 60950. Ces conditions ne sont maintenues que si l’équipement auquel il est raccordé fonctionne dans les mêmes conditions. France et Pérou uniquement: Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si vos alimentations sont du type impédance à...
Page 10 Bitte unbedingt vor dem Einbauen des Geräts die folgenden Sicherheitsanweisungen durchlesen WARNUNG: Die Installation und der Ausbau des Geräts darf nur durch Fachpersonal erfolgen. • Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose angeschlossen werden. • Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche die internationalen Sicherheitsnormen erfüllt.
Page 11 Stromkabel. Dies muss von dem Land, in dem es benutzt wird geprüft werden: U.S.A und Canada Der Cord muß das UL gepruft und war das CSA beglaubigt. Das Minimum spezifikation fur der Cord sind: - Nu. 18 AWG - nicht mehr als 2 meter, oder 16 AWG. - Der typ SV oder SJ - 3-Leiter Der Cord muß...
Page 12: Table Of Contents
Table of Contents Chapter 1: Introduction Radio Characteristics Package Checklist Hardware Description LED Indicators Integrated High-Gain Antenna External Antenna Options Ethernet Port Power Injector Module Grounding Point Water Tight Test Point Wall- and Pole-Mounting Bracket Kit System Configuration Features and Benefits Chapter 2: Network Configuration Access Point Topologies Infrastructure Wireless LAN...
Page 13 Contents Mounting to a Wall Connect External Antennas Connect Cables to the Unit Connect the Power Injector Align Antennas Chapter 5: Initial Configuration Initial Setup through the CLI Required Connections Initial Configuration Steps Logging In Chapter 6: System Configuration Advanced Configuration System Identification TCP / IP Settings RADIUS...
Page 14 Chapter 7: Command Line Interface Using the Command Line Interface Accessing the CLI Console Connection Telnet Connection Entering Commands Keywords and Arguments Minimum Abbreviation Command Completion Getting Help on Commands Partial Keyword Lookup Negating the Effect of Commands Using Command History Understanding Command Modes Exec Commands Configuration Commands...
Page 15 Contents show system show version show config show hardware System Logging Commands logging on logging host logging console logging level logging facility-type logging clear show logging show event-log System Clock Commands sntp-server ip sntp-server enable sntp-server date-time sntp-server daylight-saving sntp-server timezone show sntp DHCP Relay Commands dhcp-relay enable...
Page 16 copy delete show bootfile RADIUS Client radius-server address radius-server port radius-server key radius-server retransmit radius-server timeout radius-server port-accounting radius-server timeout-interim radius-server radius-mac-format radius-server vlan-format show radius 802.1X Authentication 802.1x 802.1x broadcast-key-refresh-rate 802.1x session-key-refresh-rate 802.1x session-timeout 802.1x-supplicant enable 802.1x-supplicant user show authentication MAC Address Authentication address filter default address filter entry...
Page 17 Contents show bridge filter-entry show bridge link Spanning Tree Commands bridge stp enable bridge stp forwarding-delay bridge stp hello-time bridge stp max-age bridge stp priority bridge-link path-cost bridge-link port-priority show bridge stp Ethernet Interface Commands interface ethernet dns server ip address ip dhcp speed-duplex shutdown...
Page 18 show interface wireless show station Rogue AP Detection Commands rogue-ap enable rogue-ap authenticate rogue-ap duration rogue-ap interval rogue-ap scan show rogue-ap Wireless Security Commands auth encryption transmit-key cipher-suite mic_mode wpa-pre-shared-key pmksa-lifetime pre-authentication Link Integrity Commands link-integrity ping-detect link-integrity ping-host link-integrity ping-interval link-integrity ping-fail-retry link-integrity ethernet-detect show link-integrity...
Page 19 Contents Crossover Wiring 8-Pin DIN Connector Pinout 8-Pin DIN to RJ-45 Cable Wiring Appendix C: Specifications General Specifications Sensitivity Transmit Power Appendix D: Montieren der Bridge Verwenden der Halterung für Mastmontage Verwenden der Halterung für Wandmontage Anschließen der externen Antennen Anschließen der Kabel an das Gerät Anschließen des PoE Injectors Glossary...
Page 20: Chapter 1: Introduction
Chapter 1: Introduction The Dual-band Outdoor Access Point / Bridge system consists of two models that provide point-to-point or point-to-multipoint bridge links between remote Ethernet LANs, and wireless access point services for clients in the local LAN area: • SMC2891W-AG – Includes an integrated high-gain antenna for the 802.11a radio and is designed to operate as a “bridge node”...
Page 21: Package Checklist
Introduction Package Checklist The Dual-band Outdoor Access Point / Bridge package includes: • One Wireless Dual-band Access Point (SMC2890W-AG or SMC2891W-AG) • One Category 5e network PoE cable, length 98 ft (30 m) • One power injector module and power cord 5.9 ft (1.8 m) •...
Page 22: Led Indicators
Top View (SMC2890W-AG) N-Type External N-Type External Antenna Connector Antenna Connector (5 GHz) (2.4 GHz) Right Antenna Right Antenna LED Indicators The access point includes eight status LED indicators, as indicated in the following figure. 11b/g 802.11a Wireless Link/Activity The following table describes the system status LEDs. Status Power On Green...
Page 23 Introduction The 11a and 11b/g LEDs operate in two display modes, which are configurable through the management interface. The RSSI mode is for aligning antennas in a bridge link. The AP mode is for indicating data traffic rates. The following table describes the wireless status LEDs in AP mode. Status (three LEDs) Slow Flashing Green The 802.11a radio is enabled with a low level of network...
Page 24: Ethernet Port
Local Network to Wireless Bridge The wireless bridge does not have a power switch. It is powered on when its Ethernet port is connected to the power injector module, and the power injector module is connected to an AC power source. The power injector includes one LED indicator that turns on when AC power is applied.
Page 25: Grounding Point
Grounding Point The power injector module automatically adjusts to any AC voltage between 100-240 volts at 50 or 60 Hz. No voltage range settings are required. The power injector module is designed for indoor use only. Never mount Warning: the power injector outside with the wireless bridge unit. Grounding Point Even though the wireless bridge includes its own built-in lightning protection, it is important that the unit is properly connected to ground.
Page 26: System Configuration
System Configuration At each location where a unit is installed, it must be connected to the local network using the power injector module. The following figure illustrates the system component connections. LAN Switch Ethernet Cable AC Power Features and Benefits •...
Page 27: Chapter 2: Network Configuration
Chapter 2: Network Configuration The Dual-band Outdoor Access Point / Bridge system provides access point and bridging services through either the 5 GHz or 2.4 GHz radio interfaces. The wireless bridge units can be used just as normal 802.11a/b/g access points connected to a local wired LAN, providing connectivity and roaming services for wireless clients in an outdoor area.
Page 28: Infrastructure Wireless Lan
A wireless infrastructure can be used for access to a central database, or for connection between mobile workers, as shown in the following figure. Desktop PC Wired LAN Extension to Wireless Clients Server Switch Access Point Desktop PC Notebook PC...
Page 29: Infrastructure Wireless Lan For Roaming Wireless Pcs
ESS can roam freely. All wireless network card adapters and wireless access points within a specific ESS must be configured with the same SSID. Seamless Roaming Between Access Points Server Desktop PC Switch Switch Access Point Notebook PC Notebook PC <BSS 2> Access Point <BSS 1>...
Page 30: Bridge Link Topologies
Network Configuration Bridge Link Topologies The IEEE 802.11 standard defines a WIreless Distribution System (WDS) for bridge connections between BSS areas (access points). The outdoor wireless bridge uses WDS to forward traffic on links between units. Up to 5 WDS links can be specified for a SMC2890W-AG unit, which acts as the “Master”...
Page 31: Point-To-Multipoint Configuration
Point-to-Multipoint Configuration A SMC2890W-AG wireless bridge can use an omnidirectional or sector antenna to connect to as many as 6 bridges in a point-to-multipoint configuration. There can only be one “Master” unit in the wireless bridge network, all other bridges must be “Slave”...
Page 32 Network Configuration...
Page 33: Chapter 3: Bridge Link Planning
Chapter 3: Bridge Link Planning The Dual-band Outdoor Access Point / Bridge supports fixed point-to-point or point-to-multipoint wireless links. A single link between two points can be used to connect a remote site to larger core network. Multiple bridge links can provide a way to connect widespread Ethernet LANs.
Page 34: Antenna Height
Bridge Link Planning Visual Line of Sight If there are obstacles in the radio path, there may still be a radio link but the quality and strength of the signal will be affected. Calculating the maximum clearance from objects on a path is important as it directly affects the decision on antenna placement and height.
Page 35 Total Link Distance Max Clearance for 60% of First Fresnel Zone at 5.8 GHz 0.25 mile (402 m) 4.5 ft (1.4 m) 0.5 mile (805 m) 6.4 ft (1.95 m) 1 mile (1.6 km) 9 ft (2.7 m) 2 miles (3.2 km) 12.7 ft (3.9 m) 3 miles (4.8 km) 15.6 ft (4.8 m)
Page 36: Antenna Position And Orientation
Bridge Link Planning (7.5 ft) mast or pole must be contructed on its roof to achieve the required antenna height. Building B is only three stories high, or 9 m (30 ft), but is located at an elevation that is 12 m (39 ft) higher than bulding A. To mount an anntena at the required height on building B, a mast or pole of only 1.3 m (4.3 ft) is needed.
Page 37: Radio Interference
Radio Interference The avoidance of radio interference is an important part of wireless link planning. Interference is caused by other radio transmissions using the same or an adjacent channel frequency. You should first scan your proposed site using a spectrum analyzer to determine if there are any strong radio signals using the 802.11a channel frequencies.
Page 38: Grounding
Bridge Link Planning • Determine if conduits, bracing, or other structures are required for safety or protection of the cable • For lightning protection at the power injector end of the cable, consider using a lightning arrestor immediately before the cable enters the building Grounding It is important that the wireless bridge, cables, and any supporting structures are properly grounded.
Page 39: Chapter 4: Hardware Installation
Connect the Ethernet cable and a grounding wire to the unit. Connect the power injector to the Ethernet cable, a local LAN switch, and an AC power source. Align antennas at both ends of the link.
Page 40 Hardware Installation The bridge’s mounting bracket has four parts. One rectangular plate that is used for pole and wall mounting, one square plate that attaches directly to the bridge, and two plates that form an adjustable V-shaped clamp for pole mounting. Mounting on a Pole Perform the following steps to mount the unit to a 1.5 to 2 inch diameter steel pole or tube using the mounting bracket:...
Page 41 Attach the adjustable rectangular plate to the bridge with supplied screws Attach the bridge with its mounting plate to the bracket already fixed to the pole. Attach the bridge to the plate on the pole Use the included nuts to secure the wireless bridge to the pole bracket. Note that the wireless bridge tilt angle may need to be adjusted during the antenna alignment process.
Page 42: Mounting To A Wall
Hardware Installation Be sure to take account of the antenna polarization direction; all antennas in a link must be mounted with the same polarization. Mounting to a Wall Perform the following steps to mount the unit to a wall using the wall-mounting bracket: Note: The wall-mounting bracket does not allow the wireless bridge’s intrgrated antenna to be aligned.
Page 43: Connect External Antennas
Connect External Antennas When deploying a SMC2891W-AG unit for a bridge link or access point operation, you need to mount external antennas and connect them to the bridge. Typically, a bridge link requires a 5 GHz antenna, and access point operation a 2.4 GHz antenna.
Page 44: Connect Cables To The Unit
Hardware Installation 2.4 GHz N-type Connector 5 GHz N-type Connector RF Coaxial Cable Connect Cables to the Unit Do not connect or disconnect cables or otherwise work with the bridge Warning: during periods of lightning activity. Attach the Ethernet cable to the Ethernet port on the wireless bridge. For extra protection against rain or moisture, apply weatherproofing tape (not included) around the Ethernet connector.
Page 45: Connect The Power Injector
Note: The wireless bridge’s Ethernet port does not support Power over Ethernet (PoE) based on the IEEE 802.3af standard. Do not try to power the unit by connecting it directly to a network switch that provides IEEE 802.3af PoE. Always connect the unit to the included power injector module.
Page 46: Align Antennas
Hardware Installation Ethernet cable from LAN switch Insert the power cable plug directly into the standard AC receptacle on the power injector. Plug the other end of the power cable into a grounded, 3-pin socket, AC power source. Note: For International use, you may need to change the AC line cord. You must use a line cord set that has been approved for the receptacle type in your country.
Page 47 The signal strength LEDs indicate the received radio signal strength for a particular bridge link. The more LEDs that turn on, the stronger the signal. Alternatively, you can monitor the Receive Signal Strength Indicator (RSSI) value directly from the management interface. The higher the RSSI value, the stronger the signal. When you move the antenna during alignment, the radio signal from the remote antenna can be seen to have a strong central main lobe and smaller side lobes.
Page 48 Hardware Installation Pan the antenna horizontally back and forth while checking the LEDs. If using the pole-mounting bracket with the unit, you must rotate the mounting bracket around the pole. Other external antenna brackets may require a different horizontal adjustment. Find the point where the signal is strongest (all LEDs on) and secure the horizontal adjustment in that position.
Page 49: Chapter 5: Initial Configuration
Chapter 5: Initial Configuration The Dual-band Outdoor Access Point / Bridge offers a variety of management options, including a web-based interface, a direct connection to the console port, Telnet, Secure Shell (SSH), or using SNMP software. The initial configuration steps can be made through the web browser interface or CLI.
Page 50: Initial Configuration Steps
“netmask” is the network mask for the network, and “gateway” is the default gateway router. Check with your system administrator to obtain an IP address that is compatible with your network. SMC AP(if-ethernet)#no ip dhcp SMC AP(if-ethernet)#ip address 192.168.2.2 255.255.255.0 192.168.2.254 SMC AP(if-ethernet)# After configuring the access point’s IP parameters, you can access the management...
Page 51: Logging In
Select the code for your country, and enter the country command again, following by your country code (e.g., tw for Taiwan). SMC AP#country tw SMC AP# Note: Command examples shown later in this manual abbreviate the console prompt to “AP”...
Page 52 Initial Configuration The home page displays the Main Menu.
Page 53: Chapter 6: System Configuration
Chapter 6: System Configuration Before continuing with advanced configuration, first complete the initial configuration steps described in Chapter 4 to set up an IP address for the access point. The access point can be managed by any computer using a web browser (Internet Explorer 5.0 or above, or Netscape 6.2 or above).
Page 54: Advanced Configuration
System Configuration Advanced Configuration The Advanced Configuration pages include the following options. Menu Description System Configures basic administrative and client access Identification Specifies the host name TCP / IP Settings Configures the IP address, subnet mask, gateway, and domain name servers RADIUS Configures the RADIUS server for wireless client authentication and accounting...
Page 55: System Identification
System Name – An alias for the access point, enabling the device to be uniquely identified on the network. (Default: SMC Enterprise AP/Bridge; Range: 1-32 characters) Advanced Configuration Table 6-1.
Page 56 Then return to the Exec mode, and use the show system command to display the changes to the system identification settings. SMC AP#config Enter configuration commands, one per line. SMC AP(config)#system name R&D SMC AP(config)#end SMC AP#show system System Information ==============================================================...
Page 57: Tcp / Ip Settings
TCP / IP Settings Configuring the access point with an IP address expands your ability to manage the access point. A number of access point features depend on IP addressing to operate. Note: You can use the web browser interface to access IP addressing only if the access point already has an IP address that is reachable through your network.
Page 58 Then use the show interface ethernet command from the Exec mode to display the current IP settings. SMC AP(config)#interface ethernet Enter Ethernet configuration commands, one per line. SMC AP(if-ethernet)#no ip dhcp SMC AP(if-ethernet)#ip address 192.168.1.2 255.255.255.0 192.168.1.253 SMC AP(if-ethernet)#dns primary-server 192.168.1.55 SMC AP(if-ethernet)#dns secondary-server 10.1.0.55...
Page 59: Radius
RADIUS Remote Authentication Dial-in User Service (RADIUS) is an authentication protocol that uses software running on a central server to control access to RADIUS-aware devices on the network. An authentication server contains a database of user credentials for each user that requires access to the network. A primary RADIUS server must be specified for the access point to implement IEEE 802.1X network access control and Wi-Fi Protected Access (WPA) wireless security.
Page 60 System Configuration...
Page 61 MAC Address Format – MAC addresses can be specified in one of four formats, using no delimeter, with a single dash delimeter, with multiple dash delimeters, and with multiple colon delimeters. VLAN ID Format – A VLAN ID (a number between 1 and 4094) can be assigned to each client after successful authentication using IEEE 802.1X and a central RADIUS server.
Page 62 RADIUS server.) Configure the other parameters for the RADIUS server. Then use the show show radius command from the Exec mode to display the current settings for the primary and secondary RADIUS servers. SMC AP(config)#radius-server address 192.168.1.25 SMC AP(config)#radius-server port 181 SMC AP(config)#radius-server key green...
Page 63: Ssh Settings
SSH Settings Telnet is a remote management tool that can be used to configure the access point from anywhere in the network. However, Telnet is not secure from hostile attacks. The Secure Shell (SSH) can act as a secure replacement for Telnet. The SSH protocol uses generated public keys to encrypt all data transfers passing between the access point and SSH-enabled management station clients and ensures that data traveling over the network arrives unaltered.
Page 64: Authentication
System Configuration CLI Commands for SSH – To enable the SSH server, use the ip ssh-server enable command from the CLI Ethernet interface configuration mode. To set the SSH server UDP port, use the ip ssh-server port command. To view the current settings, use the show system command from the CLI Exec mode (not shown in the following example).
Page 65 MAC Authentication – You can configure a list of the MAC addresses for wireless clients that are authorized to access the network. This provides a basic level of authentication for wireless clients attempting to gain access to the network. A database of authorized MAC addresses can be stored locally on the access point or remotely on a central RADIUS server.
Page 66 System Configuration Local MAC Authentication – Configures the local MAC authentication database. The MAC database provides a mechanism to take certain actions based on a wireless client’s MAC address. The MAC list can be configured to allow or deny network access to specific clients.
Page 67 To display the current settings, use the show authentication command from the Exec mode. SMC AP(config)#mac-authentication server local SMC AP(config)#mac-authentication session-timeout 5 SMC AP(config)#web-redirect SMC AP(config)#address filter default denied SMC AP(config)#address filter entry 00-70-50-cc-99-1a denied SMC AP(config)#address filter entry 00-70-50-cc-99-1b allowed...
Page 68 802.1X supplicant command to enable the feature. To display the current settings, use the show authentication command from the Exec mode (not shown in the following example) SMC AP(config)#802.1X supplicant user secureAP dot1xpass SMC AP(config)#802.1X supplicant SMC AP(config)#...
Page 69: Filter Control
Filter Control The access point can employ network traffic frame filtering to control access to network resources and increase security. You can prevent communications between wireless clients and prevent access point management from wireless clients. Also, you can block specific Ethernet traffic from being forwarded by the access point. Inter Client STAs Communication Filter –...
Page 70 To display the current settings, use the show filters command from the Exec mode. SMC AP(config)#filter local-bridge SMC AP(config)#filter ap-manage SMC AP(config)#filter uplink enable SMC AP(config)#filter uplink add 00-12-34-56-78-9a SMC AP(config)#filter ethernet-type enable SMC AP(config)#filter ethernet-type protocol ARP SMC AP(config)#exit SMC AP#show filters...
Page 71: Vlan
VLAN tags on any received frames. Note: Before enabling VLAN tagging on the access point, be sure to configure the attached network switch port to support tagged VLAN frames from the access point’s management VLAN ID, default VLAN IDs, and other client VLAN IDs.
Page 72 System Configuration When setting up VLAN IDs for each user on the RADIUS server, be sure to use the RADIUS attributes and values as indicated in the following table. Number RADIUS Attribute Tunnel-Type Tunnel-Medium-Type Tunnel-Private-Group-ID VLAN IDs on the RADIUS server can be entered as hexadecimal digits or a string (see “radius-server vlan-format”...
Page 73: Wds Settings
This allows a wireless bridge to interact with other bridging devices (that is, an STP-compliant switch, bridge or router) in your network to ensure that only one route exists between any two stations on the network, and provide backup links which automatically take over when a primary link goes down.
Page 74 System Configuration • Bridge: Operates as a bridge to other access points. The “Parent” link to the root bridge must be configured. Up to five other ”Child” links are available to other bridges. • Repeater: Operates as a wireless repeater, extending the range for remote wireless clients and connecting them to the root bridge.
Page 75 Spanning Tree Protocol – STP uses a distributed algorithm to select a bridging device (STP-compliant switch, bridge or router) that serves as the root of the spanning tree network. It selects a root port on each bridging device (except for the root device) which incurs the lowest path cost when forwarding a packet from that device to the root device.
Page 76 System Configuration Once a stable network topology has been established, all bridges listen for Hello BPDUs (Bridge Protocol Data Units) transmitted from the root bridge. If a bridge does not get a Hello BPDU after a predefined interval (Maximum Age), the bridge assumes that the link to the root bridge is down.
Page 77 • Link Port Priority – Defines the priority used for this port in the Spanning Tree Protocol. If the path cost for all ports on a switch are the same, the port with the highest priority (i.e., lowest value) will be configured as an active link in the spanning tree.
Page 78 System Configuration CLI Commands for STP Settings – If the role of a radio interface is set to Repeater, Bridge or Root Bridge, STP can be enabled on the access point to maintain a valid network topology. To globally enable STP, use the bridge stp enable command from the CLI configuration mode.
Page 79: Ap Management
AP Management The Web, Telnet, and SNMP management interfaces are enabled and open to all IP addresses by default. To provide more security for management access to the access point, specific interfaces can be disabled and management restricted to a single IP address or a limited range of IP addresses.
Page 80: Administration
System Configuration CLI Commands for AP Management features. SMC AP(config)#apmgmtip multiple 192.168.1.50 255.255.255.0 SMC AP(config)#apmgmtui SNMP enable Administration Changing the Password Management access to the web and CLI interface on the access point is controlled through a single user name and password. You can also gain additional access security by using control filters (see “Filter Control”...
Page 81 (Range: 0-1800 seconds; Default: 300 seconds; 0 is disabled) CLI Command for the Web Session Timeout – Use the ip http session-timeout command from the CLI configuration mode. SMC AP(config)#ip http session-timeout 0 SMC AP(config)# Upgrading Firmware You can upgrade new access point software from a local file on the management workstation, or from an FTP or TFTP server.
Page 82 System Configuration Before upgrading new software, verify that the access point is connected to the network and has been configured with a compatible IP address and subnet mask. If you need to download from an FTP or TFTP server, take the following additional steps: •...
Page 83 Firmware Upgrade Local – Downloads an operation code image file from the web management station to the access point using HTTP. Use the Browse button to locate the image file locally on the management station and click Start Upgrade to proceed.
Page 84 To run the new software, use the reset board command to reboot the access point. SMC AP#copy tftp file 1. Application image 2. Config file 3.
Page 85: System Log
Advanced Configuration System Log The access point can be configured to send event and error messages to a System Log Server. The system clock can also be synchronized with a time server, so that all the messages sent to the Syslog server are stamped with the correct time and date.
Page 86 The command specifies the facility type tag sent in syslog messages. (See RFC 3164.) This type has no effect on the kind of messages reported by the switch. However, it may be used by the syslog server to sort messages or to store messages in the corresponding database.
Page 87 SMC AP(config)#logging on SMC AP(config)#logging level alert SMC AP(config)#logging console SMC AP(config)#logging host 1 IP 10.1.0.3 514 SMC AP(config)#logging host 1 Port 514 SMC AP(config)#logging facility-type 19 SMC AP(config)#exit SMC AP#show logging...
Page 88 To view the current SNTP settings, use the show sntp command. SMC AP(config)#sntp-server ip 1 10.1.0.19 SMC AP(config)#sntp-server enable SMC AP(config)#sntp-server timezone +8 SMC AP(config)#sntp-server daylight-saving Enter Daylight saving from which month<1-12>: 3...
Page 89: Rssi
CLI Commands for the System Clock – The following example shows how to manually set the system time when SNTP server support is disabled on the access point. SMC AP(config)#no sntp-server enable SMC AP(config)#sntp-server date-time Enter Year<1970-2100>: 2003 Enter Month<1-12>: 10 Enter Day<1-31>: 10...
Page 90 System Configuration The RSSI controls allow the external connector to be disabled and the receive signal for each WDS port displayed. RSSI: • Auto Refresh – Enables or disables the refreshing of RSSI information. • RSSI Value – The displayed RSSI value for a selected port. 6-38...
Page 91 • Port Number: Selects a specific WDS port for which to display the RSSI output value. Ports 1-6 are available for a Master unit, only port 1 for a Slave unit. (Default: 1) Distance: • Mode: Indicates if the 802.11a radio is operating in normal or Turbo mode. (See "Radio Settings A"...
Page 92: Snmp
System Configuration SNMP Simple Network Management Protocol (SNMP) is a communication protocol designed specifically for managing devices on a network. Equipment commonly managed with SNMP includes switches, routers and host computers. SNMP is typically used to configure these devices for proper operation in a network environment, as well as to monitor them to evaluate performance or detect potential problems.
Page 93: Configuring Snmp And Trap Message Parameters
SNMP Configuring SNMP and Trap Message Parameters The access point SNMP agent must be enabled to function (for versions 1, 2c, and 3 clients). Management access using SNMP v1 and v2c also requires community strings to be configured for authentication. Trap notifications can be enabled and sent to up to four management stations.
Page 94 System Configuration Community Name (Read/Write) – Defines the SNMP community access string that has read/write access. Authorized management stations are able to both retrieve and modify MIB objects. (Maximum length: 23 characters, case sensitive; Default: private) Trap Destination (1 to 4) – Enables recipients (up to four) of SNMP notifications. •...
Page 95 Trap Configuration – Allows selection of specific SNMP notifications to send. The following items are available: • sysSystemUp - The access point is up and running. • sysSystemDown - The access point is about to shutdown and reboot. • sysRadiusServerChanged - The access point has changed from the primary RADIUS server to the secondary, or from the secondary to the primary.
Page 96 Use the snmp-server host command to define a trap receiver host and the snmp-server trap command to enable or disable specific traps. SMC AP(config)#snmp-server enable server SMC AP(config)#snmp-server community alpha rw SMC AP(config)#snmp-server community beta ro SMC AP(config)#snmp-server location WC-19 SMC AP(config)#snmp-server contact Paul SMC AP(config)#snmp-server host 192.168.1.9 alpha...
Page 97 To view the current SNMP settings, use the show snmp command. SMC AP#show snmp SNMP Information ============================================== Service State Community (ro) Community (rw) Location Contact EngineId :80:00:07:e5:80:00:00:2e:62:00:00:00:18 EngineBoots:1 Trap Destinations: 192.168.1.9, Community: *****, State: Enabled 0.0.0.0, Community: *****, State: Disabled 0.0.0.0, Community: *****, State: Disabled...
Page 98: Configuring Snmpv3 Users
System Configuration Configuring SNMPv3 Users The access point allows up to 10 SNMP v3 users to be configured. Each user must be defined by a unique name, assigned to one of three pre-defined security groups, and configured with specific authentication and encryption settings. User –...
Page 99 CLI Commands for Configuring SNMPv3 Users – Use the snmp-server engine-id command to define the SNMP v3 engine before assigning users to groups. Use the snmp-server user command to assign users to one of the three groups and set the appropriate authentication and encryption types to be used.
Page 100: Configuring Snmpv3 Trap Filters
System Configuration Configuring SNMPv3 Trap Filters SNMP v3 users can be configured to receive notification messages from the access point. An SNMP Target ID is created that specifies the SNMP v3 user, IP address, and UDP port. A user-defined notification filter can be created so that specific notifications can be prevented from being sent to particular targets.
Page 101 Filter ID – A user-defined name that identifies the filter. (Maximum length: 32 characters) Subtree OID – Specifies MIB subtree to be filtered. The MIB subtree must be defined in the form “.1.3.6.1” and always start with a “.”. Filter Type – Indicates if the filter is to “include” or “exclude” the MIB subtree objects from the filter.
Page 102: Configuring Snmpv3 Targets
System Configuration Configuring SNMPv3 Targets An SNMP v3 notification Target ID is specified by the SNMP v3 user, IP address, and UDP port. A user-defined filter can also be assigned to specific targets to limit the notifications received to specific MIB objects. (Note that the filter must first be configured.
Page 103: Radio Interface
UDP Port – The UDP port that is used on the receiving management station for notification messages. SNMP User – The defined SNMP v3 user that is to receive notification messages. Assigned Filter – The name of a user-defined notification filter that is applied to the target.
Page 104 System Configuration Each radio supports up to four virtual access point (VAP) interfaces numbered 0 to 3. Each VAP functions as a separate access point, and can be configured with its own Service Set Identification (SSID) and security settings. However, most radio signal parameters apply to all four VAP interfaces.
Page 105: Radio Settings A (802.11A)
Radio Interface Radio Settings A (802.11a) The IEEE 802.11a interface operates within the 5 GHz band, at up to 54 Mbps in normal mode or up to 108 Mbps in Turbo mode. First configure the radio settings that apply to the individual VAPs (Virtual Access Point) and the common radio settings that apply to the overall system.
Page 106 System Configuration Default VLAN ID – The VLAN ID assigned to wireless clients associated to the VAP interface that are not assigned to a specific VLAN by RADIUS server configuration. (Default: 1) Closed System – When enabled, the VAP interface does not include its SSID in beacon messages.
Page 107 802.11a radio settings for the VAP interface, use the show interface wireless a [0-3] command as shown on 7-97. SMC AP(if-wireless a)#vap 0 SMC AP(if-wireless a: VAP[0])#description RD-AP#3 SMC AP(if-wireless a: VAP[0])#vlan-id 1 SMC AP(if-wireless a: VAP[0])#closed-system...
Page 108 System Configuration • AP Detection – Enables the periodic scanning for other access points. (Default: Disable) • AP Scan Interval – Sets the time between each rogue AP scan. (Range: 30 -10080 minutes; Default: 720 minutes) • AP Scan Duration – Sets the length of time for each rogue AP scan. A long scan duration time will detect more access points in the area, but causes more disruption to client access.
Page 109 APs detected. SMC AP(if-wireless g)#rogue-ap duration 200 SMC AP(if-wireless g)#rogue-ap interval 120 SMC AP(if-wireless g)#rogue-ap scan SMC AP(if-wireless g)#rogueApDetect Completed (Radio G) : 5 APs detected rogueAPDetect (Radio G): refreshing ap database now SMC AP(if-wireless g)#exit SMC AP#show rogue-ap 802.11a Channel : Rogue AP Status...
Page 110 System Configuration Configuring Common Radio Settings To configure common radio settings, select the Radio Settings page, and scroll down to below the VAP radio settings. Turbo Mode – The normal 802.11a wireless operation mode provides connections up to 54 Mbps. Turbo Mode is an enhanced mode (not regulated in IEEE 802.11a) that provides a higher data rate of up to 108 Mbps.
Page 111 Radio Channel – The radio channel that the access point uses to communicate with wireless clients. When multiple access points are deployed in the same area, set the channel on neighboring access points at least four channels apart to avoid interference with each other.
Page 112 System Configuration • Right: The radio uses a single antenna on the right side. Select this method when using an optional external antenna that is connected to the right antenna connector. • Left: The radio uses a single antenna on the left side. Select this method when using an optional external antenna that is connected to the left antenna connector.
Page 113 Radio Interface Multicast Data Rate – The maximum data rate at which the access point transmits multicast and broadcast packets on the wireless interface. (Options: 24, 12, 6 Mbps; Default: 6 Mbps) Fragmentation Length – Configures the minimum packet size that can be fragmented when passing through the access point.
Page 114 Enter Wireless configuration commands, one per line. SMC AP(if-wireless a)#turbo SMC AP(if-wireless a)#channel 42 SMC AP(if-wireless a)#transmit-power full SMC AP(if-wireless a)#speed 9 SMC AP(if-wireless a)#antenna id 0000 SMC AP(if-wireless a)#antenna control right SMC AP(if-wireless a)#antenna location indoor SMC AP(if-wireless a)#mic_mode hardware SMC AP(if-wireless a)#super-a...
Page 115 types of traffic, WMM allows the priority levels to be configured to match any network-wide QoS policy. WMM also specifies a protocol that access points can use to communicate the configured traffic priority levels to QoS-enabled wireless clients. Access Category WMM Designation Description AC_VO (AC3) Voice AC_VI (AC2)
Page 116 System Configuration CWMin riority AIFS Minimum Wait Time riority AIFS Minimum Wait Time Figure 6-1. WMM Backoff Wait Times For high-priority traffic, the AIFSN and CW values are smaller. The smaller values equate to less backoff and wait time, and therefore more transmit opportunities. To configure WMM, select the Radio Settings page, and scroll down to the WMM configuration settings.
Page 117 WMM – Sets the WMM operational mode on the access point. When enabled, the parameters for each AC queue will be employed on the access point and QoS capabilities are advertised to WMM-enabled clients. (Default: Support) • Disable: WMM is disabled. •...
Page 118 System Configuration CLI Commands for WMM – Enter interface wireless mode and type wmm required for clients that want to associate with the access point. The wmm-acknowledge-policy command is used to enable or disable a policy for each access category. The wmmparms command defines detailed WMM parameters. Enterprise AP(if-wireless a)#wmm required 7-138 Enterprise AP(if-wireless a)#wmm-acknowledge-policy 0 noack...
Page 119 To view the current 802.11a radio settings for the VAP interface, use the show interface wireless a [0-3] command. SMC AP#show interface wireless a 0 Wireless Interface Information ============================================================= --------------------Identification--------------------------- Description SSID Turbo Mode Channel Status MAC Address ----------------802.11 Parameters---------------------------...
Page 120: Radio Settings G (802.11G)
AC1(Background) AC2(Video) AC3(Voice) ============================================================= SMC AP# Radio Settings G (802.11g) The IEEE 802.11g standard operates within the 2.4 GHz band at up to 54 Mbps. Also note that because the IEEE 802.11g standard is an extension of the IEEE 802.11b standard, it allows clients with 802.11b wireless network cards to associate to an 802.11g access point.
Page 121 Most of the 802.11g commands are identical to those used by the 802.11a interface. For information on the these commands, refer to the following sections: • “Configuring VAP Radio Settings” on page 6-53 • “Configuring Rogue AP Detection” on page 6-55 •...
Page 122: Security
VAP interface (with the no shutdown command). To view the current 802.11g radio settings for the VAP interface, use the show interface wireless g [0~3] command as shown on 7-97. SMC AP(config)#interface wireless g Enter Wireless configuration commands, one per line. Enterprise AP(if-wireless g)#radio-mode g SMC AP(if-wireless g)#channel auto...
Page 123 To improve wireless network security, you have to implement two main functions: • Authentication: It must be verified that clients attempting to connect to the network are authorized users. • Traffic Encryption: Data passing between the access point and clients must be protected from interception and eavesdropping.
Page 124 System Configuration Table 6-2. Wireless Security Considerations Security Client Support Mechanism WPA PSK Mode Requires WPA-enabled system and network card driver (native support provided in Windows XP) WPA2 with 802.1X Requires WPA-enabled system and network card driver (native support provided in Windows WPA2 PSK Mode Requires WPA-enabled system and network card driver (native support provided in Windows...
Page 125 Client Security Combination Dynamic WEP Interface Detail Settings: (802.1x) only Authentication: Open System Encryption: Enable 802.1x: Required Set 802.1x key refresh and reauthentication rates 802.1x WPA only Interface Detail Settings: Authentication: WPA Encryption: Enable WPA Configuration: Required Cipher Suite: TKIP 802.1x: Required Set 802.1x key refresh and reauthentication rates WPA Pre-Shared Key...
Page 126 System Configuration Client Security Combination 802.1x WPA2 only Interface Detail Settings: Authentication: WPA2 Encryption: Enable WPA Configuration: Required Cipher Suite: AES-CCMP 802.1x: Required Set 802.1x key refresh and reauthentication rates WPA2 Pre-Shared Interface Detail Settings: Key only Authentication: WPA2-PSK Encryption: Enable WPA Configuraton: Required Cipher Suite: AES-CCMP 802.1x: Disable...
Page 127 Radio Interface Enabling the VAPs Before enabling the Virtual Access Point (VAP) radio interfaces, first configure all of the relevant raido settings (see “Radio Settings A (802.11a)” on page 6-53 or “Radio Settings G (802.11g)” on page 6-68.) After you have configured the radio settings, select Security under Radio A or Radio G, set an SSID to identify the wireless network service provided by each VAP you want to use, and then click Apply to save your settings.
Page 128 System Configuration Setting up shared keys enables the basic IEEE 802.11 Wired Equivalent Privacy (WEP) on the access point to prevent unauthorized access to the network. If you choose to use WEP shared keys instead of an open system, be sure to define at least one static WEP key for user authentication and data encryption.
Page 129 To enable WEP shared keys for a VAP interface, click Security under Radio A or Radio G. Then, select the VAP interface that will use WEP keys by clicking More, and configure the Authentication Type Setup and Encryption fields. Authentication Type Setup – Sets the access point to communicate as an open system that accepts network access attempts from any client, or with clients using pre-configured static shared keys.
Page 130 System Configuration key command to define up to four WEP keys that can be used for all VAP interfaces on the radio. Then use the vap command to access each VAP interface to configure other security settings. From the VAP interface configuration mode, use the auth command to enable WEP shared-key authentication, which enables encryption automatically.
Page 131 SMC AP(config)#interface wireless g Enter Wireless configuration commands, one per line. SMC AP(if-wireless g)#key 1 128 ascii abcdeabcdeabc SMC AP(if-wireless g)#vap 0 SMC AP(if-wireless g: VAP[0])#auth shared-key Data Encryption is set to enabled. Remember to set the share key using "key" command.
Page 132 AC2(Video) AC3(Voice) ======================================================================== SMC AP# CLI Commands for WEP over 802.1X Security – Use the vap command to access each VAP interface to configure the security settings. First set 802.1X to required using the 802.1x command and set the 802.1X key refresh rates. Then, use the...
Page 133 SMC AP(if-wireless g)#vap 0 SMC AP(if-wireless g: VAP[0])#802.1X required SMC AP(if-wireless g: VAP[0])#802.1X broadcast-key-refresh-rate 5 SMC AP(if-wireless g: VAP[0])#802.1X session-key-refresh-rate 5 SMC AP(if-wireless g: VAP[0])#802.1X session-timeout 300 SMC AP(if-wireless g: VAP[0])#auth open-system SMC AP(if-wireless g: VAP[0])#encryption SMC AP(if-wireless g: VAP[0])#...
Page 134 System Configuration the access point and all wireless clients. The PSK mode uses the same TKIP packet encryption and key management as WPA in the enterprise, providing a robust and manageable alternative for small networks. Mixed WPA and WEP Client Support: WPA enables the access point to indicate its supported encryption and authentication mechanisms to clients using its beacon signal.
Page 135 information form a Security Association that the access point names and holds in a cache. • Preauthentication: Each time a client roams to another access point it has to be fully re-authenticated. This authentication process is time consuming and can disrupt applications running over the network.
Page 136 System Configuration The WPA configuration parameters are described below: Encryption – You must enable data encryption in order to enable all types of encryption (WEP, TKIP, or AES) in the access point. Pre-Authentication – When using WPA2 over 802.1X, pre-authentication can be enabled, which allows clients to roam to a new access point and be quickly associated without performing full 802.1X authentication.
Page 137 Enter Wireless configuration commands, one per line. Enterprise AP(if-wireless g)#vap 0 SMC AP(if-wireless g: VAP[0])#wpa-pre-shared-key passphrase-key agoodsecret SMC AP(if-wireless g: VAP[0])#auth wpa-psk required Data Encryption is set to Enabled. WPA2 Clients Mode is set to Disabled. WPA Clients Mode is set to Required.
Page 138 SMC AP(config)#interface wireless g Enter Wireless configuration commands, one per line. SMC AP(if-wireless g)#vap 0 SMC AP(if-wireless g: VAP[0])#auth wpa required Data Encryption is set to Enabled. WPA2 Clients mode is set to Disabled. WPA Clients Mode is set to Required.
Page 139 Open the Security page, and click More for one of the VAP interfaces. You can enable 802.1X as optionally supported or as required to enhance the security of the wireless network. (Default: Disable) • Disable: The access point does not support 802.1X authentication for any wireless client.
Page 140: Status Information
To display the current settings, use the show interface wireless command from the Exec mode (not shown in the example). SMC AP(if-wireless g: VAP[0])#802.1X supported SMC AP(if-wireless g: VAP[0])#802.1X broadcast-key-refresh-rate 5 SMC AP(if-wireless g: VAP[0])#802.1X session-key-refresh-rate 5 SMC AP(if-wireless g: VAP[0])#802.1X session-timeout 300...
Page 141 Status Information AP System Configuration – The AP System Configuration table displays the basic system configuration settings: • System Up Time: Length of time the management agent has been up. • Ethernet MAC: The physical layer address for the Ethernet port. •...
Page 142 Exec mode. To view the current radio interface settings, use the show interface wireless a or show interface wireless g command (see page 7-113). SMC AP#show system System Information ========================================================== Serial Number...
Page 143: Station Status
Station Status The Station Status window shows the wireless clients currently associated with the access point. The Station Configuration page displays basic connection information for all associated stations as described below. Note that this page is automatically refreshed every five seconds. •...
Page 144 System Configuration CLI Commands for Displaying Station Status – To view status of clients currently associated with the access point, use the show station command from the Exec mode. SMC AP#show station Station Table Information =========================================================== if-wireless A VAP [0] 802.11a Channel : Auto...
Page 145: Event Logs
Event Logs The Event Logs window shows the log messages generated by the access point and stored in memory. The Event Logs table displays the following information: • Log Time: The time the log message was generated. • Event Level: The logging level associated with this message. For a description of the various levels, see “logging level”...
Page 146 System Configuration CLI Commands for Displaying the Logging Status – From the global configuration mode, use the show logging command. SMC AP#show loggging Logging Information ============================================ Syslog State Logging Console State Logging Level Logging Facility Type Servers 1: 192.168.2.29, UDP Port: 514, State: Enabled 2: 0.0.0.0, UDP Port: 514, State: Disabled...
Page 147: Stp Status
Status Information STP Status The STP Status window shows the STP status for each port. • ID: Displays the port ID number. • Priority: The priority designated to the specified port. • Path Cost: Displays the path cost value for the specified port. •...
Page 148 System Configuration 6-96...
Page 149: Chapter 7: Command Line Interface
At the console prompt, enter the user name and password. (The default user name is “admin” and the default password is “smcadmin”) When the user name is entered, the CLI displays the “SMC AP#” prompt. Enter the necessary commands to complete your desired tasks.
Page 150: Entering Commands
At the prompt, enter the user name and system password. The CLI will display the “SMC AP#” prompt to show that you are using executive access mode (i.e., Exec). Enter the necessary commands to complete your desired tasks.
Page 151: Command Completion
Show 802.11 station table system Show system information version Show system version SMC AP#show The command “show interface ?” will display the following information: SMC AP#show interface ? ethernet Show Ethernet interface wireless Show wireless interface <cr> SMC AP#show interface...
Page 152: Partial Keyword Lookup
If you terminate a partial keyword with a question mark, alternatives that match the initial letters are provided. (Remember not to leave a space between the command and question mark.) For example “s?” shows all the keywords starting with “s.” SMC AP#show s? snmp sntp...
Page 153: Exec Commands
VAP, and include commands such as ssid and authentication. To enter the Global Configuration mode, enter the command configure in Exec mode. The system prompt will change to “SMC AP(config)#” which gives you access privilege to all Global Configuration commands. SMC AP#configure SMC AP(config)# To enter Interface mode, you must enter the “interface ethernet,”...
Page 154: Command Line Processing
Command Line Interface Command Line Processing Commands are not case sensitive. You can abbreviate commands and parameters as long as they contain enough letters to differentiate them from any other currently available commands or parameters. You can use the Tab key to complete partial commands, or enter a partial command followed by the “?”...
Page 155: General Commands
Command Group Description SNMP Configures community access strings and trap managers Flash/File Manages code image or access point configuration files RADIUS Configures the RADIUS client used with 802.1X authentication 802.1X Authentication Configures 802.1X authentication MAC Address Configures MAC address authentication Authentication Filtering Filters communications between wireless clients, controls access to the...
Page 156: Configure
Configuration mode prior to enabling the context modes for Interface Configuration. See “Using the Command Line Interface” on page 1. Default Setting None Command Mode Exec Example SMC AP#configure SMC AP(config)# Related Commands end (7-8) This command returns to the previous configuration mode. Default Setting None...
Page 157: Ping
- Destination unreachable - The gateway for this destination indicates that the destination is unreachable. - Network or host unreachable - The gateway found no corresponding entry in the route table. • Press <Esc> to stop pinging. Example SMC AP#ping 10.1.0.19 192.168.2.29 is alive SMC AP# General Commands...
Page 158: Reset
When the system is restarted, it will always run the Power-On Self-Test. Example This example shows how to reset the system: SMC AP#reset board Reboot system now? <y/n>: y show history This command shows the contents of the command history buffer.
Page 159: Show Line
This command displays the console port’s configuration settings. Command Mode Exec Example The console port settings are fixed at the values shown below. SMC AP#show line Console Line Information ====================================================== databits parity : none speed : 9600 stop bits...
Page 160: Country
Command Line Interface Table 7-4. System Management Commands Command Function Web Server ip http port Specifies the port to be used by the web browser interface ip http server Allows the access point to be monitored or configured from a browser ip http session-timeout Sets the timeout for the web browser interface ip https port...
Page 161 Country Code Country Bahrain Germany Belarus Greece Belgium Guatemala Honduras Belize Hong Kong Bolivia Hungary Brazil Iceland Brunei India Darussalam Bulgaria Indonesia Canada Iran Chile Ireland China Israel Colombia Italy Costa Rica Japan Croatia Jordan Cyprus Kazakhstan Czech North Korea Republic Denmark Korea...
Page 162: Prompt
• The available Country Code settings can be displayed by using the country ? command. Example SMC AP#country tw SMC AP# prompt This command customizes the CLI prompt. Use the no form to restore the default prompt.
Page 163: Username
Command Mode Global Configuration Example SMC AP(config)#system name AP SMC AP(config)# username This command configures the user name for management access. Syntax username <name> name - The name of the user. (Length: 3-16 characters, case sensitive) Default Setting admin Command Mode...
Page 164: Ip Ssh-Server Enable
This command sets the Secure Shell server port. Use the no form to disable the server. Syntax ip ssh-server port <port-number> • port-number - The UDP port used by the SSH server. (Range: 1-65535) Default Setting Command Mode Interface Configuration (Ethernet) Example SMC AP(if-ethernet)#ip ssh-server port 1124 SMC AP(if-ethernet)# 7-16...
Page 165: Ip Telnet-Server Enable
- The TCP port to be used by the browser interface. (Range: 1024-65535) Default Setting Command Mode Global Configuration Example SMC AP(config)#ip http port 769 SMC AP(config)# Related Commands ip http server (7-18) System Management Commands 7-17...
Page 166: Ip Http Server
<time> time - Sets the web interface session timeout. (Range: 0 - 1800 seconds, 0 means disabled) Default Setting 300 seconds Command Mode Global Configuration Example SMC AP(config)#ip http session-timeout 0 SMC AP(config)# Related Commands ip http port (7-17) 7-18...
Page 167: Ip Https Port
• If you change the HTTPS port number, clients attempting to connect to the HTTPS server must specify the port number in the URL, in this format: https://device:port_number Example SMC AP(config)#ip https port 1234 SMC AP(config)# ip https server Use this command to enable the secure hypertext transfer protocol (HTTPS) over the Secure Socket Layer (SSL), providing secure access (i.e., an encrypted...
Page 168: Web-Redirect
• The client and server establish a secure encrypted connection. A padlock icon should appear in the status bar for Internet Explorer 5.x. Example SMC AP(config)#ip https server SMC AP(config)# web-redirect Use this command to enable web-based authentication of clients. Use the no form to disable this function.
Page 169: Apmgmtip
(See “show bootfile” on page 77-59.) • Use the show system command to display the current web redirect status. Example SMC AP(config)#web-redirect SMC AP(config)# APmgmtIP This command specifies the client IP addresses that are allowed management access to the access point through various protocols.
Page 170: Apmgmtui
• You can delete an address range just by specifying the start address, or by specifying both the start address and end address. Example This example restricts management access to the indicated addresses. SMC AP(config)#apmgmtip multiple 192.168.1.50 255.255.255.0 SMC AP(config)# APmgmtUI This command enables and disables management access to the access point through SNMP, Telnet and web interfaces.
Page 171: Command Mode
Command Mode Exec Example SMC AP#show apmanagement Management AP Information ================================= AP Management IP Mode: Any IP Telnet UI: Enable WEB UI : Enable SNMP UI : Enable ================================== SMC AP# System Management Commands 7-23...
Page 172: Show System
This command displays basic system configuration settings. Default Setting None Command Mode Exec Example SMC AP#show system System Information ========================================================== Serial Number : A123456789 System Up time : 0 days, 4 hours, 33 minutes, 29 seconds System Name...
Page 173: Show Version
This command displays the software version for the system. Command Mode Exec Example SMC AP#show version Version Information ========================================= Version: v4.3.2.2 Date : Dec 20 2005, 18:38:12 ========================================= SMC AP# show config This command displays detailed configuration information for the system.
Page 174: Command Line Interface
Command Line Interface Hardware Version Information =========================================== Hardware version R01A =========================================== Ethernet Interface Information ======================================== IP Address : 192.168.0.151 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.0.1 Primary DNS : 210.200.211.225 Secondary DNS : 210.200.211.193 Speed-duplex : 100Base-TX Full Duplex Admin status : Up Operational status...
Page 175 Logging Information ===================================================== Syslog State Logging Console State Logging Level Logging Facility Type Servers 1: 0.0.0.0 , UDP Port: 2: 0.0.0.0 , UDP Port: 3: 0.0.0.0 , UDP Port: 4: 0.0.0.0 , UDP Port: ====================================================== Radius Server Information ======================================== : 0.0.0.0 Port : 1812 : *****...
Page 176 Command Line Interface dot11InterfaceAGFail dot11StationAssociation dot11StationReAssociation dot1xAuthFail dot1xAuthSuccess dot1xMacAddrAuthSuccess iappStationRoamedFrom localMacAddrAuthFail pppLogonFail configFileVersionChanged systemDown ============================================= SNTP Information =========================================================== Service State : Disabled SNTP (server 1) IP : 137.92.140.80 SNTP (server 2) IP : 192.43.244.18 Current Time : 00 : 14, Jan 1st, 1970 Time Zone : -5 (BOGOTA, EASTERN, INDIANA) Daylight Saving...
Page 177: Show Hardware
========================================= SMC AP# show hardware This command displays the hardware version of the system. Command Mode Exec Example SMC AP#show hardware Hardware Version Information =========================================== Hardware version R01 =========================================== SMC AP# System Logging Commands These commands are used to configure system logging on the access point.
Page 178: Logging On
The logging process controls error messages saved to memory. You can use the logging level command to control the type of error messages that are stored in memory. Example SMC AP(config)#logging on SMC AP(config)# logging host This command specifies syslog servers host that will receive logging messages. Use the no form to remove syslog server host.
Page 179: Logging Console
Example SMC AP(config)#logging host 1 10.1.0.3 SMC AP(config)# logging console This command initiates logging of error messages to the console. Use the no form to disable logging to the console. Syntax logging console no logging console Default Setting Disabled Command Mode...
Page 180: Logging Facility-Type
Normal but significant condition, such as cold start Informational Informational messages only Debug Debugging messages Example SMC AP(config)#logging level alert SMC AP(config)# logging facility-type This command sets the facility type for remote logging of syslog messages. Syntax logging facility-type <type>...
Page 181: Logging Clear
However, it may be used by the syslog server to sort messages or to store messages in the corresponding database. Example SMC AP(config)#logging facility 19 SMC AP(config)# logging clear This command clears all log messages stored in the access point’s memory.
Page 182: Show Event-Log
This command displays log messages stored in the access point’s memory. Syntax show event-log Command Mode Exec Example SMC AP#show event-log Mar 09 11:57:55 Information: 802.11g:11g Radio Interface Enabled Mar 09 11:57:55 Information: 802.11g:Radio channel updated to 8 Mar 09 11:57:34 Information: 802.11g:11g Radio Interface Enabled...
Page 183: Sntp-Server Ip
The access point will poll the time servers in the order specified until a response is received. Example SMC AP(config)#sntp-server ip 10.1.0.19 SMC AP# Related Commands sntp-server enable (7-35)
Page 184: Sntp-Server Date-Time
Without SNTP, the access point only records the time starting from the factory default set at the last bootup (i.e., 00:14:00, January 1, 1970). Example SMC AP(config)#sntp-server enable SMC AP(config)# Related Commands sntp-server ip (7-35) show sntp (7-38) sntp-server date-time This command sets the system clock.
Page 185: Sntp-Server Daylight-Saving
The command sets the system clock back one hour during the specified period. Example This sets daylight savings time to be used from July 1st to September 1st. SMC AP(config)#sntp-server daylight-saving Enter Daylight saving from which month<1-12>: 6 and which day<1-31>: 1 Enter Daylight saving end to which month<1-12>: 9 and which day<1-31>: 1...
Page 186: Show Sntp
(before) or west (after) of UTC. Example SMC AP(config)#sntp-server timezone +8 SMC AP(config)# show sntp This command displays the current time and configuration settings for the SNTP client.
Page 187: Dhcp Relay Commands
• If there is no response from the primary DHCP server, and a secondary server has been configured, the agent will then attempt to send DHCP requests to the secondary server. Example SMC AP(config)#dhcp-relay enable SMC AP(config)# Table 7-8. DHCP Relay Commands DHCP Relay Commands...
Page 188: Dhcp-Relay
• secondary - The secondary DHCP server. • ip_address - IP address of the server. Default Setting Primary and secondary: 0.0.0.0 Command Mode Global Configuration Example SMC AP(config)#dhcp-relay primary 192.168.2.20 SMC AP(config)# show dhcp-relay This command displays the current DHCP relay configuration. Command Mode Exec Example...
Page 189: Snmp Commands
SNMP Commands Controls access to this access point from management stations using the Simple Network Management Protocol (SNMP), as well as the hosts that will receive trap messages. Command Function snmp-server community Sets up the community access string to permit access to SNMP commands snmp-server contact Sets the system contact string...
Page 190: Snmp-Server Community
If you enter a community string without the ro or rw option, the default is read only. Example SMC AP(config)#snmp-server community alpha rw SMC AP(config)# snmp-server contact This command sets the system contact string. Use the no form to remove the system contact information.
Page 191: Snmp-Server Location
Command Mode Global Configuration Example SMC AP(config)#snmp-server contact Paul SMC AP(config)# Related Commands snmp-server location (7-43) snmp-server location This command sets the system location string. Use the no form to remove the location string. Syntax snmp-server location <text> no snmp-server location text - String that describes the system location.
Page 192: Snmp-Server Host
• This command enables both authentication failure notifications and link-up-down notifications. • The snmp-server host command specifies the host device that will receive SNMP notifications. Example SMC AP(config)#snmp-server enable server SMC AP(config)# Related Commands snmp-server host (7-44) snmp-server host This command specifies the recipient of an SNMP notification. Use the no form to remove the specified host.
Page 193: Snmp-Server Trap
Command Usage The snmp-server host command is used in conjunction with the snmp-server enable server command to enable SNMP notifications. Example SMC AP(config)#snmp-server host 1 10.1.19.23 batman SMC AP(config)# Related Commands snmp-server enable server (7-43) snmp-server trap This command enables the access point to send specific SNMP traps (i.e., notifications).
Page 194: Snmp-Server Engine-Id
This command is used in conjunction with the snmp-server host and snmp-server enable server commands to enable SNMP notifications. Example SMC AP(config)#no snmp-server trap dot11StationAssociation SMC AP(config)# snmp-server engine-id This command is used for SNMP v3. It is used to uniquely identify the access point among all access points in the network.
Page 195: Snmp-Server User
• If the engineID is deleted or changed, all SNMP users will be cleared. You will need to reconfigure all existing users Example SMC AP(config)#snmp-server engine-id 1a:2b:3c:4d:00:ff SMC AP(config)# snmp-server user This command configures the SNMP v3 users that are allowed to manage the access point.
Page 196 • To configure a user for the RWAuth group, you must include the auth-proto and auth-passphrase keywords. • To configure a user for the RWPriv group, you must include the auth-proto, auth-passphrase, priv-proto, and priv-passphrase keywords. Example SMC AP(config)#snmp-server user User Name<1-32> :chris Group Name<1-32> :RWPriv Authtype(md5,<cr>none):md5 Passphrase<8-32>:a good secret Privacy(des,<cr>none) :des...
Page 197: Snmp-Server Targets
• The access point supports up to 10 SNMP v3 target IDs. • The SNMP v3 user name that is specified in the target must first be configured using the snmp-server user command. Example SMC AP(config)#snmp-server targets mytraps 192.168.1.33 chris SMC AP(config)# SNMP Commands 7-49...
Page 198: Snmp-Server Filter
1.3.6.1.2.1.2.2.1.1.23, the zero corresponds to the 10th subtree ID. When there are more subtree IDs than bits in the mask, the mask is padded with ones. Example SMC AP(config)#snmp-server filter trapfilter include .1 SMC AP(config)#snmp-server filter trapfilter exclude .1.3.6.1.2.1.2.2.1.1.23 7-50...
Page 199: Snmp-Server Filter-Assignments
• filter-id - A user-defined name that identifies an SNMP v3 notification filter. (Maximum length: 32 characters) Default Setting None Command Mode Global Configuration Example SMC AP(config)#snmp-server filter-assignments mytraps trapfilter SMC AP(config)#exit SMC AP#show snmp target Host ID : mytraps User : chris IP Address : 192.168.1.33...
Page 200: Show Snmp Users
Command Line Interface Example SMC AP#show snmp groups GroupName SecurityModel :USM SecurityLevel :NoAuthNoPriv GroupName :RWAuth SecurityModel :USM SecurityLevel :AuthNoPriv GroupName :RWPriv SecurityModel :USM SecurityLevel :AuthPriv SMC AP# show snmp users This command displays the SNMP v3 users and settings. Syntax...
Page 201: Show Snmp Target
Example SMC AP#show snmp group-assignments GroupName :RWPriv UserName :chris SMC AP# SMC AP# show snmp target This command displays the SNMP v3 notification target settings. Syntax show snmp target Command Mode Exec Example SMC AP#show snmp target Host ID : mytraps...
Page 202: Show Snmp Filter-Assignments
Command Line Interface show snmp filter-assignments This command displays the SNMP v3 notification filter assignments. Syntax show snmp filter-assignments Command Mode Exec Example SMC AP#show snmp filter-assignments SMC AP# 7-54 HostID FilterID mytraps trapfilter...
Page 203: Show Snmp
This command displays the SNMP configuration settings. Command Mode Exec Example SMC AP#show snmp SNMP Information ============================================== Service State Community (ro) Community (rw) Location Contact EngineId :80:00:07:e5:80:00:00:2e:62:00:00:00:18 EngineBoots:1 Trap Destinations: 192.168.1.9, Community: *****, State: Enabled 0.0.0.0, Community: *****, State: Disabled 0.0.0.0, Community: *****, State: Disabled...
Page 204: Flash/File Commands
(.), and the maximum length for file names is 32 characters. (Valid characters: A-Z, a-z, 0-9, “.”, “-”, “_”) • If the file contains an error, it cannot be set as the default file. Example SMC AP#bootfile -img.bin SMC AP# 7-56 Table 7-10. Flash/File Commands...
Page 205: Copy
• The system configuration file must be named “syscfg” in all copy commands. Example The following example shows how to upload the configuration settings to a file on the TFTP server: SMC AP#copy config tftp TFTP Source file name:syscfg TFTP Server IP:192.168.2.29 SMC AP# Flash/File Commands...
Page 206: Delete
Command Line Interface The following example shows how to download a configuration file: SMC AP#copy tftp file 1. Application image 2. Config file 3. Boot block image Select the type of download<1,2,3>: TFTP Source file name:syscfg TFTP Server IP:192.168.2.29 SMC AP# delete This command deletes a file or image.
Page 207: Dir
This command displays the name of the current operation code file that booted the system. Syntax show snmp filter-assignments Command Mode Exec Example SMC AP#show bootfile Bootfile Information =================================== Bootfile : ec-img.bin =================================== SMC AP# Description The name of the file.
Page 208: Radius Client
Command Line Interface RADIUS Client Remote Authentication Dial-in User Service (RADIUS) is a logon authentication protocol that uses software running on a central server to control access for RADIUS-aware devices to the network. An authentication server contains a database of credentials, such as users names and passwords, for each wireless client that requires access to the access point.
Page 209: Radius-Server Port
Command Mode Global Configuration Example SMC AP(config)#radius-server address 192.168.1.25 SMC AP(config)# radius-server port This command sets the RADIUS server network port. Syntax radius-server [secondary] port <port_number> • secondary - Secondary server. • port_number - RADIUS server UDP port used for authentication messages.
Page 210: Radius-Server Retransmit
RADIUS server. (Range: 1 - 30) Default Setting Command Mode Global Configuration Example SMC AP(config)#radius-server retransmit 5 SMC AP(config)# radius-server timeout This command sets the interval between transmitting authentication requests to the RADIUS server. Syntax radius-server [secondary] timeout number_of_seconds •...
Page 211: Radius-Server Port-Accounting
• When the RADIUS Accounting server UDP port is specified, a RADIUS accounting session is automatically started for each user that is successfully authenticated to the access point. Example SMC AP(config)#radius-server port-accounting 1813 SMC AP(config)# radius-server timeout-interim This command sets the interval between transmitting accounting updates to the RADIUS server.
Page 212: Radius-Server Radius-Mac-Format
Command Line Interface Example SMC AP(config)#radius-server timeout-interim 500 SMC AP(config)# radius-server radius-mac-format This command sets the format for specifying MAC addresses on the RADIUS server. Syntax radius-server radius-mac-format <multi-colon | multi-dash | no-delimiter | single-dash> • multi-colon - Enter MAC addresses in the form xx:xx:xx:xx:xx:xx.
Page 213: Show Radius
This command displays the current settings for the RADIUS server. Default Setting None Command Mode Exec Example SMC AP#show radius Radius Server Information ======================================== : 0.0.0.0 Port : 1812 : ***** Retransmit Timeout Radius MAC format : no-delimiter...
Page 214: 802.1X Authentication
Command Line Interface 802.1X Authentication The access point supports IEEE 802.1X access control for wireless clients. This control feature prevents unauthorized access to the network by requiring an 802.1X client application to submit user credentials for authentication. Client authentication is then verified by a RADIUS server using EAP (Extensible Authentication Protocol) before the access point grants client access to the network.
Page 215: 802.1X Broadcast-Key-Refresh-Rate
Command Mode Global Configuration Command Usage • The access point uses SMC APOL (Extensible Authentication Protocol Over LANs) packets to pass dynamic unicast session and broadcast keys to wireless clients. The 802.1x broadcast-key-refresh-rate command specifies the interval after which the broadcast keys are changed. The 802.1x session-key-refresh-rate command specifies the interval after...
Page 216: 802.1X Session-Key-Refresh-Rate
• Dynamic broadcast key rotation allows the access point to generate a random group key and periodically update all key-management capable wireless clients. Example SMC AP(config)#802.1X broadcast-key-refresh-rate 5 SMC AP(config)# 802.1x session-key-refresh-rate This command sets the interval at which unicast session keys are refreshed for associated stations using dynamic keying.
Page 217: 802.1X-Supplicant Enable
Global Configuration Example SMC AP(config)#802.1x session-timeout 300 SMC AP(config)# 802.1x-supplicant enable This command enables the access point to operate as an 802.1X supplicant for authentication. Use the no form to disable 802.1X authentication of the access point. Syntax 802.1x-supplicant enable no 802.1x-supplicant...
Page 218: Show Authentication
Global Configuration Command Usage The access point currently only supports EAP-MD5 CHAP for 802.1X supplicant authentication. Example SMC AP(config)#802.1x-supplicant user WA6102 dot1xpass SMC AP(config)# show authentication This command shows all 802.1X authentication settings, as well as the address filter table.
Page 219: Mac Address Authentication
• denied - Only MAC addresses entered as “allowed” in the address filtering table are allowed. Default allowed Command Mode Global Configuration Example SMC AP(config)#address filter default denied SMC AP(config)# MAC Address Authentication Mode Page 7-71 7-72 7-72...
Page 220: Address Filter Entry
• An entry in the address table may be allowed or denied access depending on the global setting configured for the address entry default command. Example SMC AP(config)#address filter entry 00-70-50-cc-99-1a allowed SMC AP(config)# Related Commands address filter default (7-71) 802.1x-supplicant user (7-69)
Page 221: Mac-Authentication Server
Command Mode Global Configuration Example SMC AP(config)#address filter delete 00-70-50-cc-99-1b SMC AP(config)# Related Commands 802.1x-supplicant user (7-69) mac-authentication server This command sets address filtering to be performed with local or remote options. Use the no form to disable MAC address authentication.
Page 222: Filtering Commands
Default 0 (disabled) Command Mode Global Configuration Example SMC AP(config)#mac-authentication session-timeout 1 SMC AP(config)# Filtering Commands The commands described in this section are used to filter communications between wireless clients, control access to the management interface from wireless clients, and filter traffic using specific Ethernet protocol types.
Page 223: Filter Local-Bridge
This command can disable wireless-to-wireless communications between clients via the access point. However, it does not affect communications between wireless clients and the wired network. Example SMC AP(config)#filter local-bridge SMC AP(config)# filter ap-manage This command prevents wireless clients from accessing the management interface on the access point.
Page 224: Filter Uplink Enable
Disabled Command Mode Global Configuration Example SMC AP(config)#filter uplink add 00-12-34-56-78-9a SMC AP(config)# filter ethernet-type enable This command checks the Ethernet type on all incoming and outgoing Ethernet packets against the protocol filtering table. Use the no form to disable this feature.
Page 225: Filter Ethernet-Type Protocol
Use the filter ethernet-type enable command to enable filtering for Ethernet types specified in the filtering table, or the no filter ethernet-type enable command to disable all filtering based on the filtering table. Example SMC AP(config)#filter ethernet-type protocol ARP SMC AP(config)# Related Commands filter ethernet-type enable (7-76)
Page 226: Show Filters
Command Line Interface show filters This command shows the filter options and protocol entries in the filter table. Command Mode Exec Example SMC AP#show filters Protocol Filter Information ======================================================================= Local Bridge :Traffic among all client STAs blocked AP Management :ENABLED...
Page 227: Bridge Mode
SMC2890W-AG: Slave SMC2891W-AG: Master Command Mode Interface Configuration (Wireless) Example SMC AP(if-wireless a)#bridge mode master SMC AP(if-wireless a)# bridge role (WDS) This command selects the bridge operation mode for the radio interface. Syntax bridge role <ap | repeater | bridge | root-bridge>...
Page 228: Bridge Channel-Auto-Sync
• The bridge link on the radio interface always uses the default VAP interface. In any bridge mode, VAP interfaces 1 to 7 are not available for use. Example SMC AP(if-wireless a)#bridge role root-bridge SMC AP(if-wireless a)# bridge channel-auto-sync This command allows a child bridge to automatically find the operating channel of its parent bridge.
Page 229: Bridge-Link Child
2 to 6. Index number 1 is reserved for the parent link, which must be set using the bridge parent command. Example SMC AP(if-wireless a)#bridge-link child 2 00-08-3e-84-bc-6d SMC AP(if-wireless a)#bridge-link child 3 00-08-3e-85-13-f2 SMC AP(if-wireless a)#bridge-link child 4 00-08-3e-84-79-31...
Page 230: Bridge Dynamic-Entry Age-Time
If the MAC address of an entry in the address table is not seen on the associated interface for longer than the aging time, the entry is discarded. Example SMC AP(config)#bridge dynamic-entry age-time 100 SMC AP(config)# show bridge aging-time This command displays the current WDS forwarding table aging time setting.
Page 231: Show Bridge Filter-Entry
This command displays current entries in the WDS forwarding table. Command Mode Exec Example SMC AP#show bridge filter-entry max entry numbers =512 current entry nums =13 ***************************************************************************** *********************** Bridge MAC Addr Table ******************************* ***************************************************************************** Port 01 80 c2 00 00 00...
Page 232 00-00-00-00-00-00 Child 4: 00-00-00-00-00-00 Child 5: 00-00-00-00-00-00 Child 6: 00-00-00-00-00-00 STAs: No WDS Stations. SMC AP# SMC AP#show bridge link wireless a 2 Port-No : 11 status : Enabled state : Disabled priority path cost : 19 message age Timer...
Page 233: Spanning Tree Commands
Default Setting Enabled Command Mode Global Configuration Example This example globally enables the Spanning Tree Protocol. SMC AP(config)bridge stp enable SMC AP(config) Table 7-15. Bridge Commands Function Enables the Spanning Tree feature Configures the spanning tree bridge forward time Configures the spanning tree bridge hello time...
Page 234: Bridge Stp Forwarding-Delay
Example SMC AP(config)#bridge stp forwarding-delay 20 SMC AP(config)# bridge stp hello-time Use this command to configure the spanning tree bridge hello time globally for the wireless bridge.
Page 235: Bridge Stp Max-Age
Example SMC AP(config)#bridge stp hello-time 5 SMC AP(config)# bridge stp max-age Use this command to configure the spanning tree bridge maximum age globally for the wireless bridge. Use the no form to restore the default. Syntax bridge stp max-age <seconds>...
Page 236: Bridge-Link Path-Cost
• Path cost takes precedence over port priority. Example SMC AP(if-wireless a)#bridge-link path-cost 1 50 SMC AP(if-wireless a)# bridge-link port-priority Use this command to configure the priority for the specified port.
Page 237: Show Bridge Stp
• Where more than one port is assigned the highest priority, the port with lowest numeric identifier will be enabled. Example SMC AP(if-wireless a)#bridge-link port-priority 1 64 SMC AP(if-wireless a)# Related Commands bridge-link path-cost (7-88)
Page 238: Ethernet Interface Commands
Shows the status for the Ethernet interface interface ethernet This command enters Ethernet interface configuration mode. Default Setting None Command Mode Global Configuration Example To specify the 10/100Base-TX network interface, enter the following command: SMC AP(config)#interface ethernet SMC AP(if-ethernet)# 7-90 Mode Page 7-90 IC-E 7-91 IC-E...
Page 239: Dns Server
Command Mode Global Configuration Command Usage The primary and secondary name servers are queried in sequence. Example This example specifies two domain-name servers. SMC AP(if-ethernet)#dns primary-server 192.168.1.55 SMC AP(if-ethernet)#dns secondary-server 10.1.0.55 SMC AP(if-ethernet)# Related Commands show interface ethernet (7-94) ip address This command sets the IP address for the access point.
Page 240: Ip Dhcp
Anything outside this format will not be accepted by the configuration program. Example SMC AP(config)#interface ethernet Enter Ethernet configuration commands, one per line. SMC AP(if-ethernet)#ip address 192.168.1.2 255.255.255.0 192.168.1.253 SMC AP(if-ethernet)# Related Commands ip dhcp (7-92) ip dhcp This command enables the access point to obtain an IP address from a DHCP server.
Page 241: Speed-Duplex
Requests will be broadcast periodically by this device in an effort to learn its IP address. (DHCP values can include the IP address, subnet mask, and default gateway.) Example SMC AP(config)#interface ethernet Enter Ethernet configuration commands, one per line. SMC AP(if-ethernet)#ip dhcp SMC AP(if-ethernet)#...
Page 242: Shutdown
(e.g., excessive collisions), and reenable it after the problem has been resolved. You may also want to disable the Ethernet port for security reasons. Example The following example disables the Ethernet port. SMC AP(if-ethernet)#shutdown SMC AP(if-ethernet)# show interface ethernet This command displays the status for the Ethernet interface. Syntax...
Page 243: Wireless Interface Commands
Example SMC AP#show interface ethernet Ethernet Interface Information ======================================== IP Address : 192.168.2.2 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.1.253 Primary DNS : 192.168.1.55 Secondary DNS : 10.1.0.55 Speed-duplex : 100Base-TX Half Duplex Admin status : Up Operational status...
Page 244 Command Line Interface Table 7-17. Wireless Interface Commands Command Function beacon-interval Configures the rate at which beacon signals are transmitted from the access point dtim-period Configures the rate at which stations in sleep mode must wake up to receive broadcast/multicast transmissions fragmentation- length Configures the minimum packet size that can be...
Page 245: Interface Wireless
Default Setting None Command Mode Global Configuration Example To specify the 802.11a interface, enter the following command: SMC AP(config)#interface wireless a SMC AP(if-wireless a)# This command provides access to the VAP (Virtual Access Point) interface configuration mode. Syntax vap <vap-id>...
Page 246: Speed
(e.g., setting the speed to 54 Mbps limits the effective maximum speed to 108 Mbps). Example SMC AP(if-wireless g)#speed 6 SMC AP(if-wireless g)# turbo This command sets the access point to an enhanced proprietary modulation mode (not regulated in IEEE 802.11a) that provides a higher data rate of up to 108 Mbps.
Page 247: Multicast-Data-Rate
(Options for 802.11a: 6, 12, 24 Mbps) (Options for 802.11b/g; 1, 2, 5.5, 11 Mbps) Default Setting 1 Mbps for 802.11b/g 6 Mbps for 802.11a Command Mode Interface Configuration (Wireless) Example SMC AP(if-wireless g)#multicast-data-rate 5.5 SMC AP(if-wireless g)# Wireless Interface Commands 7-99...
Page 248: Channel
• For most wireless adapters, the channel for wireless clients is automatically set to the same as that used by the access point to which it is linked. Example SMC AP(if-wireless g)#channel 1 SMC AP(if-wireless g)# transmit-power This command adjusts the power of the radio signals transmitted from the access point.
Page 249: Radio-Mode
You also have to ensure that high strength signals do not interfere with the operation of other radio devices in your area. Example SMC AP(if-wireless g)#transmit-power half SMC AP(if-wireless g)# radio-mode This command forces the operating mode for the 802.11g wireless interface.
Page 250: Preamble
Command Line Interface Example SMC AP(if-wireless g)#radio-mode g SMC AP(if-wireless g)# preamble This command sets the length of the signal preamble that is used at the start of a 802.11b/g data transmission. Syntax preamble [long | short-or-long] • long - Sets the preamble to long (192 microseconds).
Page 251: Antenna Control
The antenna ID must be selected in conjunction with the antenna control method to configure proper use of any of the antenna options. Example SMC AP(if-wireless g)#antenna control right SMC AP(if-wireless g)# antenna id This command specifies the antenna type connected to the access point represented by a four-digit hexadecimal ID number, either the integrated antenna (ID:0000) or an optional external antenna.
Page 252: Antenna Location
• If there is no integrated antenna on the unit for the wireless interface, the default setting is indicated as "id=0x0000, module=NA." Example SMC AP(if-wireless g)#antenna id ? id=0x0000, module=NA id=0x0106, module=ACC04-050090 Directional Panel Ant. id=0x0107, module=ACC04-05028A Omni-Directional Ant.
Page 253: Beacon-Interval
The beacon signals allow wireless clients to maintain contact with the access point. They may also carry power-management information. Example SMC AP(if-wireless g)#beacon-interval 150 SMC AP(if-wireless g)# dtim-period This command configures the rate at which stations in sleep mode must wake up to receive broadcast/multicast transmissions.
Page 254: Fragmentation-Length
Using higher DTIM values reduces the power used by stations in Power Save mode, but delays the transmission of broadcast/multicast frames. Example SMC AP(if-wireless g)#dtim-period 100 SMC AP(if-wireless g)# fragmentation-length This command configures the minimum packet size that can be fragmented when passing through the access point.
Page 255: Rts-Threshold
CTS frame to notify the sending station that it can start sending data. • Access points contending for the wireless medium may not be aware of each other. The RTS/CTS mechanism can solve this “Hidden Node” problem. Example SMC AP(if-wireless g)#rts-threshold 256 SMC AP(if-wireless g)# Wireless Interface Commands 7-107...
Page 256: Super-A
Super A enhancements include bursting, compression, and fast frames. Maximum throughput ranges between 40 to 60 Mbps for connections to Atheros-compatible clients. Example SMC AP(if-wireless a)#super a SMC AP(if-wireless a)# super-g This command enables Atheros proprietary Super G performance enhancements.
Page 257: Description
Default Setting Radio A: Enterprise 802.11a Access Point Radio G: Enterprise 802.11g Access Point Command Mode Interface Configuration (Wireless-VAP) Example SMC AP(if-wireless g: VAP[0])#description RD-AP#3 SMC AP(if-wireless g: VAP[0])# ssid This command configures the service set identifier (SSID). Syntax ssid <string>...
Page 258: Closed-System
This command configures the maximum number of clients that can be associated with the access point at the same time. Syntax max-association <count> count - Maximum number of associated stations. (Range: 0-64) Default Setting Command Mode Interface Configuration (Wireless-VAP) Example SMC AP(if-wireless g: VAP[0])#max-association 32 SMC AP(if-wireless g)# 7-110...
Page 259: Assoc-Timeout-Interval
- The number of minutes of inactivity before disassociation. (Range: 5-60) Default Setting Command Mode Interface Configuration (Wireless-VAP) Example SMC AP(if-wireless g: VAP[0])#association-timeout-interval 20 SMC AP(if-wireless g: VAP[0])# auth-timeout-value This command configures the time interval within which clients must complete authentication to the VAP interface. Syntax auth-timeout-value <minutes>...
Page 260 Default Setting Interface enabled Command Mode Interface Configuration (Wireless-VAP) Command Usage You must first enable VAP interface 0 before you can enable VAP interfaces 1, 2, 3, 4, 5, 6, or 7. Example SMC AP(if-wireless g: VAP[0])#shutdown SMC AP(if-wireless g)# 7-112...
Page 261: Show Interface Wireless
• a - 802.11a radio interface. • g - 802.11g radio interface. • vap-id - The number that identifies the VAP interface. (Options: 0~3) Command Mode Exec Example SMC AP#show interface wireless g 0 Wireless Interface Information ========================================================================= ----------------Identification------------------------------------------- Description SSID...
Page 262 WMM BSS Parameters AC0(Best Effort) AC1(Background) AC2(Video) AC3(Voice) WMM AP Parameters AC0(Best Effort) AC1(Background) AC2(Video) AC3(Voice) ========================================================================= SMC AP# 7-114 : DISABLED : 30 min : 30 min : 0 min : Diversity : 0x0000(Default Antenna) : Indoor : SUPPORTED : Acknowledge...
Page 263: Show Station
This command shows the wireless clients associated with the access point. Command Mode Exec Example SMC AP#show station Station Table Information ======================================================== if-wireless A VAP [0] 802.11a Channel : 60 No 802.11a Channel Stations. if-wireless G VAP [0] 802.11g Channel : 1...
Page 264: Rogue Ap Detection Commands
Command Line Interface Rogue AP Detection Commands A “rogue AP” is either an access point that is not authorized to participate in the wireless network, or an access point that does not have the correct security configuration. Rogue APs can potentially allow unauthorized users access to the network.
Page 265: Rogue-Ap Authenticate
• The access point sends Syslog messages for each detected access point during a rogue AP scan. Example SMC AP(if-wireless g)#rogue-ap enable configure either syslog or trap or both to receive the rogue APs detected. SMC AP(if-wireless g)# rogue-ap authenticate This command forces the unit to authenticate all access points on the network.
Page 266: Rogue-Ap Duration
• A long scan duration time will detect more access points in the area, but causes more disruption to client access. Example SMC AP(if-wireless g)#rogue-ap duration 200 SMC AP(if-wireless g)# Related Commands rogue-ap interval (7-118) rogue-ap interval This command sets the interval at which to scan for access points.
Page 267: Rogue-Ap Scan
AP. Example SMC AP(if-wireless g)#rogue-ap scan SMC AP(if-wireless g)#rogueApDetect Completed (Radio G) : 9 APs detected rogueAPDetect (Radio G): refreshing ap database now SMC AP(if-wireless g)# Rogue AP Detection Commands...
Page 268: Show Rogue-Ap
Command Line Interface show rogue-ap This command displays the current rogue AP database. Command Mode Exec Example SMC AP#show rogue-ap 802.11a Channel : Rogue AP Status AP Address(BSSID) ====================================================================== 802.11g Channel : Rogue AP Status AP Address(BSSID) ====================================================================== 00-04-e2-2a-37-23 00-04-e2-2a-37-3d...
Page 269: Auth
Table 7-19. Wireless Security Commands Command Function pmksa-lifetime Sets the lifetime PMK security associations pre-authentication Enables WPA2 pre-authentication for fast roaming auth This command configures authentication for the VAP interface. Syntax auth <open-system | shared-key | wpa | wpa-psk | wpa2 | wpa2-psk | wpa-wpa2-mixed | wpa-wpa2-psk-mixed | >...
Page 270 Command Line Interface • To use WEP shared-key authentication, set the authentication type to “shared-key” and define at least one static WEP key with the key command. Encryption is automatically enabled by the command. • To use WEP encryption only (no authentication), set the authentication type to “open-system.”...
Page 271: Encryption
Example SMC AP(if-wireless g: VAP[0])#auth shared-key SMC AP(if-wireless g)# Related Commands encryption (7-123) key (7-124) encryption This command enables data encryption for wireless communications. Use the no form to disable data encryption. Syntax encryption no encryption Default Setting disabled Command Mode...
Page 272: Key
• The encryption index, length and type configured in the access point must match those configured in the clients. Example SMC AP(if-wireless g)#key 1 64 hex 1234512345 SMC AP(if-wireless g)#key 2 128 ascii asdeipadjsipd SMC AP(if-wireless g)#key 3 64 hex 12345123451234512345123456...
Page 273: Transmit-Key
• In a mixed-mode environment with clients using static and dynamic keys, select transmit key index 2, 3, or 4. The access point uses transmit key index 1 for the generation of dynamic keys. Example SMC AP(if-wireless g: VAP[0])#transmit-key 2 SMC AP(if-wireless g)# Wireless Security Commands 7-125...
Page 274: Cipher-Suite
Command Line Interface cipher-suite This command defines the cipher algorithm used to encrypt the global key for broadcast and multicast traffic when using Wi-Fi Protected Access (WPA) security. Syntax multicast-cipher <aes-ccmp | tkip | wep> • aes-ccmp - Use AES-CCMP encryption for the unicast and multicast cipher.
Page 275: Mic_Mode
Therefore to implement WPA2 in the network, wireless clients must be upgraded to WPA2-compliant hardware. Example SMC AP(if-wireless g: VAP[0])#multicast-cipher TKIP SMC AP(if-wireless g)# mic_mode This command specifies how to calculate the Message Integrity Check (MIC).
Page 276: Wpa-Pre-Shared-Key
• If WPA or WPA2 is used with pre-shared-key mode, all wireless clients must be configured with the same pre-shared key to communicate with the access point’s VAP interface. Example SMC AP(if-wireless g: VAP[0])#wpa-pre-shared-key ASCII agoodsecret SMC AP(if-wireless g)# Related Commands auth (7-121)
Page 277: Pre-Authentication
• The access point can store up to 256 entries in the PMKSA cache. Example SMC AP(if-wireless g: VAP[0])#wpa-pre-shared-key ASCII agoodsecret SMC AP(if-wireless g: VAP[0])# pre-authentication This command enables WPA2 pre-authentication for fast secure roaming.
Page 278: Link Integrity Commands
• Pre-authentication requires all access points in the network to be on the same IP subnet. Example SMC AP(if-wireless g: VAP[0])#wpa-pre-shared-key ASCII agoodsecret SMC AP(if-wireless g: VAP[0])# Link Integrity Commands The access point provides a link integrity feature that can be used to ensure that wireless clients are connected to resources on the wired network.
Page 279: Link-Integrity Ping-Detect
<host_name | ip_address> no link-integrity ping-host • host_name - Alias of the host. • ip_address - IP address of the host. Default Setting None Command Mode Global Configuration Example SMC AP(config)#link-integrity ping-host 192.168.2.20 SMC AP(config)# Link Integrity Commands 7-131...
Page 280: Link-Integrity Ping-Interval
- The time between Pings. (Range: 5 - 60 seconds) Default Setting 30 seconds Command Mode Global Configuration Example SMC AP(config)#link-integrity ping-interval 20 SMC AP(config)# link-integrity ping-fail-retry This command configures the number of consecutive failed Ping counts before the link is determined as lost. Syntax link-integrity ping-fail-retry <counts>...
Page 281: Show Link-Integrity
Command Mode Global Configuration Example SMC AP(config)#link-integrity ethernet-detect Notification : Ethernet Link Detect SUCCESS - RADIO(S) ENABLED SMC AP(config)# show link-integrity This command displays the current link integrity configuration. Command Mode Exec Example SMC AP#show link-integrity Link Integrity Information ===========================================================...
Page 282: Iapp Commands
In particular, this can create a problem for clients roaming between access points from different vendors. This command is used to enable or disable 802.11f handover signaling between different access points, especially in a multi-vendor environment. Example SMC AP(config)#iapp SMC AP(config)# 7-134...
Page 283: Vlan Commands
VLAN Commands The access point can enable the support of VLAN-tagged traffic passing between wireless clients and the wired network. Up to 64 VLAN IDs can be mapped to specific wireless clients, allowing users to remain within the same VLAN as they move around a campus site.
Page 284: Management-Vlanid
• Traffic entering the Ethernet port must be tagged with a VLAN ID that matches the access point’s native VLAN ID, or with a VLAN tag that matches one of the wireless clients currently associated with the access point. Example SMC AP(config)#vlan enable Reboot system now? <y/n>: y Related Commands management-vlanid (7-136) management-vlanid This command configures the management VLAN ID for the access point.
Page 285: Wmm Commands
• If the VLAN ID has not been configured for a client on the RADIUS server, then the frames are tagged with the default VLAN ID of the VAP interface. Example SMC AP(if-wireless g: VAP[0])#vlan-id 3 SMC AP(if-wireless g: VAP[0])# WMM Commands The access point implements QoS using the Wi-Fi Multimedia (WMM) standard.
Page 286: Wmm
Default supported Command Mode Interface Configuration (Wireless) Example SMC AP(if-wireless a)#wmm required SMC AP(if-wireless a)# wmm-acknowledge-policy This command allows the acknowledgement wait time to be enabled or disabled for each Access Category (AC). Syntax wmm-acknowledge-policy <ac_number>...
Page 287: Wmmparam
Example SMC AP(if-wireless a)#wmm-acknowledge-policy 0 noack SMC AP(if-wireless a)# wmmparam This command configures detailed WMM parameters that apply to the access point (AP) or the wireless clients (BSS).
Page 288 LogCwMin LogCwMax AIFS TXOP Limit Admission Control Disabled Command Mode Interface Configuration (Wireless) Example SMC AP(if-wireless a)#wmmparams ap 0 4 6 3 1 1 SMC AP(if-wireless a)# 7-140 AC1 (Background) AC2 (Video) Disabled Disabled AC1 (Background) AC2 (Video) Disabled Disabled...
Page 289: Appendix A: Troubleshooting
Appendix A: Troubleshooting Check the following items before you contact local Technical Support. If wireless clients cannot access the network, check the following: • Be sure the access point and the wireless clients are configured with the same Service Set ID (SSID). •...
Page 290 Troubleshooting If you cannot access the on-board configuration program via a serial port connection: • Be sure you have set the terminal emulator program to VT100 compatible, 8 data bits, 1 stop bit, no parity and 9600 bps. • Check that the null-modem serial cable conforms to the pin-out connections provided on page B-3.
Page 291: Appendix B: Cables And Pinouts
Appendix B: Cables and Pinouts Twisted-Pair Cable Assignments For 10/100BASE-TX connections, a twisted-pair cable must have two pairs of wires. Each wire pair is identified by two different colors. For example, one wire might be green and the other, green with white stripes. Also, an RJ-45 connector must be attached to both ends of the cable.
Page 292: Straight-Through Wiring
Cables and Pinouts Table B-1. 10/100BASE-TX MDI Port Pinouts MDI Signal Name Transmit Data plus (TD+) Transmit Data minus (TD-) Receive Data plus (RD+) GND (Positive Vport) GND (Positive Vport) Receive Data minus (RD-) -48V feeding power (Negative- Vport) -48V feeding power (Negative- Vport) Note: The “+”...
Page 293: Crossover Wiring
Crossover Wiring Because the 10/100 Mbps port on the access point uses an MDI pin configuration, you must use “crossover” cable for network connections to PCs, servers or other end nodes that only have MDI ports. However, if the device to which you are connecting supports auto-MDIX operation, you can use either “straight-through”...
Page 294: 8-Pin Din To Rj-45 Cable Wiring
Cables and Pinouts 8-Pin DIN to RJ-45 Cable Wiring To construct an extended Ethernet cable to connect from the power injector’s RJ-45 Output port to the wireless bridge’s 8-pin DIN connector, follow the wiring diagram below. Use Category 5 or better UTP or STP cable, maximum length 100 m (328 ft), and be sure to connect all four wire pairs.
Page 295: Appendix C: Specifications
Appendix C: Specifications General Specifications Maximum Channels 802.11a: US & Canada: 13 (normal mode), 5 (turbo mode) Japan: 4 (normal mode), 1 (turbo mode) ETSI: 11 channels (normal mode), 4 (turbo mode) Taiwan: 8 (normal mode), 3 (turbo mode) 802.11b/g: FCC/IC: 1-11 ETSI: 1-13 France: 10-13...
Page 296 Specifications Operating Frequency 802.11a: 5.15 ~ 5.25 GHz (lower band) US/Canada, Japan 5.25 ~ 5.35 GHz (middle band) US/Canada 5.725 ~ 5.825 GHz (upper band) US/Canada 5.50~ 5.70 GHz Europe 5.25 ~ 5.35 GHz (middle band) Taiwan 5.725 ~ 5.825 GHz (high band) Taiwan 802.11b: 2.4 ~ 2.4835 GHz (US, Canada, ETSI) 2.4 ~ 2.497 GHz (Japan)
Page 297: General Specifications
Wireless Radio/Regulatory Certification ETSI 300 328 (11b/g), 301 893 (11a Full range), 301 489 (DC power) FCC Part 15C 15.247/15.207 (11b/g), Part 15E 15.407 (11a Full range) Wi-Fi TELEC RSS210(Canada) C-Tick Electromagnetic Compatibility CE Class B (EN55022) CE EN55024, IEC61000-3-2, IEC61000-3-3, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11 FCC Class B Part 15 VCCI Class B...
Page 298: Sensitivity
Specifications Sensitivity IEEE 802.11a Sensitivity (GHz - dBm) Modulation/Rates 5.15-5.250 BPSK (6 Mbps) BPSK (9 Mbps) QPSK (12 Mbps) QPSK (18 Mbps) 16 QAM (24 Mbps) 16 QAM (36 Mbps) 64 QAM (48 Mbps) 64QAM(54 Mbps) Data Rate 6 Mbps 9 Mbps 12 Mbps 17 Mbps...
Page 299: Transmit Power
Transmit Power Table C-4 Transmit Power 802.11a IEEE 802.11a Maximum Output Power (GHz - dBm) Data Rate 5.15-5.250 6 Mbps 9 Mbps 12 Mbps 8 Mbps 24 Mbps 36 Mbps 48 Mbps 17.5 54 Mbps 17.5 Table C-5 Transmit Power 802.11g IEEE 802.11g Maximum Output Power (GHz - dBm) Data Rate...
Page 300 Specifications...
Page 301: Appendix D: Montieren Der Bridge
Appendix D: Montieren der Bridge Die Bridge kann auf folgenden Oberflächentypen montiert werden: • Mast • Wand oder elektrischer Kasten (NEMA Enclosure) Die Bridge darf nur im Freien verwendet werden. Installieren Sie die Achtung: Bridge nicht in Innenräumen. Verwenden der Halterung für Mastmontage Montieren Sie das Gerät anhand folgender Schritte mit der Montagehalterung an einen Stahlmast oder eine Stahlröhre mit einem Durchmesser von 1,5 bis 2 Zoll: Befestigen Sie die Halterung immer so an einen Mast, dass das offene Ende...
Page 302 Montieren der Bridge Stecken Sie die Ränder der V-förmigen Halterung in die Aussparungen in der rechteckigen Platte und ziehen Sie die Muttern fest an. Schlitze Befestigen Sie die verstellbare, rechteckige Platte mit den beigefügten Schrauben an der Bridge.
Page 303: Verwenden Der Halterung Für Wandmontage
Befestigen Sie die Bridge mit Halter an der am Mast angebrachten Platte. Befestigen Sie die drahtlose Bridge mit den beigefügten Muttern an der Halterung. Berücksichtigen Sie dabei die Ausrichtung der Antennenpolarisierung; alle Antennen in einem Link müssen mit derselben Polarisierung montiert werden. Verwenden der Halterung für Wandmontage Montieren Sie das Gerät anhand folgender Schritte mit der Halterung für Wandmontage an eine Wand:...
Page 304 Montieren der Bridge Halten Sie die Halterung an der gewünschten Stelle an und markieren Sie die Positionen der drei Löcher für die Montageschrauben. Bohren Sie drei Löcher in die Wand, passend zu den Schrauben und den Dübeln, die der Halterung beigelegt sind, und befestigen Sie die Halterung an der Wand.
Page 305: Anschließen Der Externen Antennen
Verbinden Sie das Ethernet-Kabel (und das Netzkabel, falls erforderlich) mit den Anschlüssen auf der Vorderseite der Bridge. Anschließen der externen Antennen Die in der Bridge eingebaute Antenne ist ihre Hauptantenne. Für einige Anwendungen, z.B. Einsatz eines SMC2890W-AG/AM-Geräts als Bridge-Link oder Zugriffspunkt, müssen Sie externe Antennen anbringen und sie an die Brücke anschließen.
Page 306: Anschließen Der Kabel An Das Gerät
Montieren der Bridge 2.4 GHz Anschluss Typ N 5 GHz Anschluss Typ N HF-Koaxialkabel Anschließen der Kabel an das Gerät Verbinden Sie das Ethernet-Kabel mit dem Ethernet-Port der drahtlosen Bridge. Umwickeln Sie als zusätzlichen Schutz gegen Regen oder Feuchtigkeit den Ethernet-Anschluss mit wasserdichtem Klebeband (nicht mitgeliefert).
Page 307: Anschließen Des Poe Injectors
Ethernet) auf Basis des IEEE 802.3af-Standards. Versuchen Sie nicht, das Gerät dadurch mit Strom zu versorgen, indem Sie es direkt an einen Netzwerk-Switch anschließen, der über IEEE 802.3af PoE verfügt. Schließen Sie das Gerät immer an das mitgelieferte Injector-Modul für Stromversorgung an.
Page 308 Montieren der Bridge Ethernet-Kabel vom LAN-Switch Stecken Sie den Netzleitungsstecker direkt in den standardmäßigen Netzanschluss des Injector-Moduls. Verbinden Sie das andere Ende der Netzleitung mit einer geerdeten, 3-poligen Netzstromquelle. Bei internationaler Verwendung müssen Sie eventuell die Netzleitung Hinweis: austauschen. Sie müssen eine Netzleitung verwenden, die für den Steckdosentyp in Ihrem Land geprüft und abgenommen ist.
Page 309: Glossary
Glossary 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3 or better UTP cable. 100BASE-TX IEEE 802.3u specification for 100 Mbps Fast Ethernet over two pairs of Category 5 or better UTP cable. Access Point An internetworking device that seamlessly connects wired and wireless networks.
Page 310: Broadcast Key
Glossary Broadcast Key Broadcast keys are sent to stations using 802.1X dynamic keying. Dynamic broadcast key rotation is often used to allow the access point to generate a random group key and periodically update all key-management capable wireless clients. CSMA/CA Carrier Sense Multiple Access with Collision Avoidance.
Page 311: Mac Address
6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps. IEEE 802.11g is also backward compatible with IEEE 802.11b. IEEE 802.1X Port Authentication controls access to the switch ports by requiring users to first enter a user ID and password for authentication. Infrastructure An integrated wireless and wired LAN is called an infrastructure configuration.
Page 312: Rts Threshold
Glossary Power over Ethernet (PoE) A specification for providing both power and data to low-power network devices using a single Category 5 Ethernet cable. PoE provides greater flexibility in the locating of access point’s and network devices, and significantly decreased installation costs. RADIUS A logon authentication protocol that uses software running on a central server to control access to the network.
Page 313 Glossary Temporal Key Integrity Protocol (TKIP) A data encryption method designed as a replacement for WEP. TKIP avoids the problems of WEP static keys by dynamically changing data encryption keys. Trivial File Transfer Protocol (TFTP) A TCP/IP protocol commonly used for software downloads. Virtual Access Point (VAP) Virtual AP technology multiplies the number of Access Points present within the RF footprint of a single physical access device.
Page 314: Index
Index Numerics 802.11g 7-97 AES 6-82 authentication 6-12 cipher suite 6-84, 7-122 closed system 7-110 configuring 6-12 MAC address 6-13, 7-71, 7-72 type 6-70, 7-110 web redirect 6-13, 7-20 Basic Service Set See BSS beacon interval 6-60, 7-105 rate 6-60, 7-105 BOOTP 7-91, 7-92 BPDU 6-24 BSS 2-2...
Page 315 Index firmware displaying version 6-30, 7-25 upgrading 6-29, 6-31, 7-57 fragmentation 7-106 gateway address 5-2, 6-6, 7-1, 7-91 hardware version, displaying 7-25 HTTP, secure server 7-20 HTTPS 7-19 IAPP 7-134 IEEE 802.11a 1-1, 6-51, 7-97 configuring interface 6-53, 7-97 maximum data rate 7-99 radio channel 7-100 IEEE 802.11b 6-51 IEEE 802.11f 7-134...
Page 316 RSSI BNC 1-7 threshold 6-61, 7-107 Secure Socket Layer See SSL security, options 6-70, 6-71 session key 6-86, 6-87, 7-68 shared key 6-76, 7-124 Simple Network Time Protocol See SNTP SNMP 6-41, 7-41 community name 7-42 community string 7-42 enabling traps 6-42, 7-43 trap destination 6-42, 7-44 trap manager 6-42, 7-44 SNTP 6-35, 7-35...
