- Page 1 INSTALLATION GUIDE 802.11a/b/g/n Outdoor Dual Band 802.11a/b/g/n Outdoor Wireless Access Point Dual-Band Wireless Access Point SMC2890W-AN, SMC2891W-AN...
- Page 2 Outdoor Access Point Installation Guide No. 1, Creation Road III, Hsinchu Science Park, 30077, Taiwan, R.O.C. January 2013 Tel: +886 3 5638888 Pub. # 149100000208A Fax: +886 3 6686111 E012013-CS-R01...
- Page 3 Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC.
-
Page 4: Warranty And Product Registration
Warranty and Product Registration To register SMC products and to review the detailed warranty statement, please refer to the Support Section of the SMC Website at http://www.smc.com. – 4 –... -
Page 5: How To Use This Guide
How to Use This Guide This guide includes detailed information on the Access Point (AP) hardware, including network ports, power, cabling requirements, as well as plug-in transceivers. This guide also provides general installation guidelines and recommended procedures. To deploy this AP effectively and ensure trouble-free operation, you should first read the relevant sections in this guide so that you are familiar with all its hardware components. - Page 6 How to Use This Guide ◆ Chapter 6 - AP Management — Connecting to the AP for management and information on the system status LEDs. ◆ Appendix A - Troubleshooting — Information for troubleshooting AP installation and operation. Related This guide focuses on AP hardware and installation, it does not cover software Documentation configuration of the AP.
-
Page 7: Table Of Contents
Contents Warranty and Product Registration How to Use This Guide Contents Figures Tables 1 Access Point Overview Hardware Description Key Hardware Components Key Technical Specifications 2 Installation Overview Package Contents System Configuration AP Installation Tasks 3 AP Chassis General Installation Guidelines Antenna Position Ethernet Cabling Radio Interference... - Page 8 Contents How to Ground the Unit How to Install the Power Injector 5 Network Connections Understanding the Network Status LEDs How to Connect to Radio Interfaces How to Connect to the RJ-45 Port Copper Cabling Guidelines 10/100BASE-TX Pin Assignments 1000BASE-T Pin Assignments Connection Procedure Grounding the Ethernet Cable 6 AP Management...
-
Page 9: Figures
Figures Figure 1: SMC2891W-AN Outdoor Access Point Figure 2: Bottom Panel View Figure 3: Top Panel View (SMC2891W-AN) Figure 4: Power Injector Module Figure 5: System Configuration Figure 6: Installing the AP on a Pole Figure 7: Making a Connection to the RJ-45 Port... -
Page 10: Tables
Tables Table 1: Key Technical Specifications Table 2: Power Injector Module Specifications Table 3: Power Injector Module Status LED Table 4: 10/100BASE-TX MDI and MDI-X Port Pinouts Table 5: 1000BASE-T MDI and MDI-X Port Pinouts Table 6: Console Cable Wiring Table 7: Troubleshooting Chart –... -
Page 11: Access Point Overview

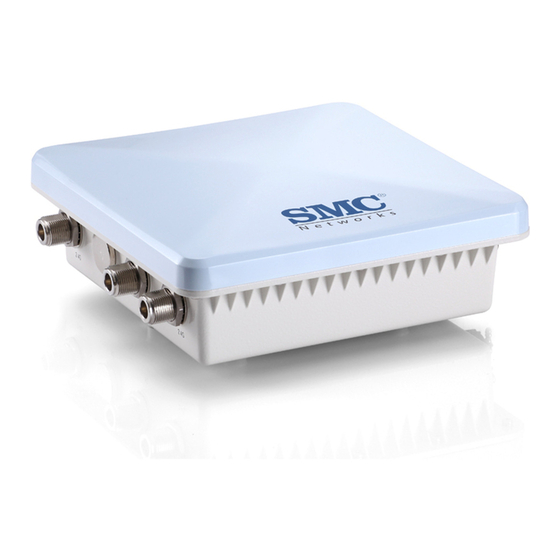

◆ “Key Technical Specifications” on page 15 Hardware Description The SMC2890W-AN/SMC2891W-AN outdoor access point (AP) is built with leading- edge technology to deliver reliable high-performance connectivity for your data network. The SMC2890W-AN/SMC2891W-AN is a dual-band IEEE 802.a/b/g/n AP that is designed to deliver high-performance wireless services for clients or to provide bridge links between remote LANs. -
Page 12: Key Hardware Components
Console Port with Waterproof Cover Water-Tight Test Point (DO NOT REMOVE) Back Panel System LEDs (Not Visible in Figure) Built-in 5 GHz Antenna The SMC2891W-AN AP includes an integrated 5 GHz antenna. For more information, see “How to Align Antennas” on page Console Port The port labeled “Console”... -
Page 13: Figure 3: Top Panel View (Smc2891W-An)
The SMC2890W-AN AP unit includes four external antenna connectors, two are for the 2.4 GHz radio and two for the 5 GHz radio. The SMC2891W-AN AP unit includes three external antenna connectors, two are for the 2.4 GHz radio and one for the 5 GHz radio (the unit also includes a built-in 5 GHz antenna). -
Page 14: Figure 4: Power Injector Module
Chapter 1 | Access Point Overview Hardware Description Pole Mounting Bracket The included Mounting Bracket Kit can be used to mount the unit on a 1.5 to 6 inch diameter pole, or to part of a radio mast or tower structure. For more information, “How to Mount the Unit”... -
Page 15: Key Technical Specifications
External Antennas 4 N-Type female connecters (50 Ohms), 2x2 MIMO for 2.4 and 5 GHz Integrated Antenna 12 dBi @ 5 GHz, panel type, horizontal polarization (SMC2891W-AN only) Radio Frequencies 2400 ~ 2483.5 MHz 2412 ~ 2472 MHz 5745 ~ 5825 MHz (China) -
Page 16: Installation Overview
Package Contents After unpacking the AP, check the contents to be sure you have received all the components. ◆ SMC2890W-AN or SMC2891W-AN Outdoor Access Point ◆ Bracket Mounting Kit for pole mounting ◆ PoE Power Injector with power cord—either US, Continental Europe or UK ◆... -
Page 17: System Configuration
Chapter 2 | Installation Overview System Configuration System Configuration At each location where a unit is installed it must be connected to the local network, either by using the power injector module, or by a direct connection to an IEEE 802.3at-compliant LAN switch. The following figure illustrates the system component connections. -
Page 18: Ap Installation Tasks
Chapter 2 | Installation Overview AP Installation Tasks AP Installation Tasks Follow these tasks to install the AP in your network. For full details on each task, go to the relevant chapter or section by clicking on the link. Task 1 Unpack package and check contents Unpack your AP and check the package contents to be sure you have received all the items. -
Page 19: Figure 7: Making A Connection To The Rj-45 Port
Chapter 2 | Installation Overview AP Installation Tasks Task 3 Connect Cables Connect an Ethernet cable and a grounding wire to the unit. Use outdoor-rated straight-through Ethernet cable to connect to the RJ-45 port for your network connection. Go to the chapter “Network Connections”... -
Page 20: Figure 8: Connecting Ac Power
Chapter 2 | Installation Overview AP Installation Tasks Figure 8: Connecting AC Power Connect the AC power cord to a nearby AC power source. Connect Ethernet cable from the “DATA IN” port to a LAN switch. Connect straight-through Ethernet cable from the AP to the “DATA & POWER OUT” port. Task 5 Verify AP Operation Verify basic AP operation by checking the system LEDs. -
Page 21: Figure 10: Console Port
Chapter 2 | Installation Overview AP Installation Tasks Task 6 Make Initial Configuration Changes At this point you may need to make a few basic configuration changes to the AP so that it is compatible with your network. It is suggested to connect to the AP console port to perform this task. - Page 22 Chapter 2 | Installation Overview AP Installation Tasks – 22 –...
-
Page 23: Ap Chassis
AP Chassis The AP includes its own bracket kit for mounting the unit to a 1.5 to 6 inch diameter pole or part of a radio mast or tower structure. Before continuing with AP installation, first review the general guidelines and requirements in this chapter. -
Page 24: Ethernet Cabling
Chapter 3 | AP Chassis General Installation Guidelines Ethernet Cabling From the intended AP location, plan a cable route from the unit outdoors to the power injector module indoors. Consider these guidelines: ◆ The total Ethernet cable length should never be longer than 100 m (328 ft). ◆... -
Page 25: How To Mount The Unit
Chapter 3 | AP Chassis How to Mount the Unit How to Mount the Unit The AP can be mounted in the following ways using the included mounting bracket: ◆ To a 1.5 to 6 inch diameter pole The AP’s mounting bracket has two main parts. One part that can be secured to a pole using two steel-band clamps, and another part that attaches directly to the AP. -
Page 26: Figure 12: Attach Bracket To Ap
Chapter 3 | AP Chassis How to Mount the Unit Figure 12: Attach Bracket to AP Bracket Mount Points Supplied Bracket Mount Screws Square Mounting Bracket Part Attach the AP with its mounting plate to the bracket already fixed to the pole. Use the included long bolt to secure the AP to the pole bracket. -
Page 27: How To Connect External Antennas
Two antennas are required for 2.4 GHz operation and two can be used for 5 GHz operation. These antennas are not included in the AP package. The SMC2891W-AN unit includes an integrated high-gain antenna for 5 GHz operation. External antennas are not required for 5 GHz operation only for 2.4 GHz operation. -
Page 28: How To Align Antennas
SMC2891W-AN units must be aligned with a central SMC2890W-AN unit that may be using external omnidirectional or sector antennas. The alignment process is the same as in point-to-point links, but only the SMC2891W-AN units require the adjustment for proper alignment. -
Page 29: Power And Grounding
Power and Grounding This chapter focuses on how to power-on the AP. The AP can be powered using the included PoE Power Injector or by a direct connection to a PoE LAN switch. Connecting the AP to ground is also covered. This chapter includes these sections: ◆... -
Page 30: Table 2: Power Injector Module Specifications
Chapter 4 | Power and Grounding Power Injector Module Table 2: Power Injector Module Specifications Item Description AC Input 100~240 VAC, 50/60 Hz, 0.5 A DC Output 48 VDC, 0.35 A Output Power 16.8 W maximum DATA IN Port 10/100/1000BASE-T, RJ-45 socket DATA &... -
Page 31: How To Ground The Unit
Chapter 4 | Power and Grounding How to Ground the Unit How to Ground the Unit When connecting a ground wire to the AP, use the grounding screw on the unit. Be sure to use #14 AWG or larger copper core ground wire. Caution: Be sure that grounding is available and that it meets local and national electrical codes. -
Page 32: How To Install The Power Injector
Chapter 4 | Power and Grounding How to Install the Power Injector Note: Use cable strips to secure all cables to the pole. How to Install the Power Injector The power injector can be installed indoors on any horizontal surface, such as a desktop or shelf, or on a wall. - Page 33 Chapter 4 | Power and Grounding How to Install the Power Injector Insert the power cable plug into the standard AC socket on the power injector and the other end into a grounded, 3-pin socket, AC power source. Note: For International use, you may need to change the AC line cord. You must use a line cord set that has been approved for the socket type in your country.
- Page 34 Chapter 4 | Power and Grounding How to Install the Power Injector – 34 –...
-
Page 35: Network Connections
Network Connections This chapter focuses on making connections to the AP’s network interfaces and details on network cable specifications. The AP features one 1000BASE-T RJ-45 port as well as wireless interfaces. The sections that follow describe the network interfaces. This chapter includes these sections: ◆... -
Page 36: Understanding The Network Status Leds
Chapter 5 | Network Connections Understanding the Network Status LEDs Understanding the Network Status LEDs The AP includes LED indicators to indicate network link status and activity. The LEDs are shown below and are described in the following table. Figure 18: Network Status LEDs 5 GHz Link/Activity LED LAN Link/Activity LED 2.4 GHz Link/Activity LED... -
Page 37: How To Connect To The Rj-45 Port
Chapter 5 | Network Connections How to Connect to the RJ-45 Port How to Connect to the RJ-45 Port The connection between the AP’s RJ-45 port and the PoE power injector requires outdoor-rated Category 5E or better Ethernet cable with RJ-45 plugs on each end. The length of the Ethernet cable should be less than 100 meters (328 ft). -
Page 38: 1000Base-T Pin Assignments
Chapter 5 | Network Connections How to Connect to the RJ-45 Port Table 4: 10/100BASE-TX MDI and MDI-X Port Pinouts MDI-X Signal Name MDI Signal Name Transmit Data plus (TD+) Receive Data plus (RD+) -52V power (Negative V GND (Positive V port port Transmit Data minus (TD-) -
Page 39: Connection Procedure
Chapter 5 | Network Connections How to Connect to the RJ-45 Port Table 5: 1000BASE-T MDI and MDI-X Port Pinouts MDI Signal Name MDI-X Signal Name Bi-directional Pair A Plus (BI_DA+) Bi-directional Pair B Plus (BI_DB+) -52V power (Negative V GND (Positive V port port... -
Page 40: Figure 21: Waterproof Rj-45 Port Cover
Chapter 5 | Network Connections How to Connect to the RJ-45 Port Figure 21: Waterproof RJ-45 Port Cover Rubber RJ-45 Port Seal Outer Screw-on Cover Inner Plastic RJ-45 Plug Cover Screw-on Cable Clamp Inner Rubber Cable Seal Peal-off the adhesive backing on the rubber RJ-45 port seal and stick it on the end of the plastic RJ-45 plug cover. -
Page 41: Grounding The Ethernet Cable
Chapter 5 | Network Connections How to Connect to the RJ-45 Port Figure 22: Making a Connection to the RJ-45 Port RJ-45 Plug on Ethernet Cable Waterproof RJ-45 Port Cover Assembly Seal the PoE port connector using tar seal or weatherproof tape for extra protection against rain and moisture. -
Page 42: Figure 23: Outdoor-Rated Ethernet Cable Drain Wire
Chapter 5 | Network Connections How to Connect to the RJ-45 Port Figure 23: Outdoor-Rated Ethernet Cable Drain Wire Drain Wire Attach a grounding cable to the drain wire and then connect it to protective earth. Use weatherproof tape to cover and seal the attachment area on the Ethernet cable. -
Page 43: Ap Management
AP Management The AP includes a management agent that allows you to configure or monitor the AP using its embedded management software. To manage the AP, you can make a direct connection to the console port (out-of-band), or you can manage it through a network connection (in-band) using Telnet, Secure Shell (SSH), a web browser, or SNMP-based network management software. -
Page 44: Understanding The System Status Leds
Chapter 6 | AP Management Understanding the System Status LEDs Understanding the System Status LEDs The AP includes LED indicators that indicate system and port status. The LEDs are shown below and are described in the following table. Figure 24: System Status LEDs 5 GHz Link/Activity LED LAN Link/Activity LED 2.4 GHz Link/Activity LED... -
Page 45: How To Connect To The Console Port
Chapter 6 | AP Management How to Connect to the Console Port How to Connect to the Console Port The RJ-45 Console port on the AP is used to connect to the AP for out-of-band console configuration. The console device can be a PC or workstation running a VT- 100 terminal emulator, or a VT-100 terminal. -
Page 46: Figure 26: Console Port Connection
Chapter 6 | AP Management How to Connect to the Console Port Figure 26: Console Port Connection RJ-45 Console Port Console Cable Waterproof Port Cover Follow these steps to connect to the Console port: Unscrew the waterproof protective cap on the AP’s Console port. Attach the DB-9 end of the included serial cable to a DB-9 COM port connector on a management PC. -
Page 47: A Troubleshooting
Troubleshooting Diagnosing LED Indicators Table 7: Troubleshooting Chart Symptom Action ◆ Power LED is Off Check connections between the PoE Power Injector, the power cord and the wall outlet. ◆ Contact your dealer for assistance. ◆ LAN LED is Off Verify that the AP and attached PoE Power Injector are powered ◆... -
Page 48: Installation
Chapter A | Troubleshooting Installation Installation Verify that all system components have been properly installed. If one or more components appear to be malfunctioning (such as the power cord or network cabling), test them in an alternate environment where you are sure that all the other components are functioning properly. -
Page 49: Out-Of-Band Access
Chapter A | Troubleshooting Out-of-Band Access Out-of-Band Access If you cannot access the on-board configuration program via a serial port connection: ◆ Be sure you have set the terminal emulator program to VT100 compatible, 8 data bits, 1 stop bit, no parity and 115200 Baud Rate. ◆... -
Page 50: Index
Index Numerics 10/100 pin assignments hardware errors 1000BASE-T pin assignments hardware overview hardware specifications humidity specifications AC power connection antenna position antennas, external in-band access indicators, LED injector module installation tasks basic installation tasks installation troubleshooting baud rate, console interference, radio bracket kit introduction cable grounding... - Page 51 Index package contents pin assignments console port RJ-45 port planning guidelines PoE injector module PoE port pole mount bracket pole mounting port cover, weatherproof port LEDs position of AP POST failure power injector power LED power problems product overview radio interfaces, connecting radio interference reset.AP RJ-45 connection...
- Page 52 Index – 52 –...
