CB40E Painted panel installation
Inner Panels - CB40E
CB40E INNER PANELS
The CB40E can be equipped with optional steel inner panels.
CB40E - 3 outer panels and 2 inner panels.
Turn off unit and allow to cool to room temperature. Remove the safety
glass and irebox glass — see manual for instructions

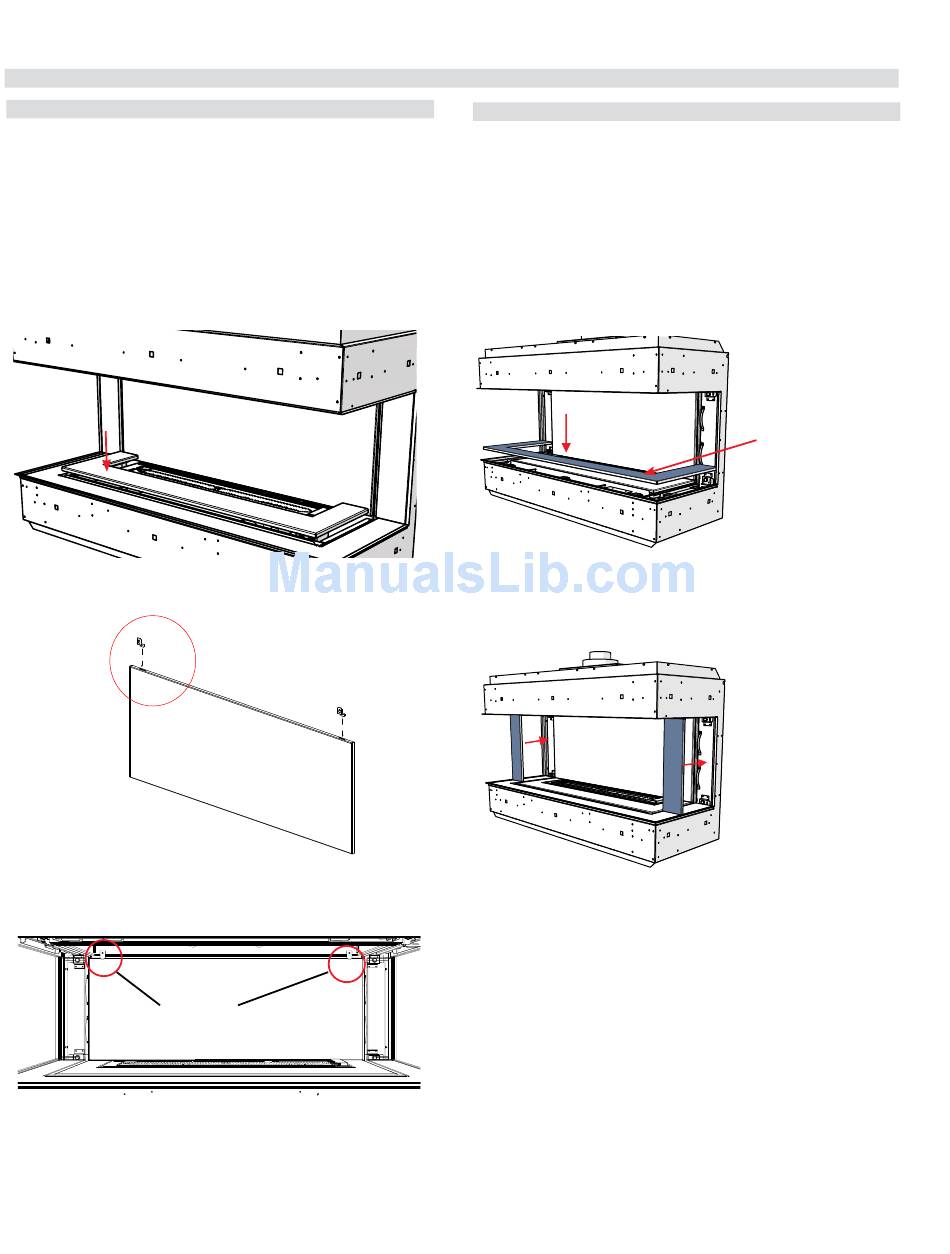

1. Install inner lower base panel.
2. Install panel clips into the slots at the top of the panel as shown.
3. Manoeuvre in back panel to the back wall of the unit—secure in place
with 2 panel clips and 2 screws.
Panel Clips
4. Reverse steps to remove panels.
Outer Panels - CB40E
CB40E OUTER PANELS
Note: Install inner safety glass prior to installation of outer panels-see
instructions in manual
1. Attach Regency logo to the right hand side of outer front panel. The
magnets will be positioned under the outer front base panel to secure
the logo. The logo should be about 3 inches from the right hand corner
of the outer base. Install outer front base panel.
Outer base panel install
2. Install side panel - the side panel is secured in place by existing
magnets in the unit.
Outer side panel install
3. Install outer safety glass.
4. Reverse steps to remove panels.
installation
Location of
Regency Logo
City Series |
71
