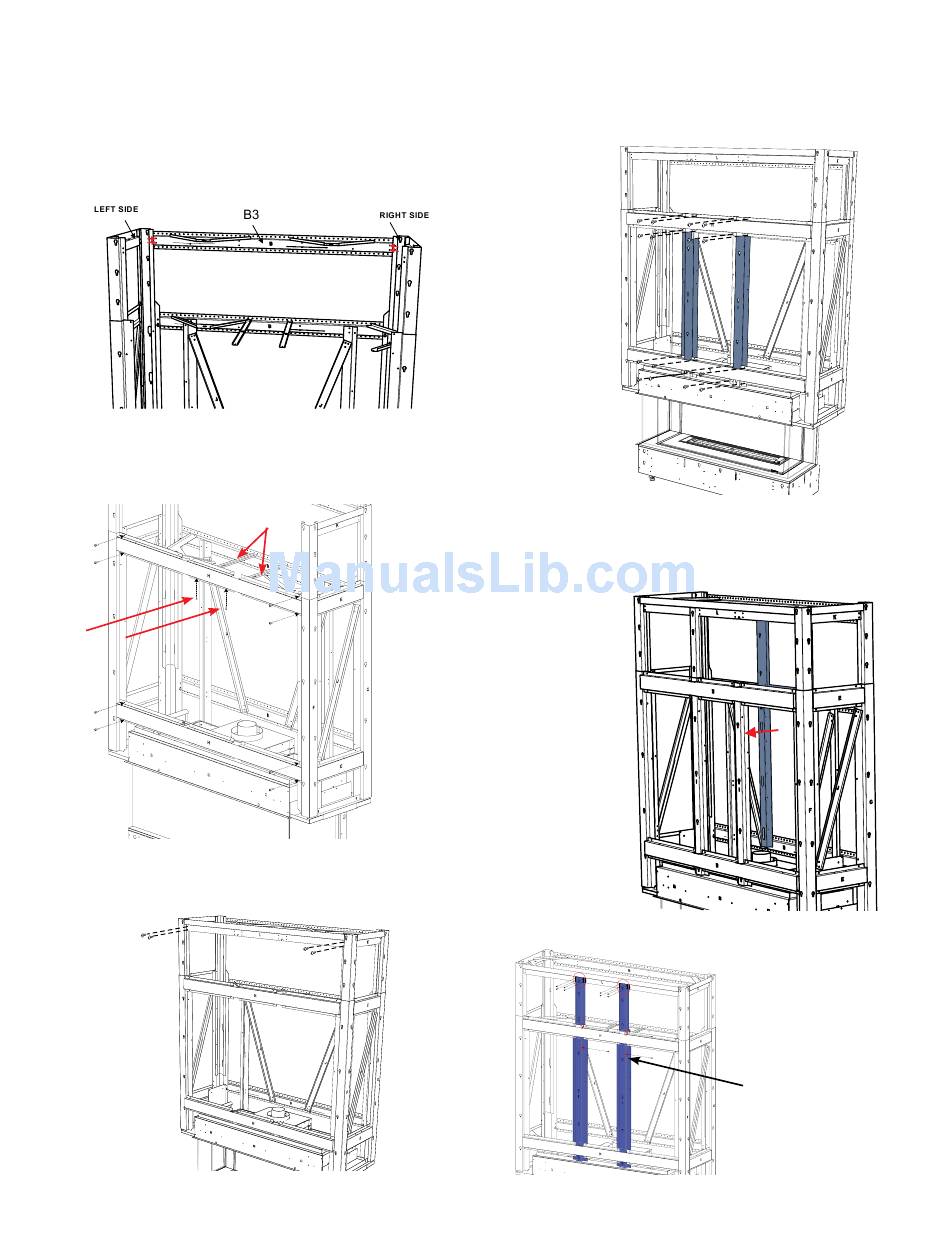

12. Attach Part B3 to extended LEFT and RIGHT sides with two screws
on each side (from the front).
13. Secure B3 to the wall studs with 2-1/2"-3" wood screws.
Use 8 screws and secure to 4 studs minimum.
Attach Part N (x2) to Part B3
14. Attach Part H (x2) to the front of the LEFT and RIGHT sides with 2
screws on each side (4 screws total for each part). Secure Part Q to
top Part H with 1 screw each.
Attach Part
Q to Part H
Attach Part H (x2) to Front of LEFT + RIGHT sides
15. Attach Part L to the front of the LEFT and RIGHT sides with 2 screws
on each side.
Attach Part L (x2) to LEFT and RIGHT sides
22 | City Series
Part Q
16. Position Part I (x2) to fi t in the indent in Part H (x2) secure each Part
I with 8 screws each - 4 top/4 bottom.
Attach Part I (x2) to Part H1 & H2
17. Position Part M (x2) to nest in behind Part I (x2) and secure to Part
I with 2 screws each and Part L with 4 screws each.
Attach Part M (x2) to Part L
Screw holes in Part I
located on the side
