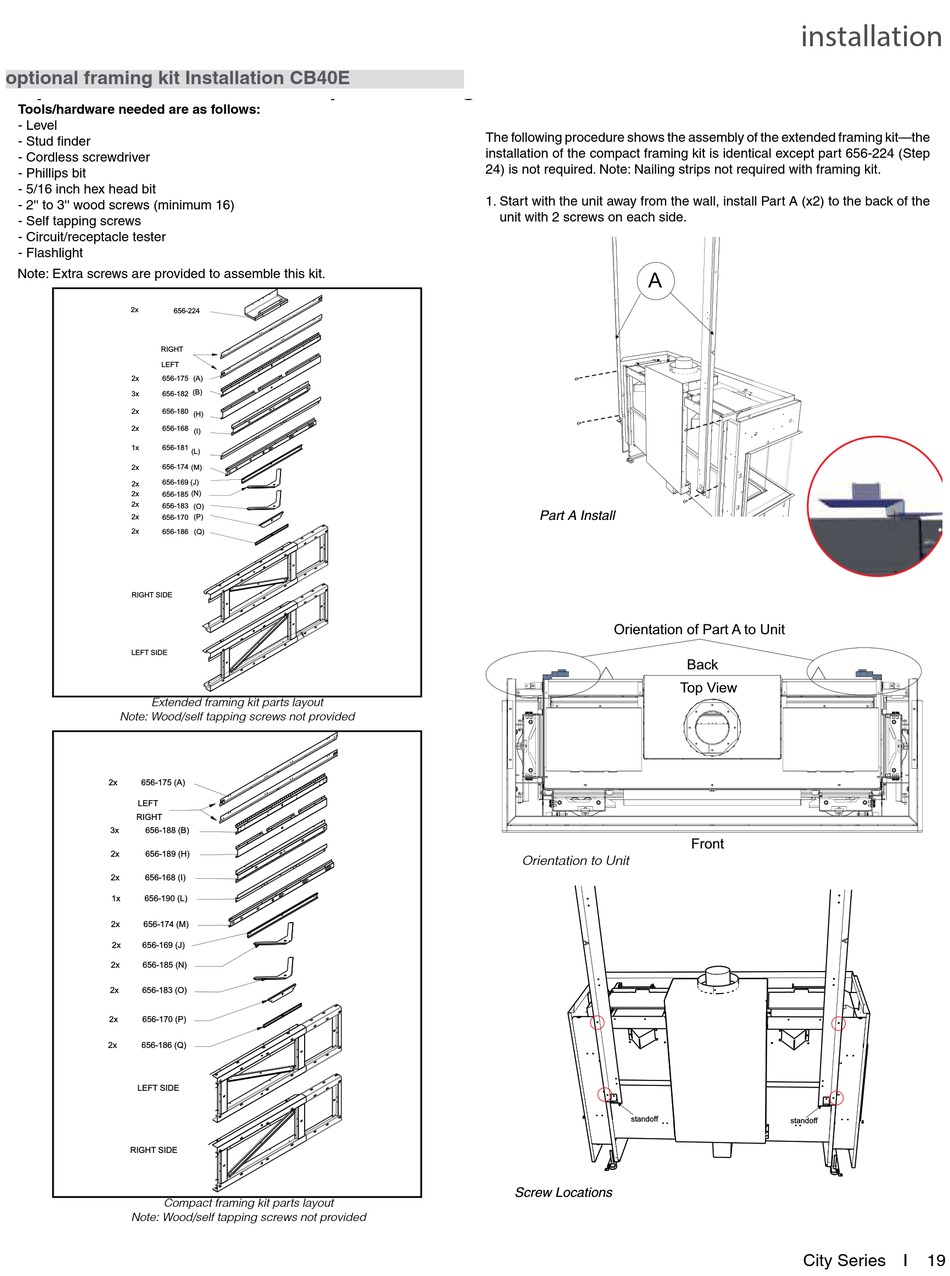

optional framing kit Installation CB40E

Optional Extended and Compact Framing Kits
Tools/hardware needed are as follows:
- Level
- Stud fi nder
- Cordless screwdriver
- Phillips bit
- 5/16 inch hex head bit
- 2'' to 3'' wood screws (minimum 16)
- Self tapping screws
- Circuit/receptacle tester
- Flashlight
Note: Extra screws are provided to assemble this kit.
Extended framing kit parts layout
Note: Wood/self tapping screws not provided
Compact framing kit parts layout
Note: Wood/self tapping screws not provided
The following procedure shows the assembly of the extended framing kit—the
installation of the compact framing kit is identical except part 656-224 (Step
24) is not required. Note: Nailing strips not required with framing kit.
1. Start with the unit away from the wall, install Part A (x2) to the back of the
unit with 2 screws on each side.
Part A Install
Orientation to Unit
Screw Locations
installation
City Series | 19
